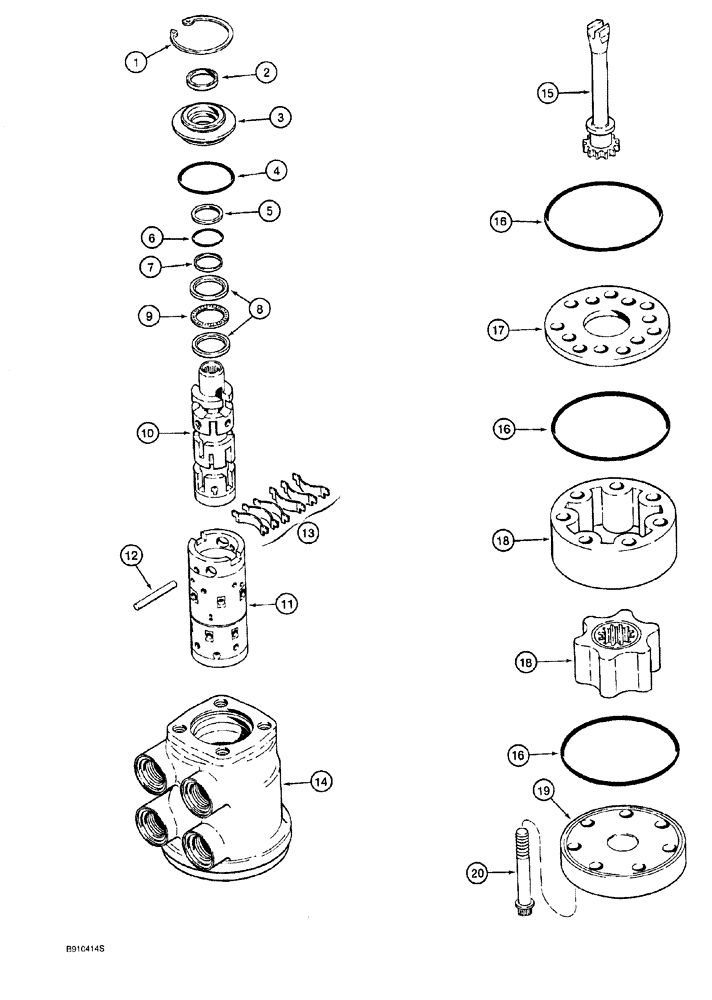

Запчасти Case 921 (5-008) - STEERING CONTROL VALVE ASSEMBLY (05) - STEERING

L128073

VALVE

ASSY., steering control, see Figure 5-002 for mounting, Includes: Ref. 1 - 20

1шт.

1

D77388

SNAP RING,2.375", Int, #237

Ring, Snap, , bushing 2.375", Int, #237

1шт.

2

697494R91

OIL SEAL

1 inch ID

1шт.

3

50-2701T1

RETAINER

spool

1шт.

4

50-2705T1

O-RING

retainer

1шт.

5

50-2703T1

BACK-UP RING

RING backup, seal

1шт.

6

238-5121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

1шт.

7

N13313

SEAL,25.1mm ID x 26.7mm OD x 2.6mm Thk

teflon, spool, inner

1шт.

8

D82804

RACE

thrust, bearing

2шт.

9

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

Needle

1шт.

S302006

TESTER

CONTROL ASSY., valve, Includes: Ref. 10 - 14

1шт.

10

NSS

NOT SOLD SEPARAT

SPOOL control assy.

1шт.

11

NSS

NOT SOLD SEPARAT

SLEEVE control assy.

1шт.

12

S301999

PIN

sleeve

1шт.

13

N14233

KIT

spring, set of six, spool

1шт.

14

NSS

NOT SOLD SEPARAT

BODY control assy.

1шт.

15

50-2706T1

SHAFT

drive, valve

1шт.

16

50-2708T1

O-RING

cover and plate

3шт.

17

50-2707T1

WEAR PLATE

spacer

1шт.

18

50-2990T91

ROTOR ASSY.

GEROTOR, set, matched

1шт.

19

50-2710T1

CAP

end, steering valve

1шт.

20

S302004

BOLT

12 point, special

7шт.
