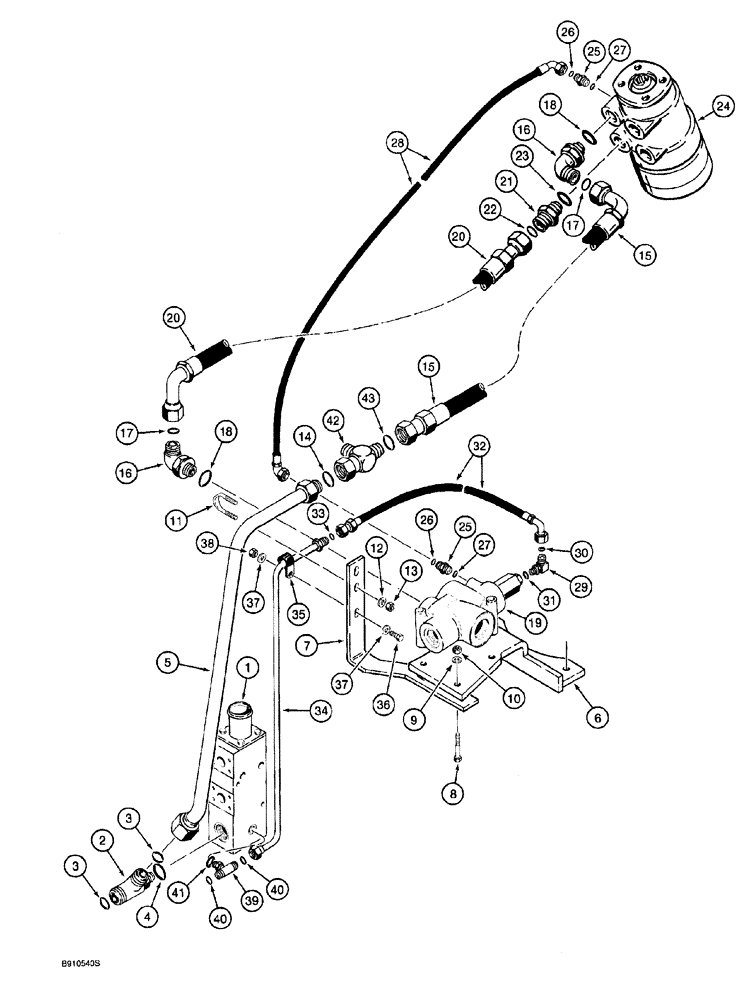

Запчасти Case 921 (5-006) - STEERING HYDRAULIC CIRCUIT, PRESSURE AND RETURN LINES, COOLER BYPASS VALVE TO STEERING CONTROL VALVE (05) - STEERING

1

L127968

VALVE BODY

ASSY., cooler bypass, see Figure 8-006, see Figure 8-018 for mounting

1шт.

2

201-407

TEE,1 7/16"-12 x 1 5/16"-12 Run, ORFS

1-7/16-12 face seal branch x face seal x 1-5/16-12 inch adj O-ring boss, Includes: Ref. 3, 4

1шт.

3

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face End

2шт.

4

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss end

1шт.

5

L128309

TUBE,25.4 mm OD

cooler bypass valve to steering control valve hose

1шт.

6

L129296

SUPPORT

BRACKET mounting, flow control valve, see Figure 5-004 for mounting

1шт.

7

L128308

SUPPORT

BRACKET mounting, tube

1шт.

8

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

9

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

1шт.

10

231-1448

NUT,1/2"-13, GB

hex, self-locking, NC

1шт.

11

L78947

U-BOLT

tube retaining

1шт.

12

396-41034

WASHER,8.74mm ID x 25.4mm OD x 2.49mm Thk

flat, hardened, 11/32 x 1 x 3/32 inch

2шт.

13

231-1445

NUT,5/16"-18, GB

2шт.

14

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

15

L130064

HOSE ASSY.

17-5/16 inch (439 mm) long, tube to steering control valve

1шт.

16

201-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

90°, 1-3/16-12 face seal x 1-1/6-12 inch adj O-ring boss, Includes: Ref. 17, 18

2шт.

17

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face end

1шт.

18

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss end

1шт.

19

L128074

VALVE

ASSY., flow control, see Figure 5-014, see Figure 5-004 for mounting

1шт.

20

L128449

HOSE ASSY.

21-1/16 inch (535 mm) long, flow control valve to steering control valve

1шт.

21

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Includes Ref. 22, 23

1шт.

22

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face end

1шт.

23

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss end

1шт.

24

L128073

VALVE

ASSY., steering control, see Figure 5-008, see Figure 5-002 for mounting

1шт.

25

201-100

HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

ADAPTER straight, 9/16-18 face seal x 7/16-20 inch O-ring boss, Includes: Ref. 26, 27

2шт.

26

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face end

1шт.

27

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Boss end

1шт.

28

L128452

HOSE ASSY.

22-7/8 inch (580 mm) long, load sensing, flow control valve to steering control valve

1шт.

29

201-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

90°, 9/16-18 face seal x 7/16-20 inch adj O-ring boss, Includes: Ref. 30, 31

1шт.

30

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face end

1шт.

31

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Boss end

1шт.

32

L128454

HOSE ASSY.

15-3/4 inch (400 mm) long, flow control valve to tube at cooler bypass valve

1шт.

33

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

34

L128363

TUBE,9.52 mm OD x 638, 166 mm L

flow control valve drain

1шт.

35

S64985

CLAMP

P-type, drain tube retaining

1шт.

36

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

37

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

38

231-1446

NUT,3/8" - 16, Gr 5

1шт.

39

201-401

TEE,11/16"-16 x 9/16"-18 Br, ORFS

9/16-18 adj O-ring boss branch x 11/16-16 inch face seal x face seal, Includes: Ref. 40, 41

1шт.

40

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end

2шт.

41

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss end

1шт.

42

201-417

TEE,1-3/16" - 12 JIC x 1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS

1-3/16-12 inch face seal branch x face seal x swivel face seal, Includes: Ref. 43

1шт.

43

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.
