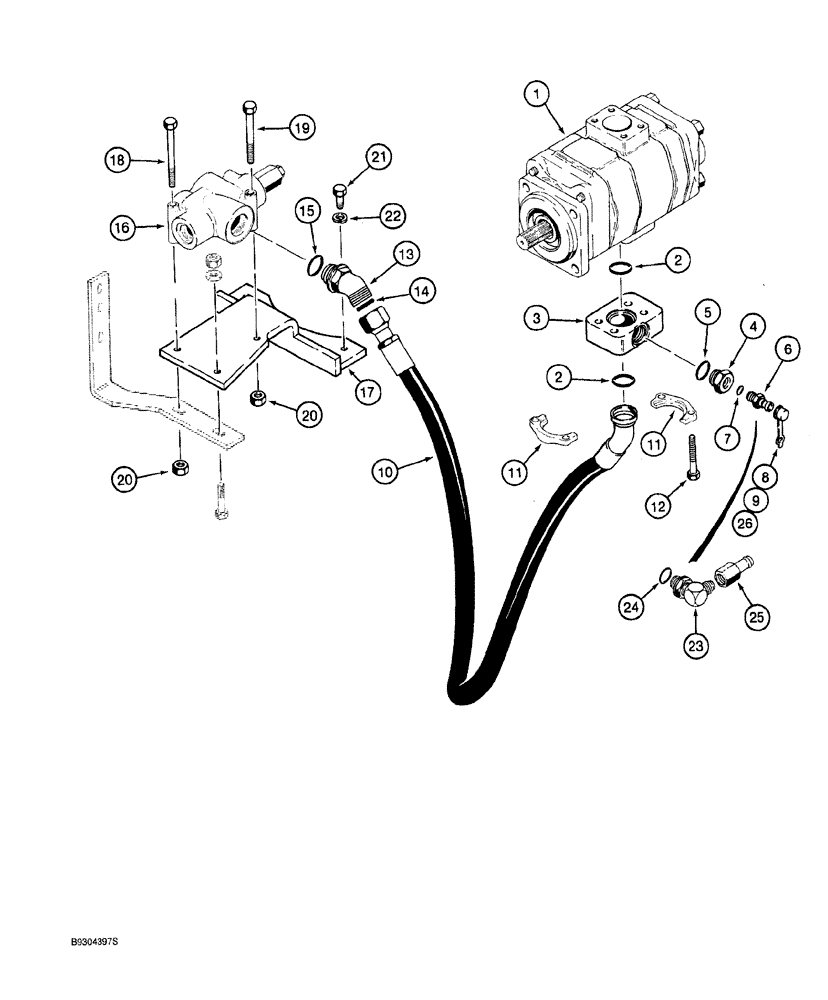

Запчасти Case 921 (5-004) - STEERING HYDRAULIC CIRCUIT, PRESSURE AND RETURN LINES, PUMP TO FLOW CONTROL VALVE (05) - STEERING

1

L127716

PUMP, HYDRAULIC

ASSY., equipment and steering, see Figure 8-008, see Figure 8-010 for mounting

1шт.

2

238-6225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

2шт.

3

L128347

ADAPTER

, Serial Range: hose-pump

1шт.

4

A176161

ADAPTER

straight, special, Includes: Ref. 5

1шт.

5

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

S243647

COUPLING

ASSY., quick disconnect, Includes: Ref. 6 - 9, Serial Range: -JAK0026022

1шт.

6

NSS

NOT SOLD SEPARAT

COUPLING quick disconnect

1шт.

8

S301201

CAP

dust, Aero-Quip stamped on coupling, if used

1шт.

9

H434163

DUST CAP

PD361 stamped on coupling, if used

1шт.

10

L129046

HOSE ASSY.

51-3/16 inch (1300 mm) long, pump to flow control valve

1шт.

11

A14157

FLANGE

CLAMP split

2шт.

12

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

hex, 1/2NC x 3 inch

4шт.

13

201-354

ELBOW,45 Degree Elbow, 1-11/16" - 12 Male ORFS x 1-5/8" - 12 Male ORB

45°, 1-11/16-12 face seal x 1-5/8-12 inch adj O-ring boss, Includes: Ref. 14, 15

1шт.

14

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Face end

1шт.

15

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

Boss end

1шт.

16

L128074

VALVE

ASSY., flow control, see Figure 5-014, additional mounting brackets, Figure 5-006

1шт.

17

L129296

SUPPORT

BRACKET mounting, flow control valve

1шт.

18

413-876

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

BOLT hex, 1/2 NC x 4-3/4 inch

1шт.

19

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

hex, 1/2 NC x 4-1/2 inch

1шт.

20

231-1448

NUT,1/2"-13, GB

hex, self-locking, NC

2шт.

21

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

23

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90°, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 24, Start Serial: JAK0026022

1шт.

25

101792A1

COUPLING

quick disconnect, Start Serial: JAK0026022

1шт.

26

H434163

DUST CAP

Not included with coupling, Start Serial: JAK0026022

1шт.

245878A1

SET OF PARTS

KIT, for installing vane pump, for units with standard steering

1шт.

245879A1

SET OF PARTS

KIT, for installing vane pump, for units with secondary steering

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
