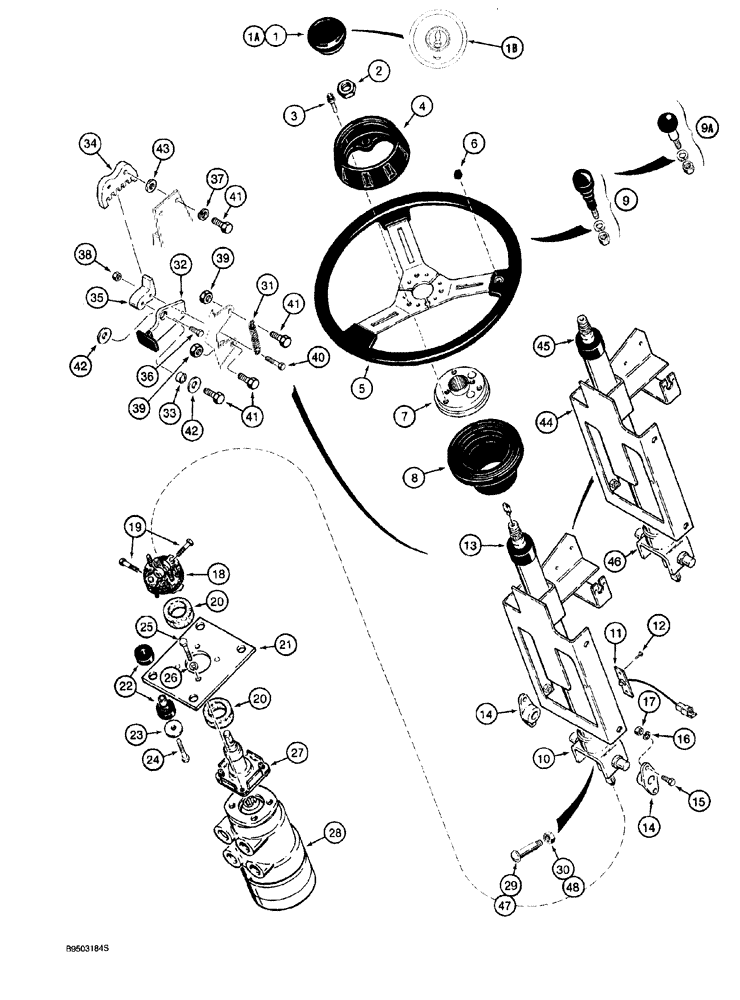

Запчасти Case 921 (5-002) - STEERING WHEEL AND COLUMN, INCLUDES TILT LATCH (05) - STEERING

1

1339877C2

BUTTON

horn, Includes: Ref. 1B, used with 1344401C4 steering column, Serial Range: -JEE0042075

1шт.

1a

195277A1

PLUG

CAP ASSY., center, steering wheel, Includes: Ref. 1B, used with 195273A1 steering column, Start Serial: JEE0042075

1шт.

1b

A180055

CAP ASSY.

INSERT steering wheel, Case Globe and Eagle

1шт.

2

F19646

LOCK NUT,13/16"-20, Thin

lock, steering wheel retaining

1шт.

L128095

WHEEL (STEERING)

ASSY., Includes: Ref. 3 - 8

1шт.

3

S301434

SCREW

special

3шт.

4

S301399

CAP

steering wheel

1шт.

5

D147465

STEERING WHEEL

not serviced separately, for service order D148204 steering wheel or L128095 steering wheel assembly

1шт.

6

S301435

PLUG

steering wheel, remove to use spinner knob

1шт.

7

S301401

HUB

steering wheel

1шт.

8

S301400

BOOT

steering wheel

1шт.

9

L127996

KNOB

spinner, steering wheel, no longer available, order Ref. 9A, 97400C1, if used

1шт.

9a

97400C1

HANDLE

KNOB spinner, steering wheel, if used

1шт.

195273A1

STEERING COLUMN

ASSY., with brush and horn wires, Replaces: 1344401C4, see 195219A1 horn modification kit, if used, Includes: Ref. 10 - 13, Serial Range: -JEE0042075

1шт.

The new column, 195273A1, does not have provisions in it for the horn like the old column, 1344401C4. Under the new setup, the horn switch is integrated into the turn signal 1987555C1 shown on Figure 4-005. Per TSG, the dealer could order the 1987555C1 to change to the new style. They advised you would run the turn signal wires off the switch to the old pedestal harness. For the horn, they would have to get some additional length of wire and run between the horn and the horn wires coming off the 1987555C

1шт.

10

NSS

NOT SOLD SEPARAT

COLUMN steering

1шт.

11

1987236C1

BRUSH ASSY.

horn

1шт.

12

261-5454

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/4"

self-tapping, pan Phillips, No. 10 NC x 1/4 inch

2шт.

13

A49647

CAP

COVER column, top

1шт.

14

A77310

SUPPORT,0.754" ID x 1.375" OD x 0.81"

BEARING

2шт.

15

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

16

492-11038

LOCK WASHER,3/8"

4шт.

17

425-106

NUT,3/8"-16, Cl 5

4шт.

18

L100096

ISOLATOR

isolator

1шт.

19

414-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

2шт.

20

A145915

SEAL,41.148mm ID x 57.15mm OD x 12.7mm Thk

floor plate and steering control valve

2шт.

21

1344479C1

LARGE PLATE

PLATE, LARGE floor, steering alignment

1шт.

22

A141515

ISOLATOR

two piece, includes both halves

4шт.

23

495-81150

WASHER,0.44" ID x 1.25" OD x 0.07" Thk

flat, 7/16 x 1-1/4 x 1/16 inch

4шт.

24

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

25

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

26

492-11038

LOCK WASHER,3/8"

4шт.

27

L100706

CAP

COLUMN ASSY., steering, lower, individual components are not serviced separately, no longer available, order S301818

1шт.

27a

S301818

CAP

COLUMN ASSY., lower, individual components are not serviced separately

1шт.

28

L128073

VALVE

ASSY., steering control, see Figure 5-008

1шт.

29

L128176

STEP BOLT

shoulder, special, replaces rivet in steering column U-joint for service, use with Ref. 30

1шт.

30

L128177

LOCK NUT

self-locking, special, use with Ref. 29

1шт.

31

A163012

SPRING

tilt latch

1шт.

32

1990517C1

LEVER

tilt latch

1шт.

33

1990519C1

SPACER

BUSHING lever

1шт.

34

1969906C3

LATCH ASSY.

RACK tilt

1шт.

35

1969903C4

LATCH ASSY.

tooth

1шт.

36

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

37

492-11038

LOCK WASHER,3/8"

2шт.

38

425-144

JAM NUT,Jam, 1/4"-20, G5

1шт.

39

425-146

JAM NUT,3/8" - 16, Gr 5

2шт.

40

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

1шт.

41

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

5шт.

42

496-81024

WASHER,0.41" ID x 1.25" OD x 0.07" Thk

flat, hardened, 13/32 x 1-1/4 x 1/16 inch

2шт.

43

495-81137

WASHER,13/32" x 1" x .224"

flat, 13/32 x 1 x 15/64 inch

2шт.

195273A1

STEERING COLUMN

ASSY., without brush and horn wires, see 195219A1 horn switch modification kit, if needed, Includes: Ref. 44 - 46, Start Serial: JEE0042075

1шт.

44

NSS

NOT SOLD SEPARAT

COLUMN steering, order 195273A1

1шт.

45

A49647

CAP

COVER column

1шт.

46

194040A1

UNIVERSAL JOINT

ASSY., steering column, Includes: Ref. 47, 48

1шт.

47

L128176

STEP BOLT

shoulder, special

1шт.

48

L128177

LOCK NUT

self-locking, special

1шт.

195219A1

KIT

horn switch modification, used with 1546475C1 pedestal harness with three connectors at combination turn signal/horn switch to activate horn switch on combination switch, which replaces horn button in center of steering wheel

1шт.

Includes: Ref. 1A on this figure, Ref. 31 - 33 on Figure 4-004, Ref. 25 on Figure 9-080 and an instruction sheet

1шт.

D148204

WHEEL (STEERING)

also includes spacer ring, steering wheel hub, (3) screws and (3) washers, 16 inch, 3 spoke, not shown

1шт.
