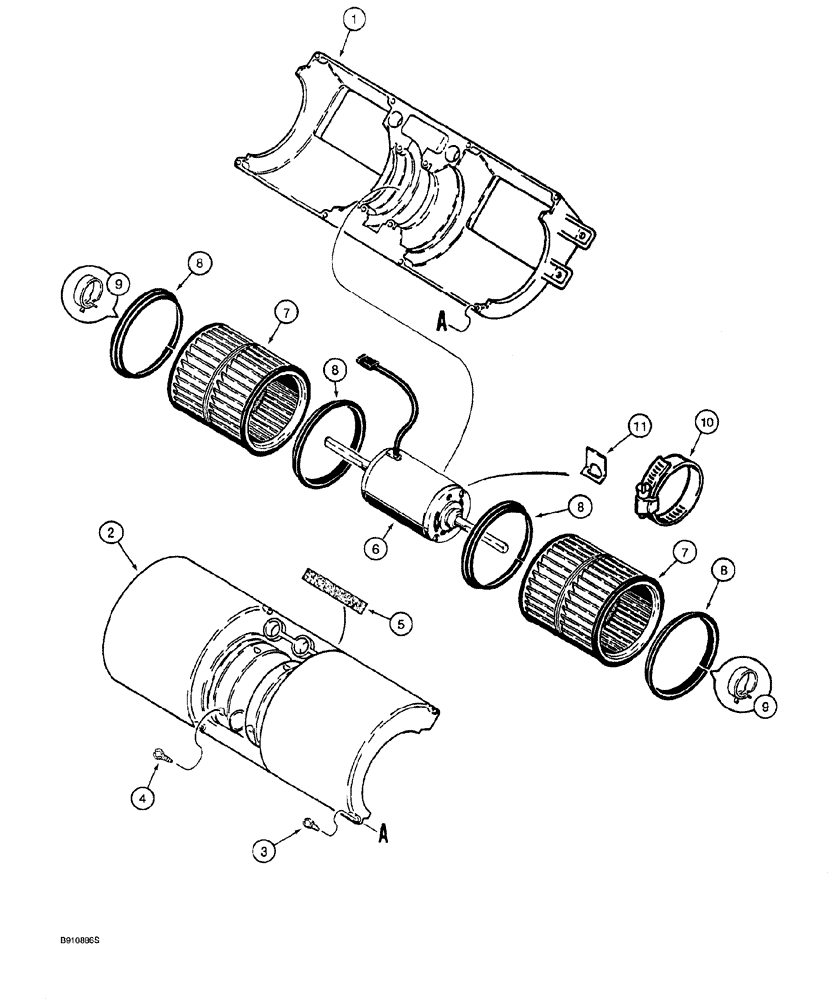

Запчасти Case 921 (4-052) - CAB BLOWER (04) - ELECTRICAL SYSTEMS

1

F64740

HOUSING

fan, lower

1шт.

2

F64741

HOUSING

fan, upper

1шт.

3

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

8шт.

4

187-1928

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

self-tapping, pan head Phillips, No. 10-16 x 1 inch

4шт.

5

REF

INSTRUCTION

SEAL foam, upper fan housing, 4 inch (102 mm) long, cut from F64119X bulk, see below

1шт.

6

1546448C1

MOTOR, ELECTRIC

blower, 24 volt

1шт.

6

370512A1R

REMAN-ELECTRIC MOTOR

921, Reman For New P/N 1546448C1

1шт.

6

370512A1C

CORE-ELECTRIC MOTOR

Return Number

1шт.

7

F64935

BLOWER,Fan

FAN blower

2шт.

8

F64739

RING

plastic, fan retaining

4шт.

9

F64936

CLAMP

steel spring, fan retaining

2шт.

10

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

adj, 2-1/16 - 3 inch diameter, motor retaining

1шт.

11

R51563

CLIP,ELECTRICAL

motor retaining clamp

1шт.

F64119X

GASKET

STRIP foam, bulk, 1/16 (1.5) x 1/2 (13) x 1200 inch (30480 mm)

1шт.
