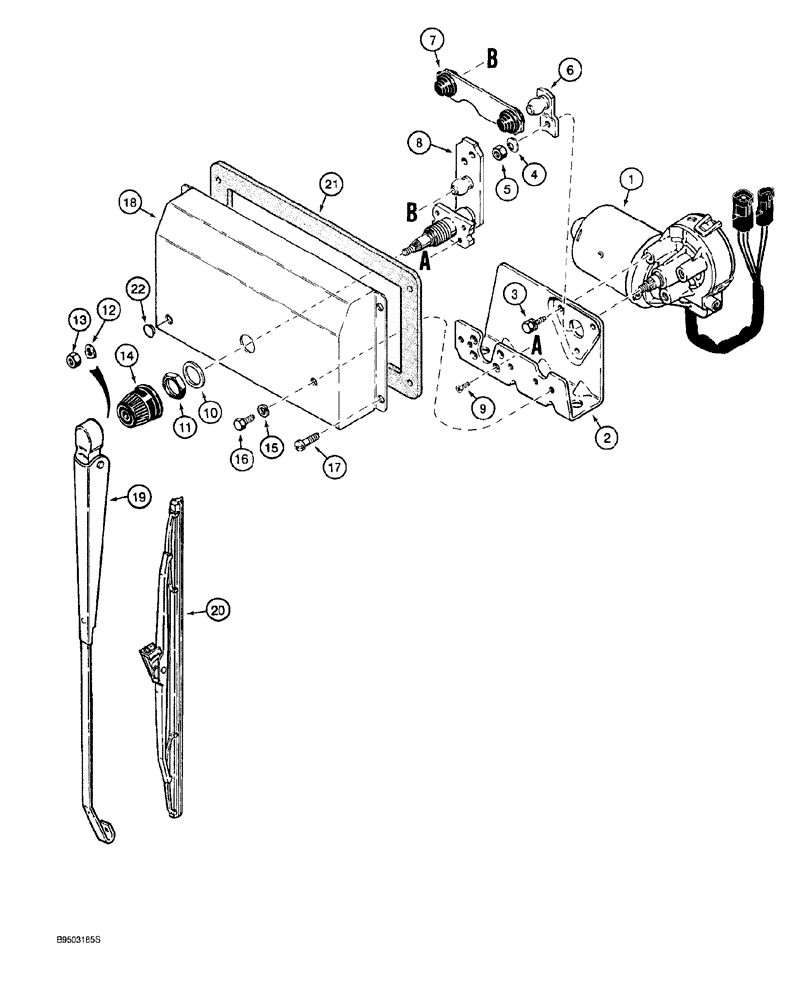

Запчасти Case 921 (4-050) - REAR WIPER (04) - ELECTRICAL SYSTEMS

A187672

WIPER MOTOR

MOTOR, WIPER ASSY., windshield, with bracket, 24 volt, Includes: Ref. 1 - 9

1шт.

1

A187535

WIPER MOTOR

MOTOR, WIPER windshield, 24 volt

1шт.

2

N8359

SUPPORT

BRACKET windshield wiper assembly

1шт.

3

N8362

CAPTIVE WASHER SCREW,Hex, M6 x 18.50mm, Gr 10.9

with washer, special

3шт.

4

N8361

SPRING WASHER

Belleville

1шт.

5

L112090

NUT

hex, special, shaft end

1шт.

6

N8360

SUPPORT

ARM drive

1шт.

7

N8358

LINK

LINK wiper

1шт.

8

N14112

SHAFT

pivot

1шт.

9

N8356

SCREW,Phillips Drive, Flat HD, M5 x 8mm

special, pivot shaft to bracket

4шт.

10

L112088

WASHER

special, large, shaft

1шт.

11

L112087

NUT

special, shaft

1шт.

12

L112089

WASHER

wave, special, shaft end

1шт.

13

L112090

NUT

hex, special, shaft end

1шт.

14

L112081

CAP

pivot shaft end

1шт.

15

192-81007

LOCK WASHER,1/4"

Replaces 192-83

1шт.

16

414-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

1шт.

17

1276117C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 3/4"

pan Phillips, special, 1/4 NC x 3/4 inch

4шт.

18

1339894C1

COVER

mounting, rear wiper

1шт.

19

A187712

WIPER ARM,Single, 500mm L

ARM, WIPER windshield, 14-3/4 inch (375 mm) long, complete

1шт.

20

132024A1

WIPER BLADE

arm, complete, Replaces: A187909

1шт.

21

1345074C1

GASKET,5mm Thk

cover, one-piece, rear wiper cover

1шт.

22

353-405

PLUG,Dome, .562" hole, Nylon

button, 9/16 inch

1шт.
