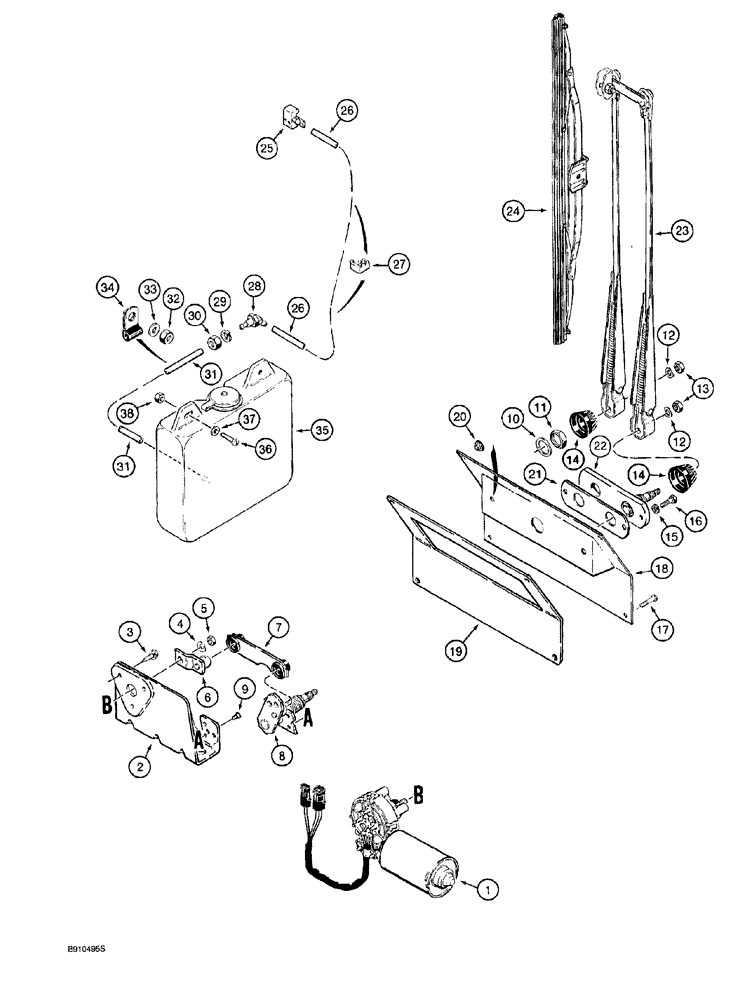

Запчасти Case 921 (4-048) - FRONT WIPER (04) - ELECTRICAL SYSTEMS

A187534

WIPER MOTOR

MOTOR, WIPER ASSY., with bracket, 24 volt, front windshield, Includes: Ref. 1 - 9

1шт.

1

A187535

WIPER MOTOR

MOTOR, WIPER windshield, 24 volt

1шт.

2

N8359

SUPPORT

BRACKET windshield wiper assembly

1шт.

3

N8362

CAPTIVE WASHER SCREW,Hex, M6 x 18.50mm, Gr 10.9

with washer, special, motor to bracket

3шт.

4

N8361

SPRING WASHER

Belleville

1шт.

5

L112090

NUT

hex, special

1шт.

6

N8360

SUPPORT

ARM drive

1шт.

7

A187835

ROD

LINK wiper

1шт.

8

A187836

CROSS SHAFT

pivot

1шт.

9

N8356

SCREW,Phillips Drive, Flat HD, M5 x 8mm

special, pivot shaft to bracket

4шт.

10

L112088

WASHER

special, large, shaft

1шт.

11

L112087

NUT

special, large, shaft

1шт.

12

L112089

WASHER

wave, special, shaft end

2шт.

13

L112090

NUT

hex, special, shaft end

2шт.

14

L112081

CAP

pivot shaft end

2шт.

15

492-11025

LOCK WASHER,1/4"

1шт.

16

414-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

BOLT hex, 1/4 NF x 3/4 inch

1шт.

17

140-112

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

4шт.

18

1339586C1

COVER

mounting, front wiper

1шт.

19

1994815C1

WIPER SEAL

one piece, wiper cover

1шт.

20

353-401

PLUG,Dome, .312" hole, Nylon

button, 5/16 inch, black, wiper cover

1шт.

21

A186219

GASKET,1.5mm Thk

pivot

1шт.

22

A186220

PIVOT ASSY.

wiper arm

1шт.

23

A187964

WIPER ARM

ARM, WIPER windshield, 26-13/16 inch (680 mm) long

1шт.

24

A187574

WIPER BLADE

windshield, 27-9/16 inch (700 mm) long

1шт.

Ref. 24 now has a refill, 234594A1. The refill does not have a metal strip. You need to use the metal strip from the old blade.

1шт.

25

1970002C1

JET

NOZZLE wiper fluid

1шт.

26

1964827C1

PIPE

HOSE 32 inch (810 mm) long, Serial Range: nozzle-elbow

1шт.

27

1970003C1

CLIP,ELECTRICAL

hose to wiper arm

2шт.

28

1968053C1

ELBOW

ELBOW, 90°, special

1шт.

29

N8361

SPRING WASHER

Belleville, special

1шт.

30

825-1408

NUT,M8, Cl 8

1шт.

31

1964828C1

PIPE

HOSE elbow to fluid reservoir, 45 inch (1145 mm) long

1шт.

32

425-106

NUT,3/8"-16, Cl 5

If used

3шт.

33

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16"), If used

3шт.

34

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type, If used

3шт.

35

A187527

RESERVOIR ASSY.

windshield wiper fluid, with pump, component parts not service separately

1шт.

36

1276117C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 3/4"

pan Phillips, special, 1/4 NC x 3/4 inch

2шт.

37

1990502C1

WASHER

flat, 17/64 x 13/16 x 5/64 inch

2шт.

38

425-104

NUT,1/4"-20, Cl 5

2шт.
