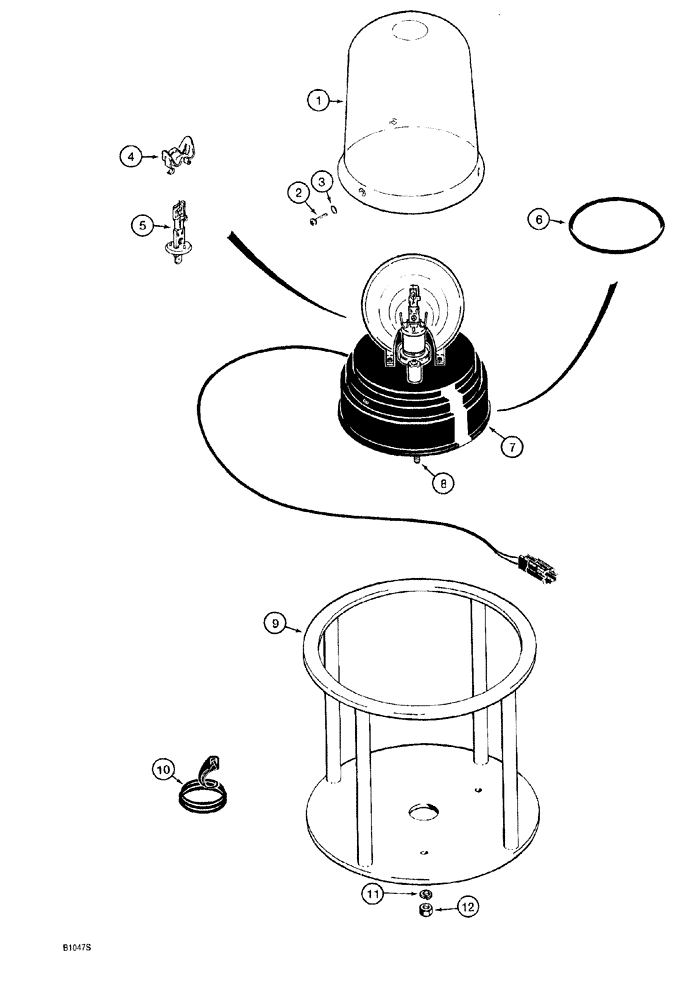

Запчасти Case 921 (4-046) - ROTATING BEACON ASSEMBLY AND MOUNTING (04) - ELECTRICAL SYSTEMS

A187528

LIGHT ASSY.

BEACON rotating, Includes: Ref. 1 - 8

1шт.

1

A187542

LENS

beacon, amber

1шт.

1

127158A1

LENS

beacon, blue, service alternative

1шт.

2

168-71

DRIVE SCREW,Type U, Rnd Hd, #8 x 1/2"

Round head, Lens mounting

3шт.

3

238-5005

O-RING,0.094" ID x 0.062" Width

3шт.

4

NSS

NOT SOLD SEPARAT

CLIP bulb

1шт.

5

P40533

LAMP

BULB halogen

1шт.

6

A187575

O-RING

Drive Motor

1шт.

7

NSS

NOT SOLD SEPARAT

BASE ASSY., with drive motor

1шт.

8

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

3шт.

9

L124809

CAGE

beacon

1шт.

10

L109042

GASKET

TRIM edge, 13-13/16 inch (350 mm) long, cut from F42827 bulk trim, see below

1шт.

11

892-11006

LOCK WASHER,M6

3шт.

12

825-1406

NUT,M6, Cl 8

3шт.

F42827

TRIM,2946.4mm L

TRIM edge, bulk, 116 inch (2946 mm) long

1шт.
