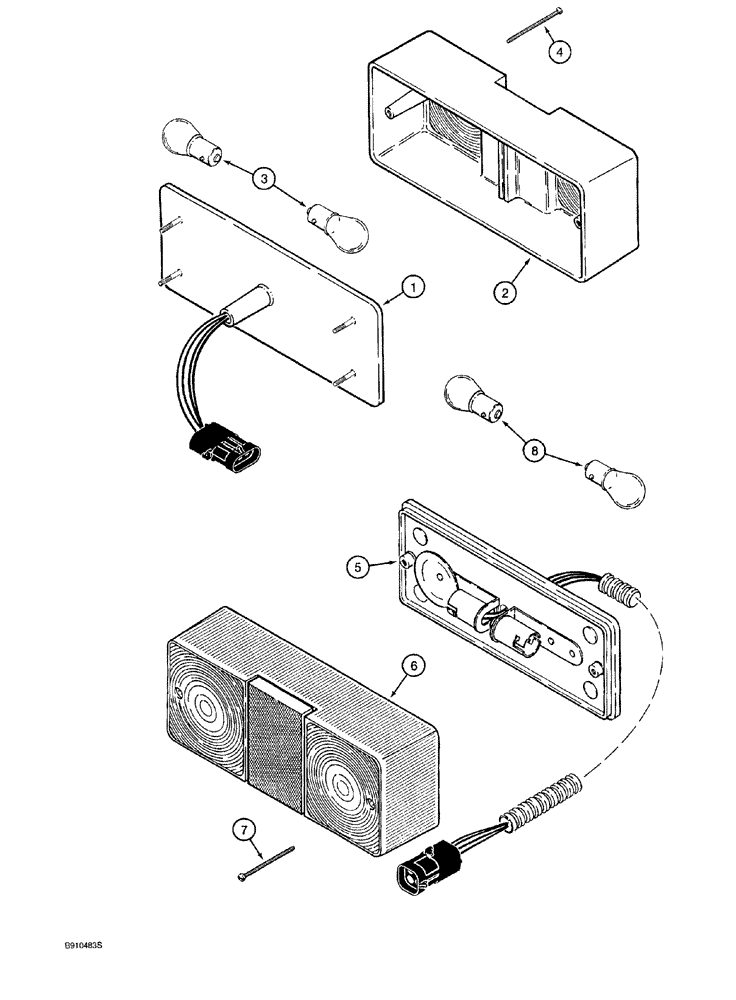

Запчасти Case 921 (4-044) - TURN SIGNAL, FLASHER, STOP AND TAIL LAMPS (04) - ELECTRICAL SYSTEMS

A187992

LIGHT ASSY.,24V, 27W, Amber/Clear

Turn signal and flasher, right-hand, see Figure 4-038 for mounting, Includes: Ref. 1 - 4

1шт.

A187993

LIGHT ASSY.,24V, 27W, Amber/Clear

turn signal and flasher, left-hand, see Figure 4-038 for mounting, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

BODY lamp

1шт.

2

A186293

LENS

lamp

1шт.

3

A15084

LAMP

BULB, No. 1683, 24 volt

2шт.

4

226668A1

SCREW,M3.5 x 45mm

lens mounting

2шт.

A187961

LAMP, TAIL

LIGHT, TAIL ASSEMBLY stop and tail, right-hand, see Figure 4-040 for mounting, Includes: Ref. 5 - 8

1шт.

A187962

LAMP, TAIL

LIGHT, TAIL ASSEMBLY stop and tail, left-hand, see Figure 4-040 for mounting, Includes: Ref. 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

BODY lamp

1шт.

6

A186295

LENS

lamp

1шт.

7

226668A1

SCREW,M3.5 x 45mm

lens mounting

2шт.

8

A15084

LAMP

BULB, No. 1683, 24 volt

2шт.
