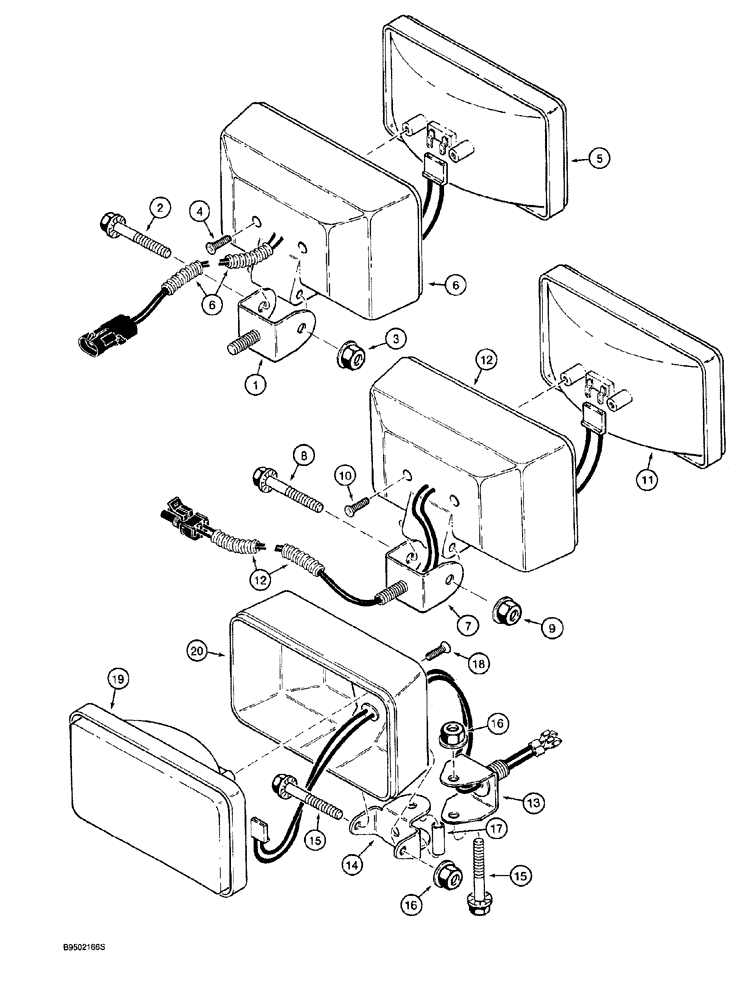

Запчасти Case 921 (4-042) - LAMPS, FRONT AND REAR (04) - ELECTRICAL SYSTEMS

A187519

LIGHT ASSY.,24V, 70W, Clear

Front, Drive, See Figure 4-038 for mounting, Includes Ref 1 - 6

2шт.

1

A187913

SUPPORT

BRACKET lamp

1шт.

2

121-232

SERRATED BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

4

273-5048

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

2шт.

5

103654A1

HEADLIGHT,Halogen, 24V, 60W

BULB sealed beam

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING lamp

1шт.

A187520

LIGHT ASSY.,24V, 70W, Clear

Flood, see Figure 4-040 for mounting, front and rear lamps, Includes: Ref. 7 - 12

4шт.

7

A187913

SUPPORT

BRACKET lamp

1шт.

8

121-232

SERRATED BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

10

273-5048

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

2шт.

11

103653A1

HEADLIGHT,24V, 60W

BULB sealed beam

1шт.

12

NSS

NOT SOLD SEPARAT

HOUSING lamp

1шт.

A187541

LIGHT ASSY.,Halogen, 24V, 70W, Clear

flood, cab or canopy, see Figure 4-006 or 4-012 for mounting, Includes: Ref. 13 - 20

2шт.

13

A52216

SUPPORT

BRACKET mounting, includes stud

1шт.

14

A52215

SUPPORT

BRACKET mounting, lamp

1шт.

15

121-232

SERRATED BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

16

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

17

A52219

SPACER

bracket

1шт.

18

273-5048

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

2шт.

19

103653A1

HEADLIGHT,24V, 60W

BULB sealed beam

1шт.

20

NSS

NOT SOLD SEPARAT

HOUSING lamp

1шт.
