(4-040) - REAR LAMP AND BACKUP ALARM MOUNTING

Запчасти Case 921 (4-040) - REAR LAMP AND BACKUP ALARM MOUNTING (04) - ELECTRICAL SYSTEMS

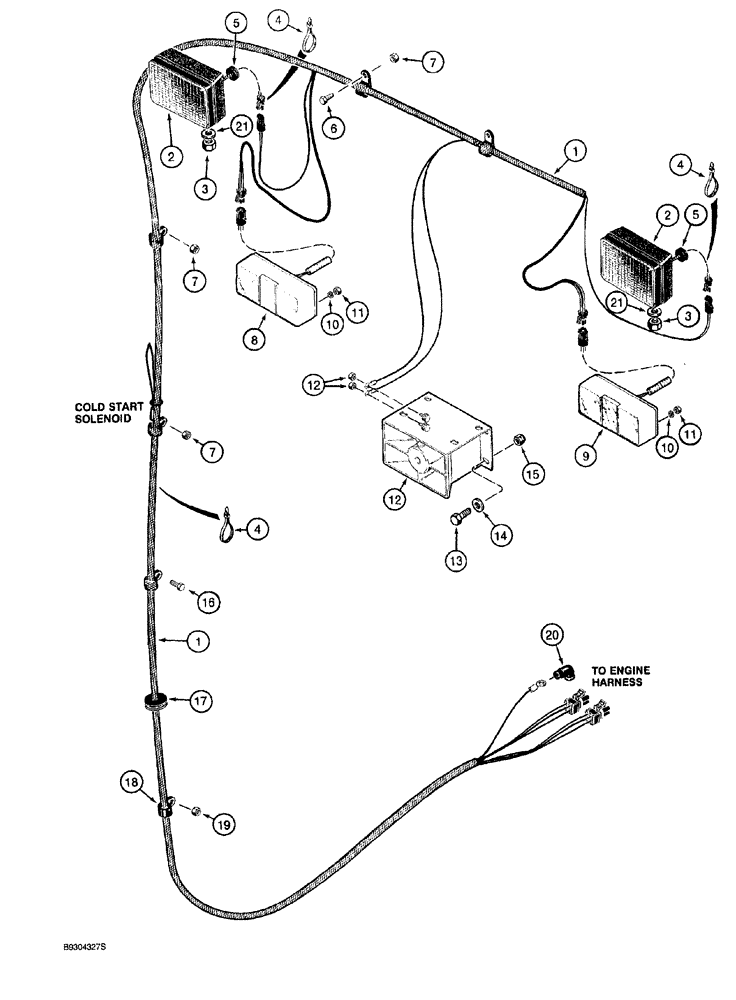

Схема запчастей Case 921 - (4-040) - REAR LAMP AND BACKUP ALARM MOUNTING (04) - ELECTRICAL SYSTEMS
14
16
17
21
6
2
19
3
4
3
10
10
7
15
1
11
20
9
4
18
2
7
5
12
7
1
5
4
8
21
11
12
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

L129113

HARNESS

rear

1шт.

2

A187520

LIGHT ASSY.,24V, 70W, Clear

Flood, see Figure 4-042

2шт.

3

131-1402

THIN NUT,1/2"-13, GB, Thin

2шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie

1шт.

5

248-2399

GROMMET,3/8" ID x 1" Groove Dia, Str Cut

Rubber, Replaces L124504, if used

2шт.

6

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

7

231-1446

NUT,3/8" - 16, Gr 5

4шт.

8

A187962

LAMP, TAIL

LIGHT, TAIL ASSY., stop and tail, left-hand, see Figure 4-044

1шт.

9

A187961

LAMP, TAIL

LIGHT, TAIL ASSY., stop and tail, right-hand, see Figure 4-044

1шт.

10

892-11005

LOCK WASHER,M5

8шт.

11

825-1405

NUT,M5, Cl 8

8шт.

12

D121972

ALARM

backup, electric, rectangular type

1шт.

13

426-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

4шт.

14

495-21031

WASHER,1/4"

flat, 5/16 x 3/4 x 1/16 inch

4шт.

15

231-1444

NUT,1/4"-20, GB

4шт.

16

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

17

D55218

SEAL, GLASS,76mm L

TRIM edge, 3 inch (76 mm) long, cut from F42827 bulk trim, shown below

1шт.

18

129083R1

CLAMP

P-type, 5/8 inch ID

1шт.

19

231-1446

NUT,3/8" - 16, Gr 5

1шт.

20

L126713

BOOT

plastic, harness at floor of operators compartment

1шт.

21

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

F42827

TRIM,2946.4mm L

TRIM edge, bulk, 116 inch (2946 mm) long

1шт.
