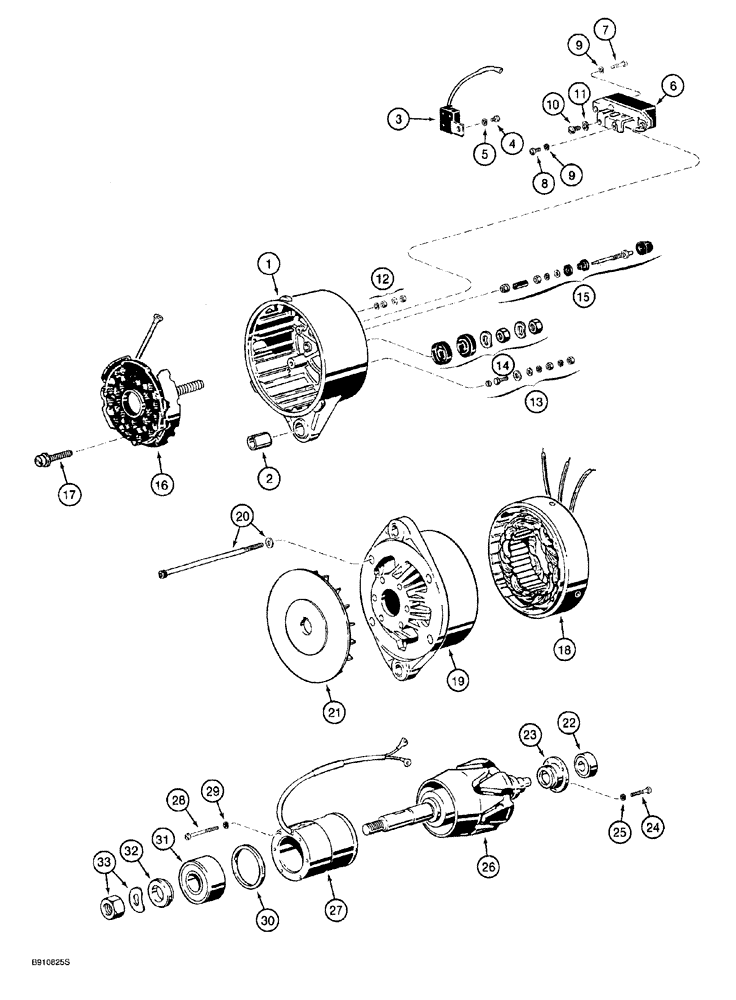

Запчасти Case 921 (4-036) - ALTERNATOR ASSEMBLY, 70 AMPERE - 28 VOLT (04) - ELECTRICAL SYSTEMS

A187508

ALTERNATOR

ASSY., 24 volt, 70 amperes, Includes: Ref. 1 - 33

1шт.

See your authorized Cummins dealer for pulley and alternator mounting hardware. See Figure 4-020 for boots and connection to rear harness.

1шт.

AR187508

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

AC187508

CORE-ALTERNATOR

Return Part Number

1шт.

1964860C1R

REMAN-ALTERNATOR

Remanufactured Alternator, 24 volt 65 ampere

1шт.

1964860C1C

CORE-ALTERNATOR

Return Part Number

1шт.

A187873

ALTERNATOR,12V, 65A

Alternator, 14V, 65 Amp

1шт.

AR187873

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

AC187873

CORE-ALTERNATOR

Return Part Number

1шт.

A187873GV

ALTERNATOR

Value, 12V, 65A

1шт.

A187916

ALTERNATOR,24V, 45A

Alternator, 24V, 65 Amp

1шт.

A187916GV

ALTERNATOR

Value

1шт.

AR187916

REMAN-ALTERNATOR

Remanufactured Alternator; 45A 24V

1шт.

AC187916

CORE-ALTERNATOR

Return Part Number

1шт.

87297230

REMAN-ALTERNATOR

REMANUFACTURED Bosch 12v 65a ALTERNATOR

1шт.

87297231

CORE-ALTERNATOR

Return Part Number, Bosch 12 v 65a Alternator

1шт.

87297236

REMAN-ALTERNATOR

Remanufactured Alternator; 24V 45A

1шт.

87297237

CORE-ALTERNATOR

Return Part Number

1шт.

87297240

REMAN-ALTERNATOR

Remanufactured Alternator; 24V 65A

1шт.

87297241

CORE-ALTERNATOR

Return Part Number

1шт.

1

1546512C1

HOUSING

ASSY., rectifier end, Includes: Ref. 2

1шт.

2

1546513C1

INSERT

BUSHING expansion

1шт.

3

1546532C1

CAPACITOR

ASSY., alternator, Includes: Ref. 4, 5

1шт.

4

840-3610

SCREW,Pan, M6 x 10mm, Cl 4.8

1шт.

5

892-11006

LOCK WASHER,M6

1шт.

6

1546520C1

REGULATOR

ASSY., voltage, Includes: Ref. 7 - 11

1шт.

7

3079379R1

SCREW,Slot Cheese Hd, M4 x .7 x 16, 5.8

special

2шт.

8

840-148

SCREW,Pan, M4 x 8mm, Cl 4.8

1шт.

9

892-11004

LOCK WASHER,M4

3шт.

10

840-258

SCREW,Pan, M5 x 8mm, Cl 4.8

1шт.

11

892-11005

LOCK WASHER,M5

1шт.

12

1546529C1

KIT

hardware, terminal B-

1шт.

13

1546511C1

KIT

hardware, terminal D+

1шт.

14

1546514C1

KIT

hardware, terminal B+

1шт.

15

1546530C1

KIT

hardware, terminal W

1шт.

16

1546515C1

REGULATOR

BRIDGE rectifier, Includes: Ref. 17

1шт.

17

A186188

SCREW

BOLT with washer, rectifier bridge

2шт.

18

1546509C1

STATOR

alternator

1шт.

19

1546503C1

HOUSING

drive end

1шт.

20

1546531C1

KIT

SCREW special, includes washer

4шт.

21

1964736C1

FAN

alternator

1шт.

22

1546508C1

BEARING, ROLLER, CYL,15 mm ID x 35 mm OD x 11 mm

roller

1шт.

23

1546526C1

BUSHING

RING cover, Includes: Ref. 24, 25

1шт.

24

E156747

SCREW

BOLT special

3шт.

25

892-11004

LOCK WASHER,M4

3шт.

26

1546506C1

ROTOR ASSY.

alternator

1шт.

27

1546517C1

COIL ASSY.

induction, Includes: Ref. 28, 29

1шт.

28

1546518C1

SCREW,Sl Pan Hd, M4 x 40mm, Gr 10.9

special, 4 x 40 mm

6шт.

29

892-11004

LOCK WASHER,M4

6шт.

30

1546505C1

SPACER

bearing

1шт.

31

127095A1

BEARING, BALL

drive end

1шт.

32

1546507C1

RING RACE

RETAINER bearing

1шт.

33

1546535C1

LOCK NUT

special, includes washer

1шт.

34

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

Not Included with Alternator, Use for Mounting Upper Bracket and Alternator to Engine

1шт.

See your authorized Cummins dealer for pulley and alternator mounting hardware. See Figure 4-020 for boots and connection to rear harness.

1шт.
