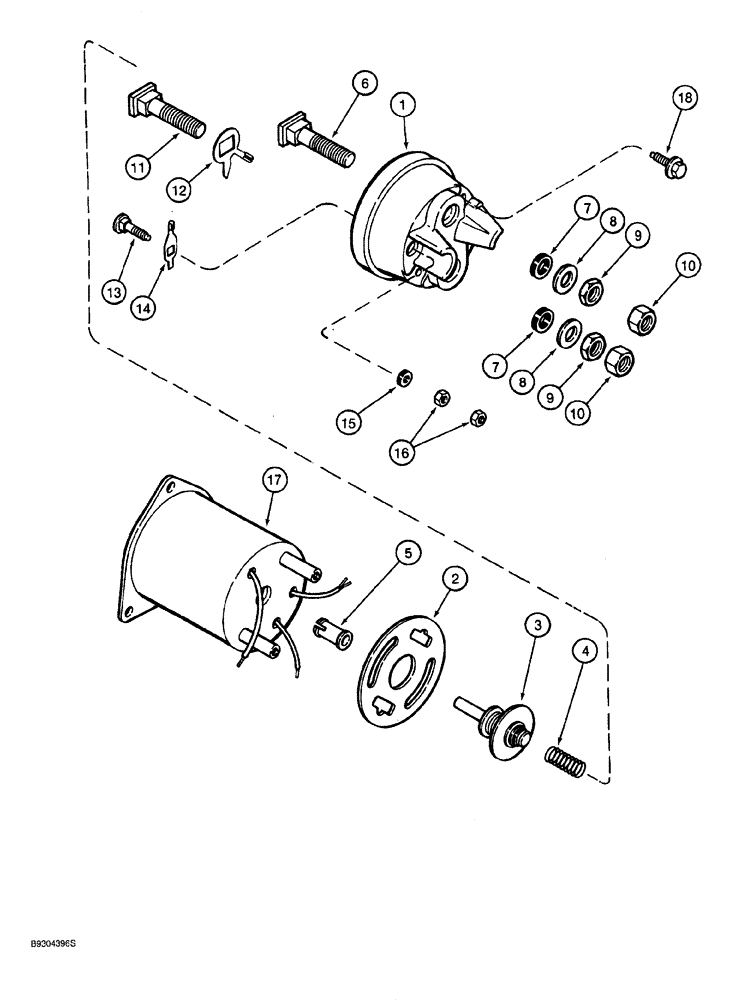

Запчасти Case 921 (4-034) - STARTER SOLENOID ASSEMBLY (04) - ELECTRICAL SYSTEMS

1546546C1

SOLENOID

ASSY., starter, Includes: Ref. 1 - 18

1шт.

1

116684A1

COVER

ASSY., solenoid

1шт.

2

A49565

GASKET

cover

1шт.

3

A49566

CONTACTOR

solenoid

1шт.

4

A42411

VALVE SPRING

return, contact disc

1шт.

5

A49564

STUD

BUSHING contact

1шт.

6

116686A1

BOLT

BOLT special, 1/2 inch NC

1шт.

7

116382A1

SEALING WASHER

SEAL WASHER WASHER sealing

2шт.

8

95-81101

WASHER,0.52" ID x 0.88" OD x 0.07" Thk

flat, 33/64 x 7/8 x 1/16 inch

2шт.

9

425-148

JAM NUT,Jam, 1/2"-13, G5

2шт.

10

A47890

NUT

flange type, special, 1/2 inch NC

2шт.

11

A49563

STUD

terminal, special

1шт.

12

116688A1

WASHER

special, terminal

1шт.

13

A42090

TERMINAL CONNECTOR

STUD terminal, No. 10

2шт.

14

A49570

GASKET

CLIP terminal, No. 10

2шт.

15

A42084

INSULATOR

terminal, rubber

2шт.

16

1546549C1

NUT

hex, special, No. 10 - 32 NF

4шт.

17

NSS

NOT SOLD SEPARAT

HOUSING solenoid

1шт.

18

116381A1

SCREW

BOLT flange, No. 10 NF x 21/32 inch

2шт.
