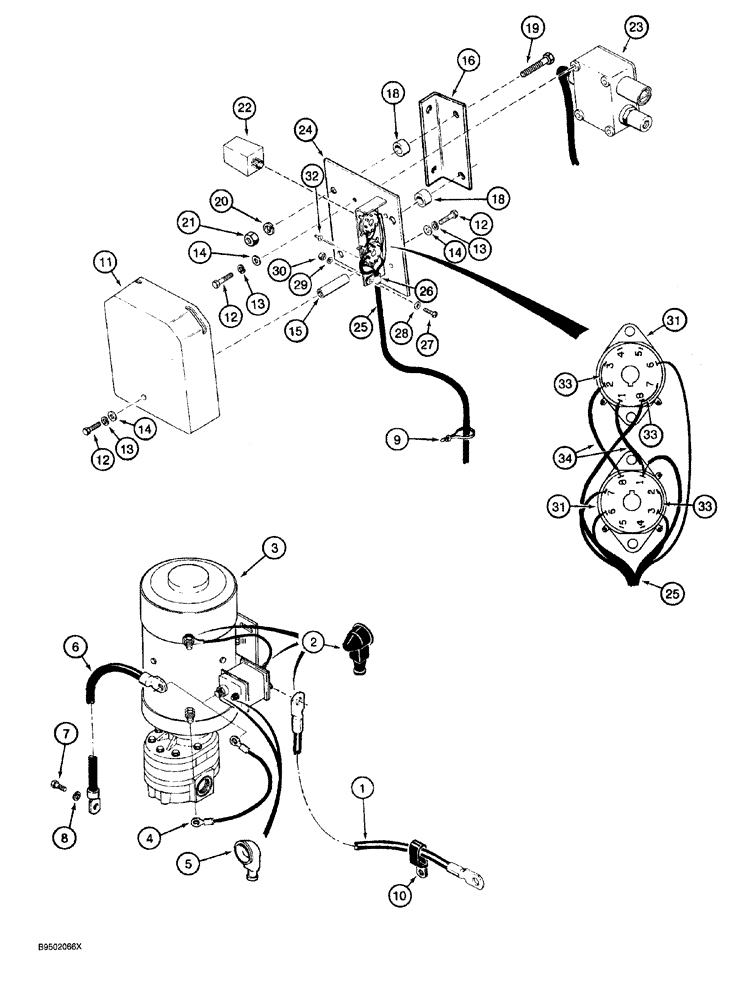

Запчасти Case 921 (4-027A) - AUXILIARY STEERING ELECTRICAL CIRCUIT (04) - ELECTRICAL SYSTEMS

1

130815A1

CABLE

starter to solenoid, 52 inch (1320 mm) long

1шт.

2

L126713

BOOT

plastic, front of solenoid

3шт.

3

107627A1

PUMP, HYDRAULIC

AND MOTOR ASSY., auxiliary steering, see Figure 5-013C for mounting and parts list

1шт.

4

185028A1

CABLE

WIRE jumper, solenoid to pump, 5 inch (127 mm) long

1шт.

5

S64612

BOOT

rubber, rear harness and jumper wire on rear of solenoid

2шт.

6

176182A1

CABLE

solenoid to engine, ground, 48-7/16 inch (1230 mm) long

1шт.

7

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

8

892-11010

LOCK WASHER,M10

1шт.

9

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie

1шт.

10

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type, Uses existing hardware, Mounts to bracket on rear of hydraulic reservoir

2шт.

11

L114612

COVER

relay panel

1шт.

12

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

13

492-11025

LOCK WASHER,1/4"

6шт.

14

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

6шт.

15

L114195

SPACER

relay cover

1шт.

16

L129136

SUPPORT

BRACKET relay mounting, mounts to hydraulic reservoir shown in Figure 8-004

1шт.

17

231-1446

NUT,3/8" - 16, Gr 5

2шт.

18

S77915

SPACER

bracket to relay socket

2шт.

19

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

2шт.

20

492-11038

LOCK WASHER,3/8"

2шт.

21

425-106

NUT,3/8"-16, Cl 5

2шт.

22

L113460

RELAY,24V

steering, auxiliary

2шт.

23

L126826

IGNITION SWITCH

pressure, auxiliary steering, see Figures 8-078 for pressure hose and 5-013A auxiliary steering hydraulic circuit

1шт.

141321A1

CONNECTION

SOCKET ASSY., relay, auxiliary steering, Includes: Ref. 24 - 34

1шт.

24

NSS

NOT SOLD SEPARAT

BRACKET relay socket mounting

1шт.

25

NSS

NOT SOLD SEPARAT

HARNESS relay

1шт.

26

L73526

CLAMP

relay harness

1шт.

27

140-104

SCREW,Cross Pan Hd, #8 - 32 x 3/4"

1шт.

28

495-21019

WASHER,#8

1шт.

29

492-11008

LOCK WASHER,#8

1шт.

30

225-14108

NUT,#8-32

hex, No. 8 NC

1шт.

31

L57132

SOCKET

relay

2шт.

32

151-526

RIVET,Pop, 1/8" x .337"

pop, 1/8 x 9/32 inch

4шт.

33

L70845

ELECTRICAL WIRE

WIRE ground

3шт.

34

NSS

NOT SOLD SEPARAT

WIRE, Serial Range: relay-relay

2шт.
