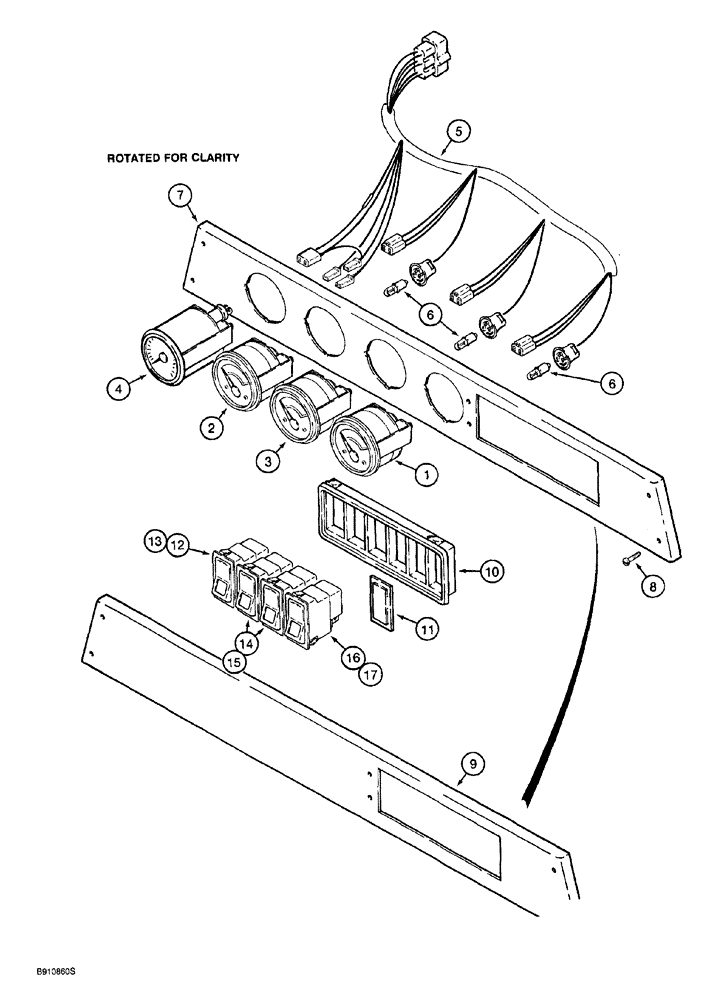

Запчасти Case 921 (4-026) - GAUGES AND OVERHEAD SWITCHES (04) - ELECTRICAL SYSTEMS

1

L125857

VOLTMETER

GAUGE

1шт.

2

118265A1

ELECTRICAL GAUGE

engine oil pressure, Replaces: L125853

1шт.

3

118266A1

ELECTRICAL GAUGE

transmission oil temperature, Replaces: L125854

1шт.

4

L129015

TACHOMETER

GAUGE tachometer, Includes: Ref. 4 bulb

1шт.

4

102044A1

BULB

24V, 3W, 3W, tachometer, not shown

1шт.

5

L130038

HARNESS

optional gauge, Serial Range: -JEE0041769

1шт.

For models with cabs or canopies P.I.N. JEE0041769 and after, order harness and gauge lamp wires from the 921B parts catalog, Bur 8-9660.

1шт.

6

S116543

BULB

No. 456

3шт.

7

1339563C2

PANEL, INSTRUMENTS

PANEL, INSTRUMENT overhead, use on units with gauges

1шт.

8

1276051C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1"

pan Phillips, special, 1/4 NC x 1 inch

4шт.

9

1339868C2

PANEL, INSTRUMENTS

PANEL, INSTRUMENT overhead, use on units without gauges

1шт.

10

A187580

PANEL

mounting, switch

1шт.

11

245918C1

LENS

PLUG rectangular, rocker switch

1шт.

12

A187622

SWITCH

SWITCH - rocker, windshield washer, Includes: Ref. 13

1шт.

See Figures 9-080 and 9-082 for rocker switch decals

1шт.

13

926645C1

BULB,W5, 12V, 1.2W

W5/1.2 24V1.2W

1шт.

14

A187621

SWITCH

SWITCH, rocker, wiper, front and rear, Includes: Ref. 15

2шт.

See Figures 9-080 and 9-082 for rocker switch decals

1шт.

One A187621 wiper switch is included in L36339 canopy windshield and wiper kit shown in Figure 9-078.

1шт.

15

926645C1

BULB,W5, 12V, 1.2W

W5/1.2 24V1.2W

1шт.

16

1913507C1

SWITCH ASSY

rocker, beacon, Includes: Ref. 17

1шт.

See Figures 9-080 and 9-082 for rocker switch decals

1шт.

17

926645C1

BULB,W5, 12V, 1.2W

W5/1.2 24V1.2W

1шт.

18

353-401

PLUG,Dome, .312" hole, Nylon

button, 5/16 inch, used with Ref. 7, 1339563C2, and Ref. 9, 1339868C2, not shown

2шт.
