Запчасти Case 921 (4-020) - REAR HARNESS, ENIGINE LEFT-HAND SIDE (04) - ELECTRICAL SYSTEMS

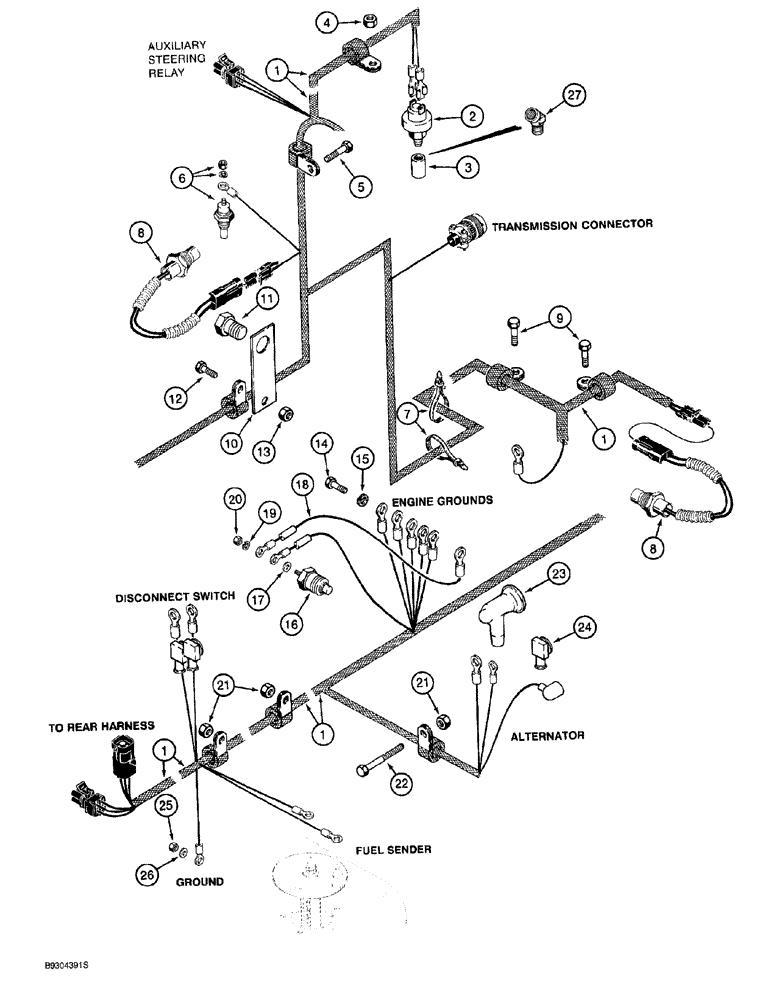

Схема запчастей Case 921 - (4-020) - REAR HARNESS, ENIGINE LEFT-HAND SIDE (04) - ELECTRICAL SYSTEMS
1
5
13
23
9
26
22
8
21
8
24
6
1
12
2
20
16
17
14
1
1
11
15
27
21
4
10
19
18
3
7
25

Артикул

Название

Примечание

Количество

1

L129114

HARNESS

engine, see Figures 4-018 and 4-022 for continuation of harness, Serial Range: -JEE0041769

1шт.

For models with cabs or canopies P.I.N. JEE0041769 and after, order engine harness from the 921B parts catalog, Bur 8-9660.

1шт.

2

1983233C1

RESTRICTION SWITCH

SWITCH restriction, air cleaner

1шт.

3

221-1335

COUPLING,Pipe, 1/8" NPT

If used

1шт.

4

231-1446

NUT,3/8" - 16, Gr 5

1шт.

5

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

hex, 7/16 NC x 1-1/2 inch

1шт.

6

L127532

TEMPERATURE SENDER,1/2" - 14

transmission oil, use on units with optional gauges

1шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie

1шт.

8

A187530

TEMPERATURE SENDER

SWITCH transmission and hydraulic oil temperature

2шт.

9

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

10

L129245

SUPPORT

BRACKET mounting, harness at engine flywheel

1шт.

11

413-1216

BOLT,Hex, 3/4" - 10 x 1", Gr 5

BOLT hex, 3/4 NC x 1 inch

1шт.

12

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

13

231-1446

NUT,3/8" - 16, Gr 5

1шт.

14

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

15

892-11010

LOCK WASHER,M10

1шт.

16

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

temperature, engine coolant

1шт.

17

495-31025

WASHER,3/16"

flat, 1/4 x 9/16 x 3/64 inch

1шт.

18

L129823

ELECTRICAL WIRE

WIRE ground, resistor, engine coolant temperature, Serial Range: sender-engine

1шт.

19

492-11010

LOCK WASHER,#10

1шт.

20

225-20210

NUT,#10-32, Brass

1шт.

21

231-1446

NUT,3/8" - 16, Gr 5

3шт.

22

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

23

L126713

BOOT

plastic, alternator, B+ terminal

1шт.

24

S64612

BOOT

rubber, alternator D+ terminal

1шт.

25

L127555

NUT,Hex, 3/8" - 16

hex, brass, special

1шт.

26

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

flat, brass, special

1шт.

27

221-1365

ELBOW,45 Degree, 1/8" NPT

ELBOW pipe, 45°, 1/8 inch

1шт.

Выбрано товаров: 28
