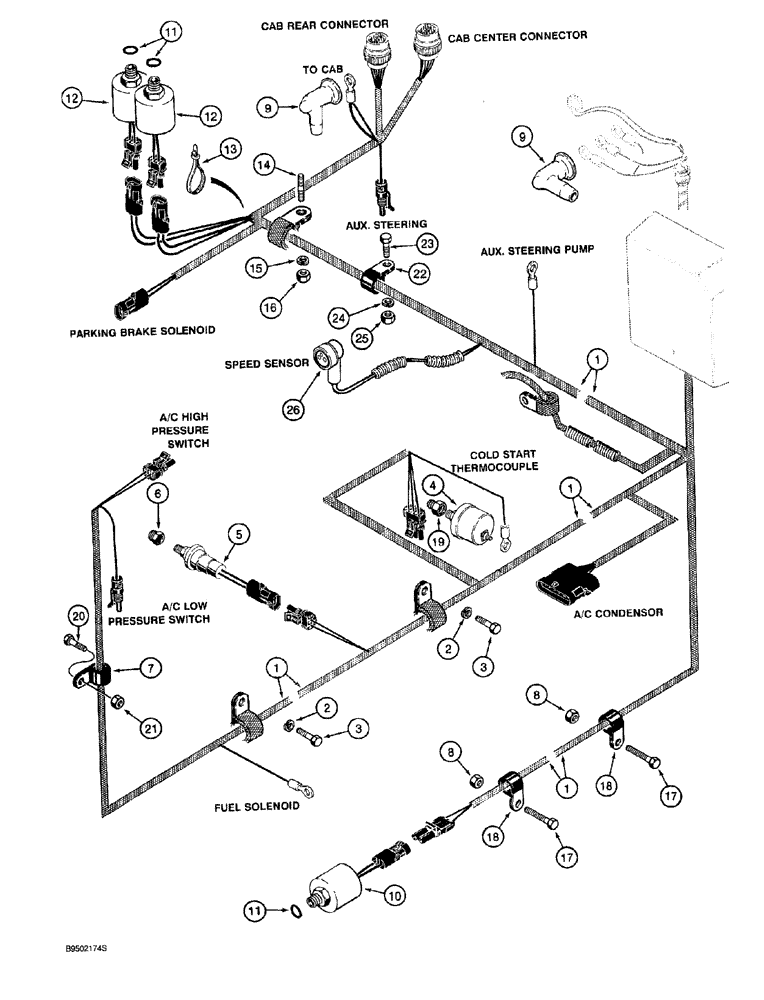

Запчасти Case 921 (4-018) - REAR HARNESS, ENGINE RIGHT-HAND SIDE (04) - ELECTRICAL SYSTEMS

1

L129114

HARNESS

engine, see Figures 4-020 and 4-022 for continuation of harness, Serial Range: -JEE0041769

1шт.

For models with cabs or canopies P.I.N. JEE0041769 and after, order engine harness from the 921B parts catalog, Bur 8-9660.

1шт.

2

892-11010

LOCK WASHER,M10

2шт.

3

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

4

L127534

SENDER UNIT

SENDER engine oil pressure, units with optional gauges

1шт.

5

A187723

SENDER UNIT

SENDER SWITCH engine oil pressure

1шт.

6

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

REDUCER pipe, 1/4 male x 1/8 inch female

1шт.

7

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

Closed, Replaces 49858

1шт.

8

231-1446

NUT,3/8" - 16, Gr 5

2шт.

9

L126713

BOOT

plastic

2шт.

10

L128913

PRESSURE SWITCH

brake, low pressure warning

1шт.

12

L128914

PRESSURE SWITCH

parking brake, low pressure

2шт.

13

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie

1шт.

14

S112500

STUD

special, 5/16 NC x 1-1/4 inch

1шт.

15

492-11031

LOCK WASHER,5/16"

1шт.

16

425-105

NUT,5/16"-18, G5

1шт.

17

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

hex, 7/16 NC x 1-1/2 inch

2шт.

18

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

2шт.

19

221-628

REDUCER,Hex, 1/4" x 1/8" NPT

REDUCER pipe, 1/4 male x 1/8 inch female

1шт.

20

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

21

425-105

NUT,5/16"-18, G5

1шт.

22

R56681

CLAMP

P-type, 1-1/16 inch ID

1шт.

23

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

24

492-11038

LOCK WASHER,3/8"

1шт.

25

425-106

NUT,3/8"-16, Cl 5

1шт.

26

L129852

CONNECTOR, ELEC

CONNECTOR SENSOR speed

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.
