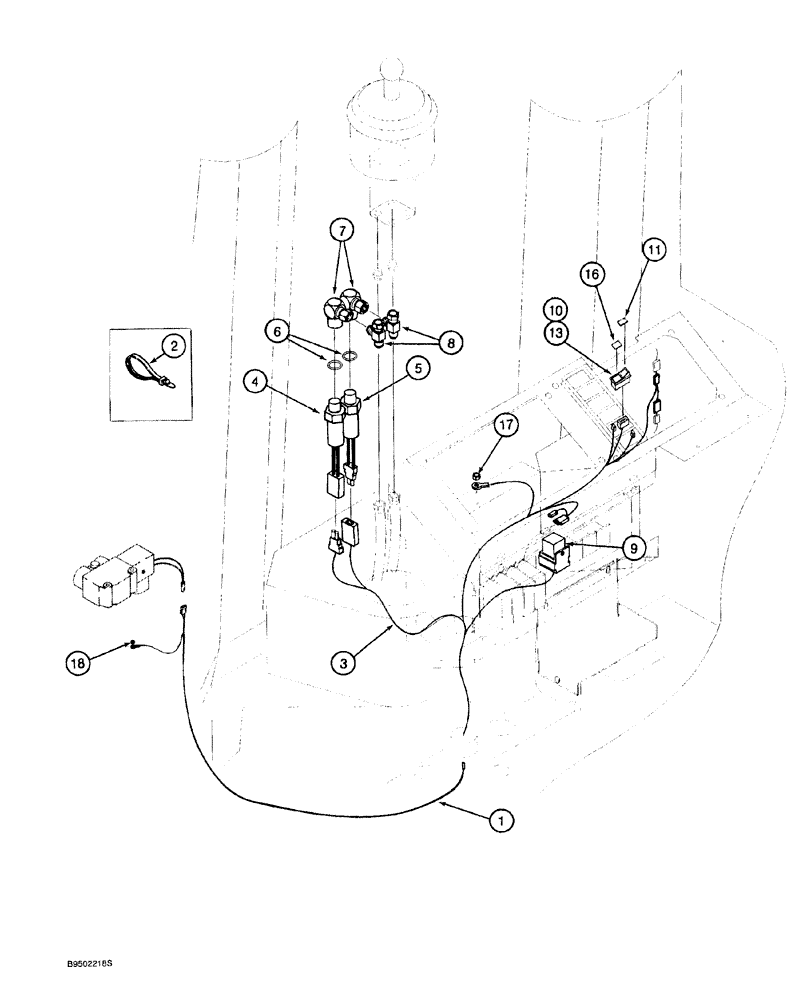

Запчасти Case 921 (4-017A) - RIDE CONTROL HARNESS (04) - ELECTRICAL SYSTEMS

1

107865A1

ELECTRICAL WIRE

WIRE HARNESS ride control, front, cab floor to master valve solenoid, see Figure 8-102

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, front ride control harness

10шт.

3

130417A1

HARNESS

ride control, cab

1шт.

4

132905A1

SWITCH

loader bucket tilt circuit

1шт.

5

132906A1

SWITCH

loader lift circuit

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

7

131248A1

ELBOW,90 Degree, 9/16"-18 37 Degree Sw x 3/4"-16 O-Ring Fem

ELBOW, 90°, special

2шт.

8

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

2шт.

9

A186288

RELAY

mini, 24 volt, latching, see Figures 4-010 (cab) or 4-016 (canopy) for power distribution center

1шт.

10

1913507C1

SWITCH ASSY

rocker, ride control, see Figure 4-026 for instrument panel

1шт.

11

83884C1

SYMBOLS

SYMBOL LENS green

2шт.

12

191146A1

DECAL

ride control, not shown, see Figure 9-080

1шт.

13

A187870

LAMP

warning, ride control indicator, see Figure 4-026 for instrument panel, Includes: Ref. 14

1шт.

14

926645C1

BULB,W5, 12V, 1.2W

W5/1.2 24V1.2W, not shown

1шт.

15

191145A1

DECAL

ride control, on, not shown, see Figure 9-080

1шт.

16

83883C1

SYMBOLS

SYMBOL LENS black

1шт.

17

1999948C1

FLANGE NUT

hex flange, special, 5/16 inch

1шт.

18

425-106

NUT,3/8"-16, Cl 5

1шт.
