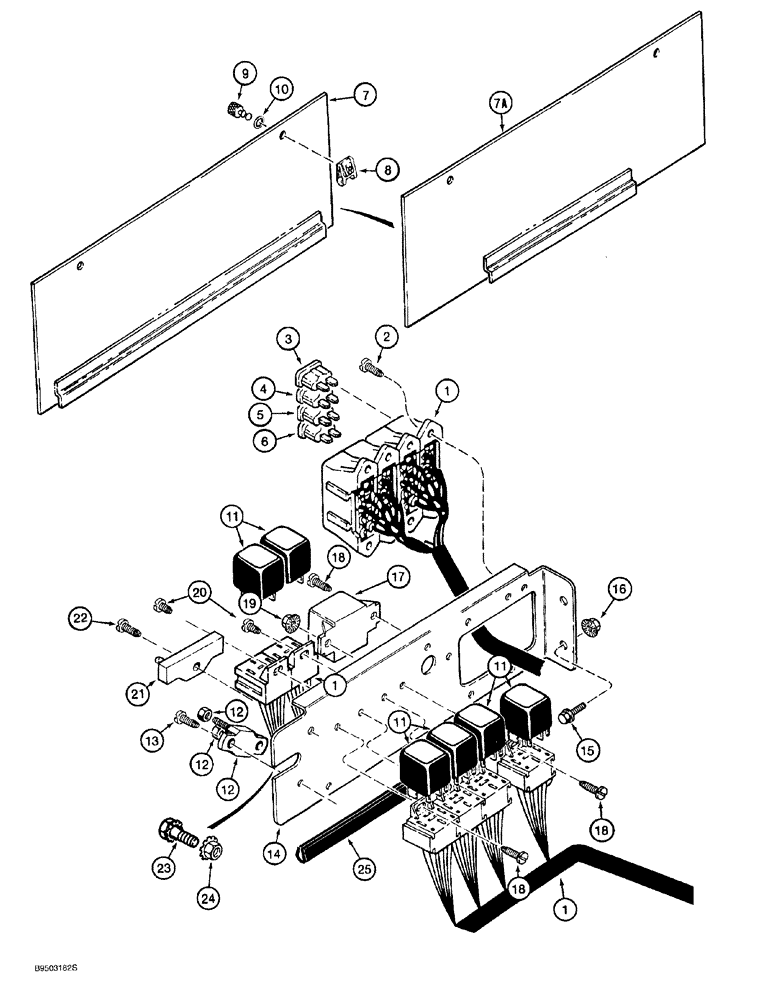

Запчасти Case 921 (4-016) - MAIN CANOPY HARNESS, POWER DISTRIBUTION CENTER (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
1546474C2
HARNESS
main ROPS canopy, used on models with canopies prior to P.I.N. JEE0041769, see Figure 4-14 for serviceable rectifier
1шт.
For models with canopies P.I.N. JEE0041769 and after, order main canopy harness from the 921B parts catalog, Bur 8-9660.
1шт.
2
261-13512
SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"
self-tapping, pan Phillips, No. 10 NC x 3/4 inch
4шт.
3
A149796
FUSE
3 ampere, violet
1шт.
4
A149798
FUSE
5 ampere, tan
3-4шт.
5
A149800
FUSE,10 Amp
10 ampere, red
7-8шт.
6
A149801
FUSE,Lt Blue, 15 Amp
15 ampere, light blue
1шт.
7
1977999C3
COVER
fuse box, if used
1шт.
7a
130885A1
LARGE PLATE
PLATE, LARGE COVER fuse box, if used
1шт.
8
A36042
CLIP
RETAINER quarter turn
2шт.
9
1970049C2
STUD
fuse box
2шт.
10
1981869C1
WASHER
WASHER
2шт.
11
A186288
RELAY
mini, 24 volt
6шт.
12
S243558
CIRCUIT-BREAKER,12.5A
includes bracket and hardware, with plastic housing and seal, 12.5 ampere
1шт.
13
261-13512
SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"
self-tapping, pan Phillips, No. 10 NC x 3/4 inch
2шт.
14
1987018C2
SUPPORT
HOUSING power distribution center
1шт.
15
409-748
BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl
2шт.
17
1546542C1
RELAY
sealed, 24 volt
1шт.
18
261-13512
SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"
self-tapping, pan Phillips, No. 10 NC x 3/4 inch
3шт.
19
231-51409
SERRATED NUT,Flg, USR, #10-24
1шт.
20
261-1356
SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"
self-tapping, pan Phillips, No. 10 NC x 3/8 inch
2шт.
21
F22316
RESISTOR,75 Ohms 0.2 Amps DC
75 ohm
1шт.
22
261-13516
SELF-TAP SCREW,Cross Pan Hd, #10 x 1"
self-tapping, pan Phillips, No. 10 NC x 1 inch
1шт.
23
409-7612
BOLT,3/8"-16 x 1.09" OAL
1шт.
24
231-5146
FLANGE NUT,3/8"-16
1шт.
25
123367A1
TRIM edge, 9 inch (230 mm) long, cut from 1327666C1 bulk trim
1шт.
1327666C1
SEAL
TRIM edge, bulk, 600 inch (15240 mm) long
1шт.
Выбрано товаров: 28
