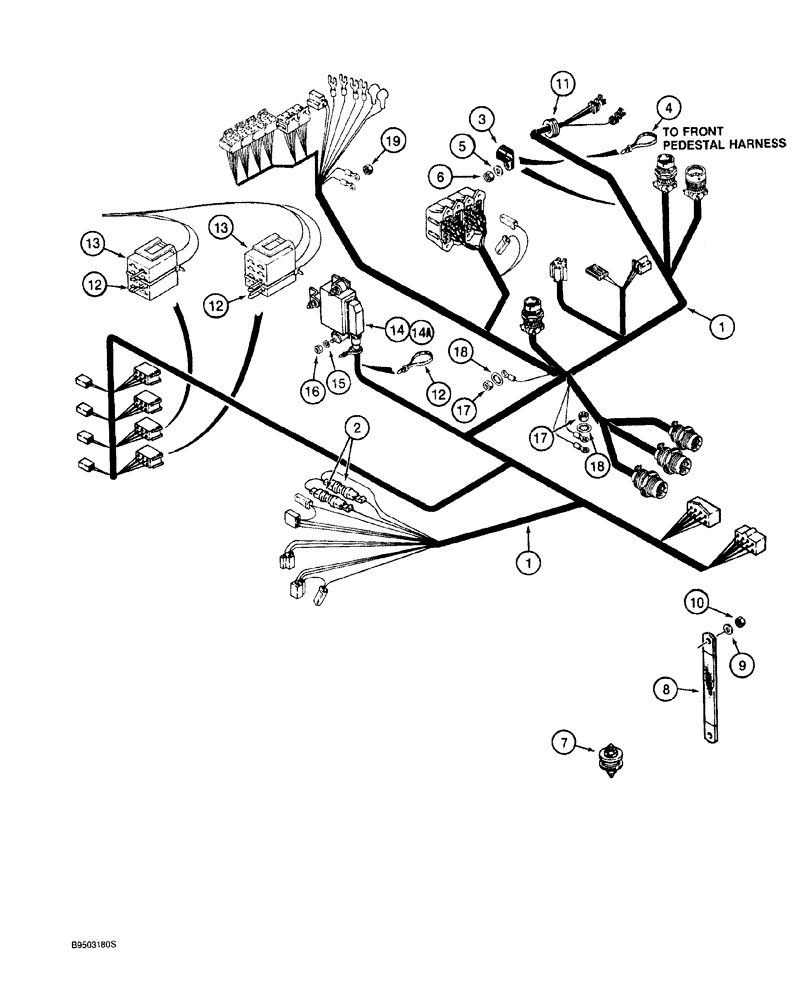

Запчасти Case 921 (4-014) - MAIN CANOPY HARNESS, TRANSMISSION CONTROL (04) - ELECTRICAL SYSTEMS

1

1546474C2

HARNESS

main ROPS canopy, Includes: Ref. 2, Serial Range: -JEE0041769

1шт.

For models with canopies P.I.N. JEE0041769 and after, order main canopy harness from the 921B parts catalog, Bur 8-9660.

1шт.

2

548239R2

RECTIFIER

DIODE nonlocking, 2-31/64 inch long

2шт.

3

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type

4шт.

5

495-21031

WASHER,1/4"

flat, 5/16 x 3/4 x 1/16 inch

4шт.

6

7770

NUT,Hex, 1/4 - 20, Cl 5

hex, 1/4 inch NC

4шт.

7

A187523

JUNCTION BLOCK

junction, includes hardware, in floor of operators compartment

1шт.

8

L126051

GROUND STRAP

1шт.

9

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

flat, brass, special

2шт.

10

L127555

NUT,Hex, 3/8" - 16

hex, brass, special

2шт.

11

117975

GROMMET,5/8" ID x 1 3/8" x .062", Diag Cut

rubber, wiper wire

1шт.

12

L127013

ELECTRICAL WIRE

WIRE CABLE jumper, use when height control and return to transport option is not used

2шт.

13

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie

3шт.

14

1546479C1

TESTER

CONTROL transmission, part number 6009 036 112 stamped on part, if used

1шт.

14a

138496A1

TESTER

CONTROL transmission, part number 6009 054 065 stamped on part, if used

1шт.

15

492-11010

LOCK WASHER,#10

3шт.

16

225-14110

NUT,#10-24

3шт.

17

425-106

NUT,3/8"-16, Cl 5

Mounts ground wires to canopy frame

3шт.

18

493-21039

LOCK WASHER,Int Tooth, 3/8"

internal tooth lock, mounts ground wires to canopy frame, 3/8 inch, if used

3шт.

19

1999948C1

FLANGE NUT

hex flange, special, 5/16 inch

1шт.
