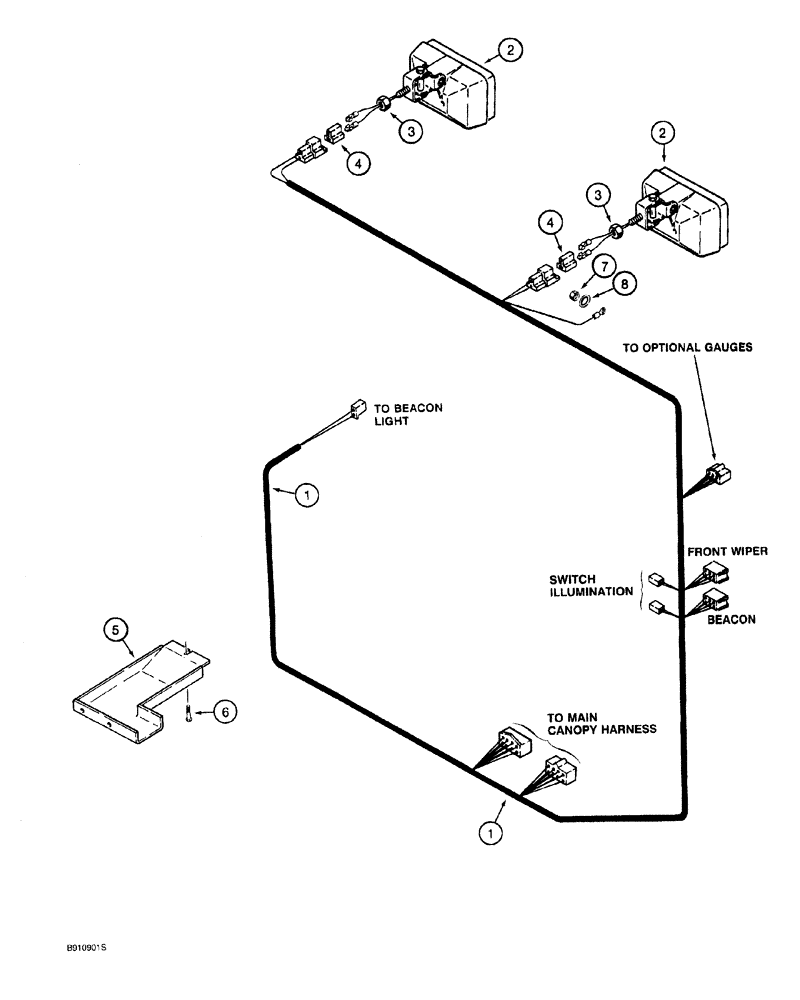

Запчасти Case 921 (4-012) - CANOPY ROOF HARNESS (04) - ELECTRICAL SYSTEMS

1

1546502C1

HARNESS

roof, ROPS canopy

1шт.

2

A187541

LIGHT ASSY.,Halogen, 24V, 70W, Clear

flood, upper, see Figure 4-042

2шт.

3

425-148

JAM NUT,Jam, 1/2"-13, G5

2шт.

4

877291R1

ELEC CONNECTOR,Female

harness to flood lamp

2шт.

5

1973511C5

COVER

harness, upper right hand rear

1шт.

6

140-112

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

3шт.

7

425-106

NUT,3/8"-16, Cl 5

Mounts ground wires to canopy frame

4шт.

8

493-21039

LOCK WASHER,Int Tooth, 3/8"

internal tooth lock, mounts ground wires to canopy frame, 3/8 inch, if used

4шт.
