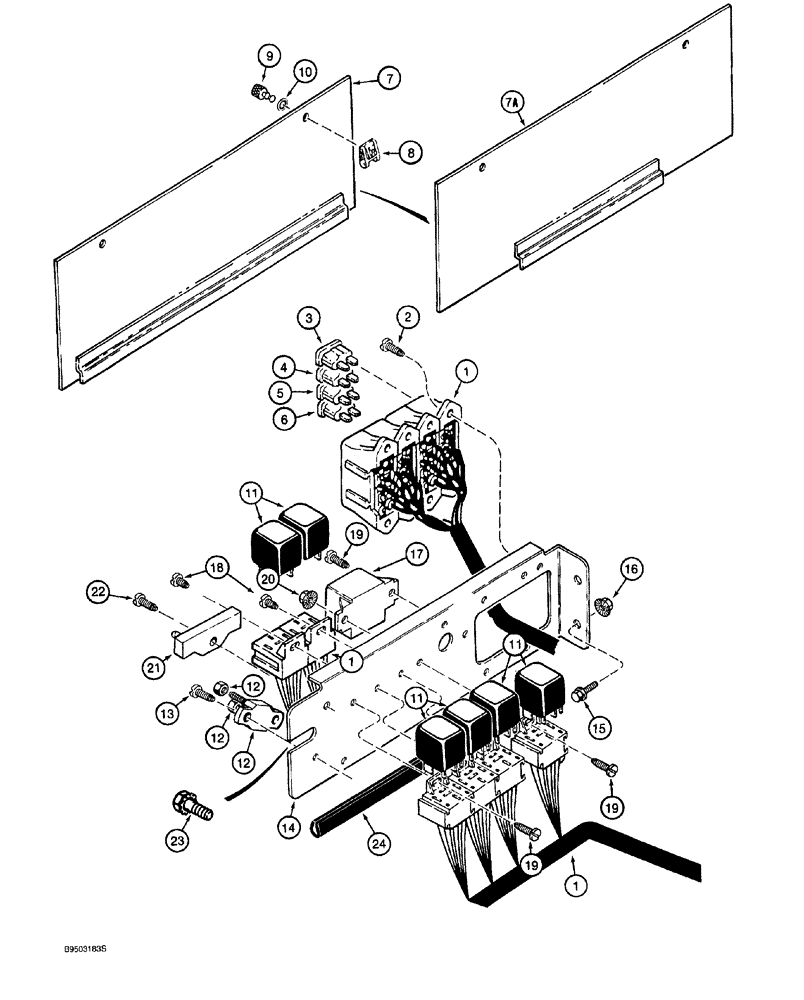

Запчасти Case 921 (4-010) - MAIN CAB HARNESS, POWER DISTRIBUTION CENTER (04) - ELECTRICAL SYSTEMS

1

1546473C2

HARNESS

main cab, see Figure 4-008 for serviceable rectifier, Serial Range: -JEE0041769

1шт.

For models with cabs P.I.N. JEE0041769 and after, order main cab harness from the 921B parts catalog, Bur 8-9660.

1шт.

2

261-13512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

self-tapping, pan Phillips, No. 10 NC x 3/4 inch

4шт.

3

A149796

FUSE

3 ampere, violet

1шт.

4

A149798

FUSE

5 ampere, tan

3шт.

5

A149800

FUSE,10 Amp

10 ampere, red

9-10шт.

6

A149801

FUSE,Lt Blue, 15 Amp

15 ampere, light blue

2шт.

7

1970033C2

COVER

fuse box, if used

1шт.

7a

130885A1

LARGE PLATE

PLATE, LARGE COVER fuse box, if used

1шт.

8

A36042

CLIP

RETAINER quarter turn

2шт.

9

1970049C2

STUD

fuse box

2шт.

10

1981869C1

WASHER

WASHER

2шт.

11

A186288

RELAY

mini, 24 volt

6шт.

12

S243558

CIRCUIT-BREAKER,12.5A

includes bracket and hardware, with plastic housing and seal, 12.5 ampere

1шт.

13

261-13512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

self-tapping, pan Phillips, No. 10 NC x 3/4 inch

2шт.

14

1987018C2

SUPPORT

HOUSING power distribution center

1шт.

15

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

2шт.

16

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

17

1546542C1

RELAY

sealed, 24 volt

1шт.

18

261-1356

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

self-tapping, pan Phillips, No. 10 NC x 3/8 inch

2шт.

19

261-13512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

self-tapping, pan Phillips, No. 10 NC x 3/4 inch

3шт.

20

231-51409

SERRATED NUT,Flg, USR, #10-24

1шт.

21

F22316

RESISTOR,75 Ohms 0.2 Amps DC

75 ohm

1шт.

22

261-13516

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

self-tapping, pan Phillips, No. 10 NC x 1 inch

1шт.

23

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

24

123367A1

TRIM edge, 9 inch (230 mm) long, cut from 1327666C1 bulk trim

1шт.

1327666C1

SEAL

TRIM edge, bulk, 600 inch (15240 mm) long

1шт.
