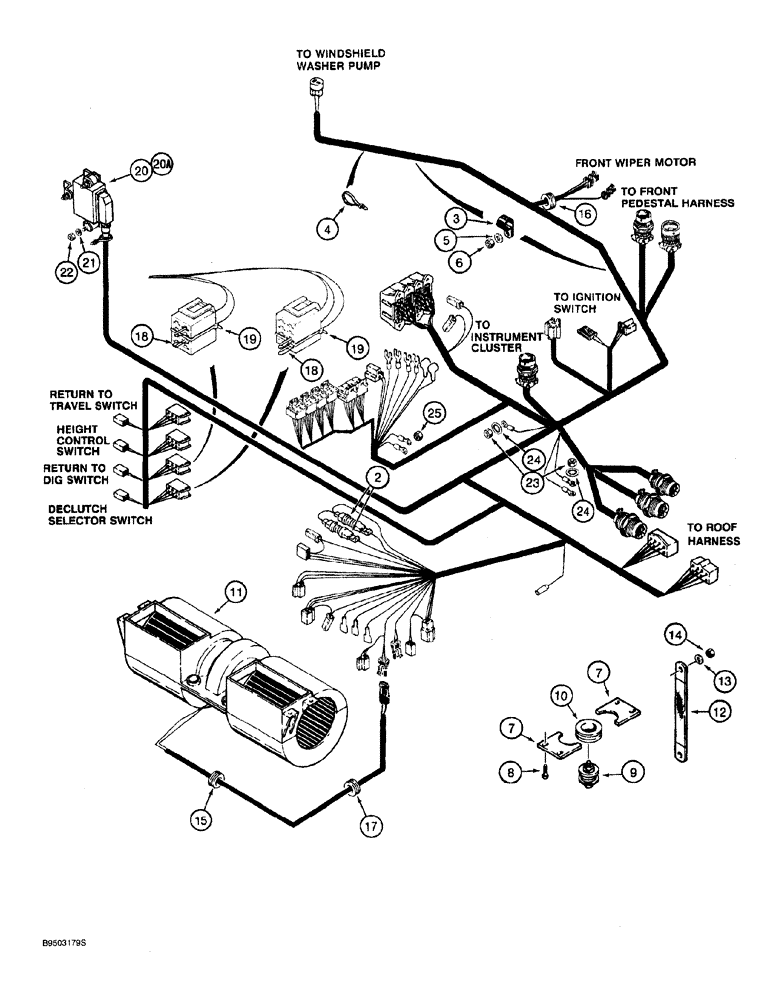

Запчасти Case 921 (4-008) - MAIN CAB HARNESS, TRANSMISSION CONTROL (04) - ELECTRICAL SYSTEMS

1

1546473C2

HARNESS

main cab, Includes: Ref. 2, Serial Range: -JEE0041769

1шт.

For models with cabs P.I.N. JEE0041769 and after, order main cab harness from the 921B parts catalog, Bur 8-9660.

1шт.

2

548239R2

RECTIFIER

DIODE nonlocking, 2-31/64 inch long

2шт.

3

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type

2шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie

1шт.

5

495-21031

WASHER,1/4"

flat, 5/16 x 3/4 x 1/16 inch

4шт.

6

7770

NUT,Hex, 1/4 - 20, Cl 5

hex, 1/4 inch NC

4шт.

7

1970030C1

LARGE PLATE

PLATE, LARGE harness guide

2шт.

8

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

9

A187523

JUNCTION BLOCK

junction, includes hardware, in floor of operators compartment

1шт.

10

A187875

GROMMET

rubber, cab floor

1шт.

11

REF

INSTRUCTION

BLOWER ASSY., cab, see Figure 4-052

1шт.

12

L126051

GROUND STRAP

1шт.

13

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

flat, brass, special

2шт.

14

L127555

NUT,Hex, 3/8" - 16

hex, brass, special

2шт.

15

96901C1

GROMMET

blower wire

1шт.

16

117975

GROMMET,5/8" ID x 1 3/8" x .062", Diag Cut

rubber, wiper wire

1шт.

17

1546537C1

GROMMET

wire

1шт.

18

L127013

ELECTRICAL WIRE

WIRE CABLE jumper, use when height control and return to transport option is not used

2шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, used with Ref. 18

2шт.

20

1546479C1

TESTER

CONTROL transmission, part number 6009 036 112 stamped on part, if used

1шт.

20

138496A1

TESTER

CONTROL transmission, part number 6009 054 065 stamped on part, if used

1шт.

20

138496A1R

REMAN ELECT CONTROL

921, N.A. Only

1шт.

20

138496A1C

CORE-ELECTRONIC CONT

Return Number, For N.A. Only

1шт.

21

492-11010

LOCK WASHER,#10

3шт.

22

225-14110

NUT,#10-24

3шт.

23

425-106

NUT,3/8"-16, Cl 5

Mounts ground wires to cab frame

3шт.

24

493-21039

LOCK WASHER,Int Tooth, 3/8"

internal tooth lock, mounts ground wires to cab frame, 3/8 inch, if used

3шт.

25

1999948C1

FLANGE NUT

hex flange, special, 5/16 inch

1шт.
