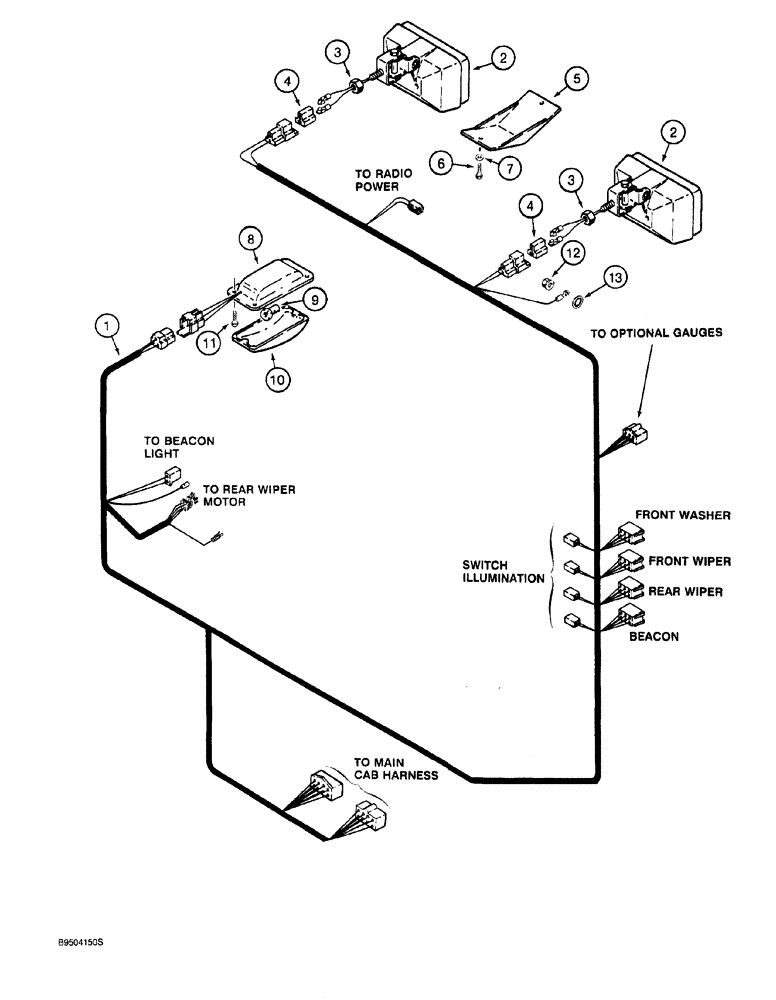

Запчасти Case 921 (4-006) - CAB ROOF HARNESS (04) - ELECTRICAL SYSTEMS

1

1546501C1

HARNESS

cab roof

1шт.

2

A187541

LIGHT ASSY.,Halogen, 24V, 70W, Clear

flood, see Figure 4-042

2шт.

3

425-148

JAM NUT,Jam, 1/2"-13, G5

2шт.

4

877291R1

ELEC CONNECTOR,Female

harness to flood lamp

2шт.

5

1339590C3

COVER

harness

1шт.

6

281-5658

SCREW,Hex Wshr Hd, #10 x 1/2"

self-tapping, hex washer head, No. 10 NC x 1/2 inch

2шт.

7

1990502C1

WASHER

flat, 17/64 x 13/16 x 5/64 inch

2шт.

A186296

LAMP

ASSY., dome, 24 volt, for service order 245659C91, 12 volt lamp assembly and 456602, 24 volt bulb

1шт.

245659C91

LAMP

ASSY., dome, 12 volt, service replacement, used with 24 volt bulb, Includes: Ref. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

BODY lamp

1шт.

9

456602

BULB,2C2R, #1692, 28V

dome lamp, 24 volt, No. 1692, type 2C2R, not part of 245659C91 lamp assembly

1шт.

10

245679C1

LENS

dome light, use with A186296 or 245659C91 lamp assembly

1шт.

11

265-1458

SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"

self-tapping, oval Phillips, No. 10-16 x 1/2 inch, cab frame

4шт.

12

425-106

NUT,3/8"-16, Cl 5

Mounts ground wires to cab frame

4шт.

13

493-21039

LOCK WASHER,Int Tooth, 3/8"

internal tooth lock, mounts ground wires to cab frame, 3/8 inch, if used

4шт.
