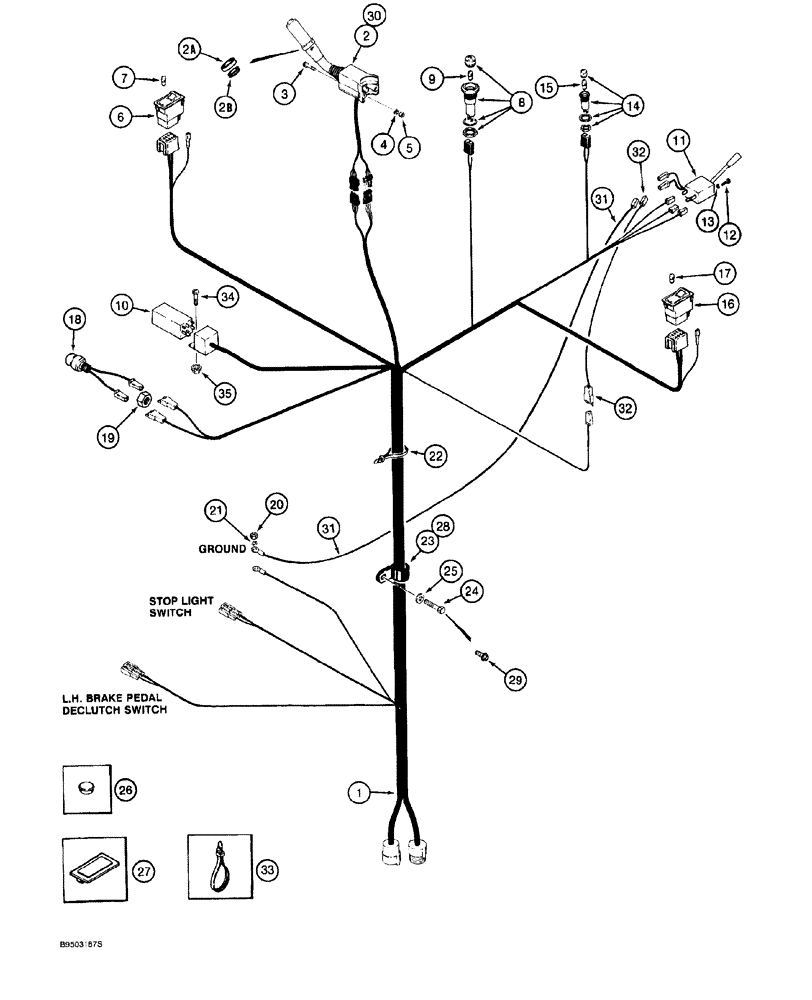

Запчасти Case 921 (4-004) - HARNESS PEDESTAL (04) - ELECTRICAL SYSTEMS

1

1546475C1

HARNESS

pedestal

1шт.

2

A187943

CONTROL

LEVER ASSY., transmission, no longer available, order Ref. 30, 189725A1, Includes: Ref. 2A, 2B

1шт.

2

245614A1R

REMAN ELECT CONTROL

921, REMAN for Part No. A187943

1шт.

2

245614A1C

CORE-ELECTRONIC CONT

Return Number

1шт.

2a

NSS

NOT SOLD SEPARAT

COVER

1шт.

2b

NSS

NOT SOLD SEPARAT

SEAL

1шт.

3

864-5020

HEX SOC SCREW,M5 x 20mm, Cl 8.8

2шт.

4

892-11005

LOCK WASHER,M5

2шт.

5

825-1405

NUT,M5, Cl 8

2шт.

6

1964836C1

SWITCH ASSY

rocker, parking brake, See Figure 9-082 for decal; Includes: Ref. 7

1шт.

7

926645C1

BULB,W5, 12V, 1.2W

W5/1.2 24V1.2W

1шт.

A186268

LAMP

ASSY., master warning, Includes: Ref. 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

BODY lamp, includes lens cap and mounting hardware

1шт.

9

S119827

BULB

lamp, No. 313

1шт.

10

A187940

FLASHER UNIT

turn signal

1шт.

11

1987555C1

SWITCH

combination, turn signal and horn, horn wires not used on models with horn button on steering column, order 195219A1 kit shown below to activate horn switch

1шт.

12

614-4012

BOLT,Hex, M4 x 0.7 x 12mm, Cl 8.8, Full Thd

2шт.

13

892-11004

LOCK WASHER,M4

2шт.

A187667

LAMP

ASSY., indicator, turn signal, Includes: Ref. 14, 15

1шт.

14

NSS

NOT SOLD SEPARAT

BODY lamp, includes lens cap and mounting hardware

1шт.

15

T39215

BULB

No. 1820

1шт.

16

A187984

SWITCH

rocker, flasher lamp, hazard, Includes: Ref. 17

1шт.

This switch does not come with any lens to cover the bulb, per supplier. Werds shows the lens cover for Ref. 16 to be 1546467C1.

1шт.

17

926645C1

BULB,W5, 12V, 1.2W

W5/1.2 24V1.2W

1шт.

18

A135520

SWITCH

SWITCH - cold start

1шт.

19

425-1110

NUT,5/8"-18, G5

1шт.

20

425-106

NUT,3/8"-16, Cl 5

If used

1шт.

21

493-21039

LOCK WASHER,Int Tooth, 3/8"

internal tooth lock, 3/8 inch, if used

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie

1шт.

23

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type, Replaced by Ref. 28, 515-23254

1шт.

24

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Replaced by Ref. 29, 281-14812

1шт.

25

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32"), If used

1шт.

26

353-406

PLUG,Dome, .625" hole, Nylon

button, 5/8 inch, used on units without Ref. 14 and 15, A187667

1шт.

27

245918C1

LENS

PLUG rectangular, used on units without Ref. 16, A187984

1шт.

28

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type

1шт.

29

281-14812

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

self-tapping, hex washer head, 5/16 NC x 3/4 inch

1шт.

30

189725A1

CONTROL

LEVER transmission control, Replaces: A187943, 134005A1 or 181627A1 levers

1шт.

If the dealer is looking for the boot cover for the kick-down switch on this lever, the boot kit is 252822A1.

1шт.

30

245614A1R

REMAN ELECT CONTROL

Reman for New PN 189725A1

1шт.

30

245614A1C

CORE-ELECTRONIC CONT

Return Number

1шт.

31

195275A1

HARNESS

WIRE jump, long, if used

1шт.

Part of kit P/N 195219A1

1шт.

32

195276A1

HARNESS

WIRE jump, short, if used

1шт.

Part of kit P/N 195219A1

1шт.

33

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, jump wires, if used

5шт.

Part of kit P/N 195219A1

1шт.

34

1276057C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

pan head, special, 10 x 3/8 inch

1шт.

35

231-51409

SERRATED NUT,Flg, USR, #10-24

1шт.

195219A1

KIT

horn switch modification, used with 1546475C1 pedestal harness with three connectors at combination turn signal/horn switch to activate horn switch on combination switch, which replaces horn button in center of steering wheel

1шт.

Includes: Ref. 31 - 33 in this figure, Ref. 1A in Figure 5-002, Ref. 25 in Figure 9-080 and an instruction sheet

1шт.
