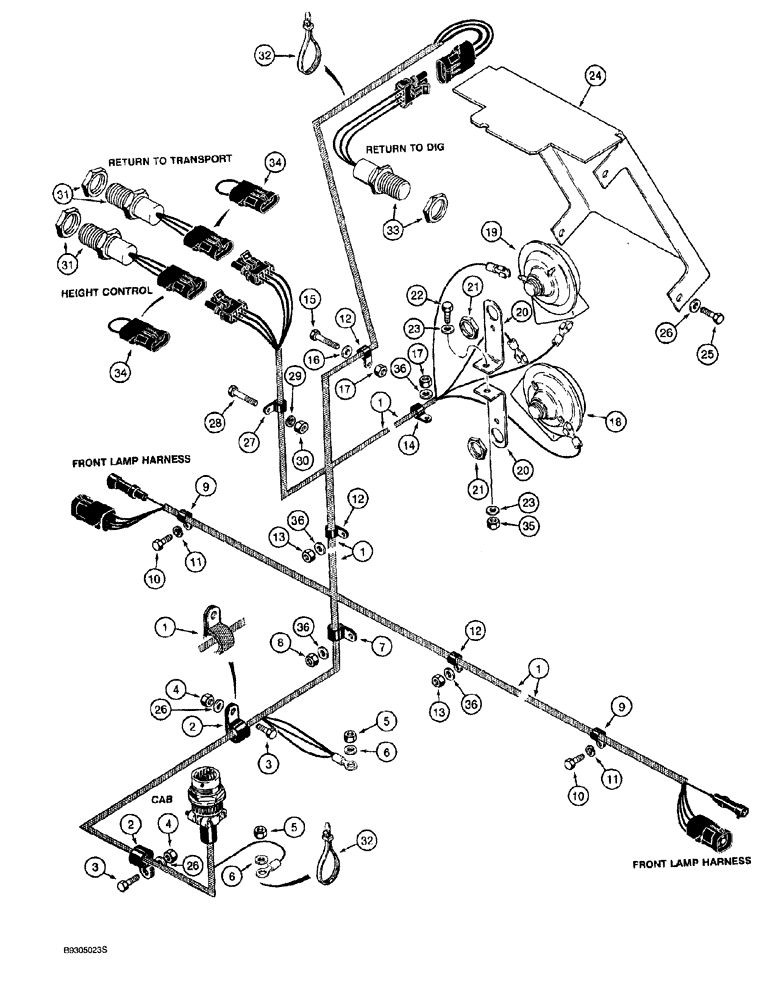

Запчасти Case 921 (4-002) - FRONT HARNESS HORNS AND SWITCHES (04) - ELECTRICAL SYSTEMS

1

L129872

HARNESS

front

1шт.

2

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type, Closed

2шт.

3

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

4

425-146

JAM NUT,3/8" - 16, Gr 5

2шт.

5

L127555

NUT,Hex, 3/8" - 16

hex, brass, special, front and rear frames ground

2шт.

6

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

flat, brass, special, front and rear frames ground

2шт.

7

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type

1шт.

8

231-1446

NUT,3/8" - 16, Gr 5

1шт.

9

129083R1

CLAMP

P-type, 5/8 inch ID

2шт.

10

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

2шт.

11

492-11038

LOCK WASHER,3/8"

2шт.

12

129083R1

CLAMP

P-type, 5/8 inch ID

3шт.

13

231-1446

NUT,3/8" - 16, Gr 5

2шт.

14

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

15

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

1шт.

16

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch)

1шт.

17

231-1446

NUT,3/8" - 16, Gr 5

2шт.

18

R45461

HORN

F note, 24 volt, right-hand

1шт.

19

D77650

HORN

A note, 24 volt, left-hand, Replaces: L10353

1шт.

20

L73799

BRACKET

mounting

2шт.

21

L30866

LOCK NUT

hex, special

2шт.

22

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

Replaces: 413-516

1шт.

23

495-11034

WASHER,5/16", SAE

(Flat, 11/32 x 11/16 x 1/16"), Replaces (1) 492-11038

2шт.

24

L129907

COVER

horn

1шт.

25

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

4шт.

26

496-21041

WASHER,13/32" x 13/16" x .089", HDN

Replaces 493-11039

6шт.

27

129083R1

CLAMP

P-type, 5/8 inch ID

1шт.

28

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

1шт.

29

492-11038

LOCK WASHER,3/8"

1шт.

30

425-106

NUT,3/8"-16, Cl 5

1шт.

31

1546498C1

SWITCH

proximity, height control and return to transport, includes hardware, Replaces: A186283

2шт.

32

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, return to dig wire and front harness at cab connector

1шт.

33

1546497C1

SWITCH

proximity, return to dig, includes hardware

1шт.

34

L127785

HARNESS

WIRE jumper, use when height control and return to transport option is not used

2шт.

35

425-105

NUT,5/16"-18, G5

1шт.

36

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.
