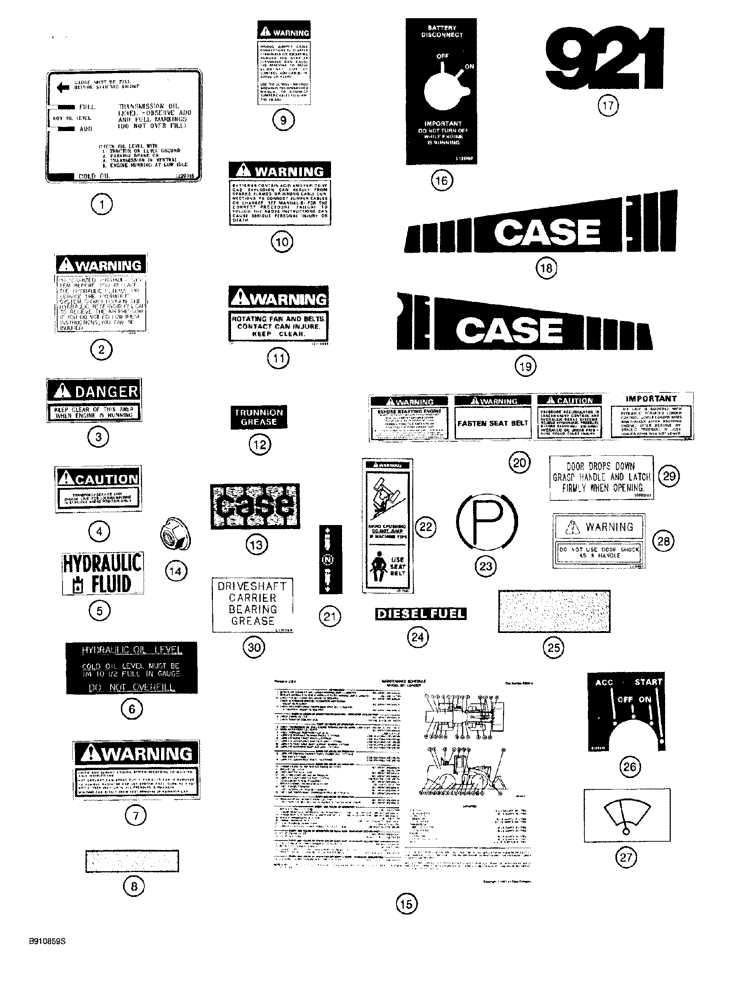

Запчасти Case 921 (9-082) - DECALS (09) - CHASSIS/ATTACHMENTS

1

L129715

DECAL

transmission oil level

1шт.

Part of kit P/N L36355

1шт.

2

321-6666

DECAL

warning, pressurized hydraulic system

3шт.

Part of kit P/N L36355

1шт.

3

321-3205

DECAL

danger, keep clear of this area when engine is running

2шт.

Part of kit P/N L36355

1шт.

4

321-3206

DECAL

caution, transport/service link

1шт.

5

321-6376

DECAL

hydraulic fluid

1шт.

Part of kit P/N L36355

1шт.

6

L117520

DECAL

hydraulic oil level

1шт.

Part of kit P/N L36355

1шт.

7

321-6672

DECAL

warning, check and service cooling system

1шт.

Part of kit P/N L36355

1шт.

8

D55216

PAD,2" x 9"

21шт.

Part of kit P/N L36355

1шт.

9

321-6872

DECAL

warning, wrong jumper cable connections to starter terminals, Replaces: 321-6718

1шт.

Part of kit P/N L36355

1шт.

10

321-6714

DECAL

warning, batteries contain acid and explosive gas

1шт.

Part of kit P/N L36355

1шт.

11

321-3596

DECAL

warning, rotating fan and belts

2шт.

Part of kit P/N L36355

1шт.

12

L116271

DECAL

trunnion grease

1шт.

Part of kit P/N L36355

1шт.

13

321-4739

EMBLEM

on grille

1шт.

Part of kit P/N L36355

1шт.

14

131-431

PUSH-ON NUT,Self, Threading, 1/4"

Push on type

2шт.

Part of kit P/N L36355

1шт.

15

8-80914

DECAL

maintenance schedule, supplied by parts and components

1шт.

Part of kit P/N L36355

1шт.

16

L126480

DECAL

battery disconnect

1шт.

Part of kit P/N L36355

1шт.

17

L129012

DECAL

921 , on loader arms

2шт.

Part of kit P/N L36355

1шт.

18

L129013

DECAL

case, with stripes, right-hand hood

1шт.

Part of kit P/N L36355

1шт.

19

L129014

DECAL

case, with stripes, left-hand hood

1шт.

Part of kit P/N L36355

1шт.

20

321-7028

DECAL

warning/caution/important, combination

1шт.

Part of kit P/N L36355

1шт.

21

1987168C1

DECAL

direction, speed

1шт.

Part of kit P/N L36355

1шт.

22

321-7030

WARNING DECAL

Do Not Jump - Use Seat Belt

1шт.

Part of kit P/N L36355

1шт.

23

1546467C1

DECAL

parking brake

1шт.

24

321-2601

DECAL

diesel fuel

1шт.

Part of kit P/N L36355

1шт.

25

S243101

WEAR PAD

anti-skid, counterweight

4шт.

Part of kit P/N L36355

1шт.

26

D123946

DECAL

ignition switch pattern

1шт.

Part of kit P/N L36355

1шт.

27

3231781R1

IDEOGRAM

DECAL front wiper switch

1шт.

28

L130061

DECAL

warning, do not use door shock as a handle

1шт.

Part of kit P/N L36355

1шт.

29

101811A1

DECAL

door drops down, grasp handle and latch firmly when opening

2шт.

30

L130060

BEARING CARRIER

driveshaft carrier bearing grease

1шт.

Part of kit P/N L36355

1шт.

L36355

DECAL

KIT, Includes: Ref. 1 - 3, 5 - 22, 24 - 26, 28, 30 on this figure and Ref. 6, 7, 23, 24 on Figure 9-080

1шт.
