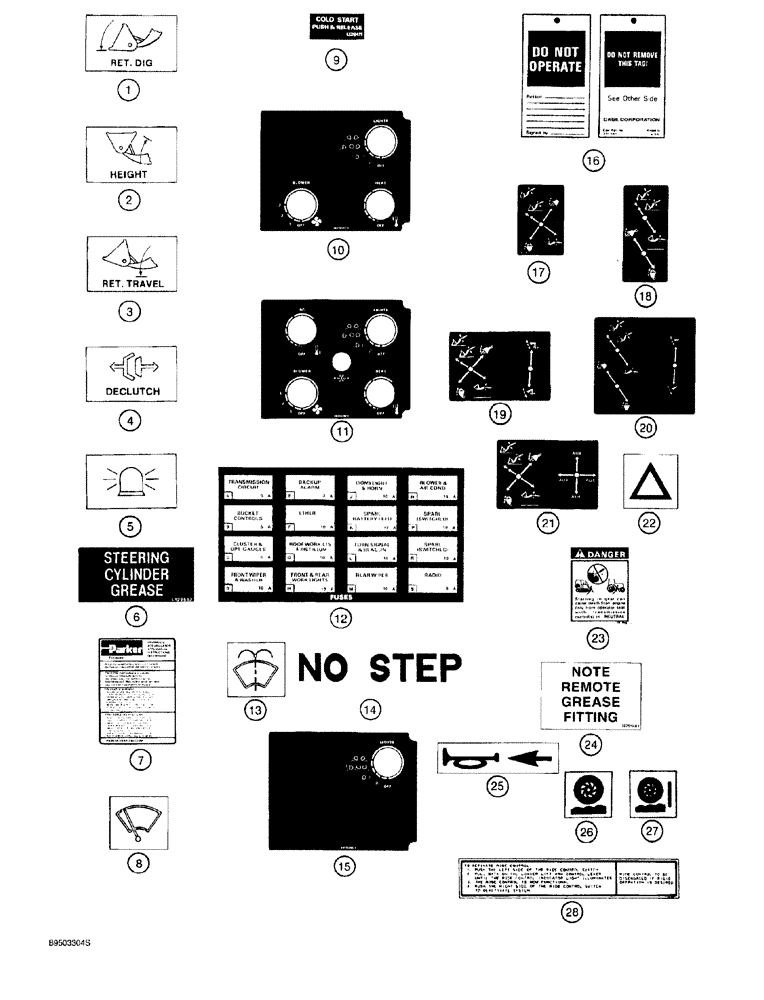

Запчасти Case 921 (9-080) - DECALS (09) - CHASSIS/ATTACHMENTS

1

A187691

IDEOGRAM

DECAL return-to-dig

1шт.

2

A187692

IDEOGRAM

DECAL height control

1шт.

3

A187693

IDEOGRAM

DECAL return to travel, bucket

1шт.

4

A187696

IDEOGRAM

DECAL declutch selector

1шт.

5

245917C1

DECAL

DECAL rotating beacon

1шт.

6

L129557

DECAL

steering cylinder grease

2шт.

Part of kit P/N L36355

1шт.

7

L129440

DECAL

Parker, hydraulic accumulator application instructions

2шт.

Part of kit P/N L36355

1шт.

8

3231781R1

IDEOGRAM

DECAL front wiper switch

1шт.

9

L126411

DECAL

cold start

1шт.

10

1977818C1

DECAL

environmental, cab models with heater

1шт.

11

1977819C1

DECAL

environmental, cab models with heater and air conditioning

1шт.

12

1990800C2

DECAL

fuses

1шт.

13

3231783R1

IDEOGRAM

DECAL windshield washer

1шт.

14

H239079

DECAL

no step, on air conditioning condenser

1шт.

15

1977820C1

DECAL

environmental, canopy models

1шт.

16

321-4614

TAG

TAG do not operate

1шт.

17

1977319C3

DECAL

loader control, single lever remote control valve with two-spool valve

1шт.

18

1977651C3

DECAL

loader control, dual lever remote control valve with two-spool valve

1шт.

19

1977321C3

DECAL

loader control, single lever and auxiliary single lever remote control valves with three-spool valve

1шт.

20

1977320C3

DECAL

loader control, dual lever and auxiliary single lever remote control valves with three-spool valves

1шт.

21

1977322C3

DECAL

loader control, two single lever remote control valves with four-spool valve

1шт.

22

245916C1

DECAL

SYMBOL DECAL hazard switch

1шт.

23

321-7040

DANGER DECAL

Warning, Engine can start with transmission in gear

1шт.

Part of kit P/N L36355

1шт.

24

117559A1

DECAL

note remote grease fitting

2шт.

Part of kit P/N L36355

1шт.

25

195274A1

DECAL

horn, if used

1шт.

26

191146A1

DECAL

ride control, if used

1шт.

27

191145A1

DECAL

ride control, on, if used

1шт.

28

133448A1

DECAL

ride control instructions, if used

1шт.

L36355

DECAL

KIT, Includes: Ref. 6, 7, 23, 24, on this figure and Ref. 1 - 3, 5 - 22, 24 - 26, 28, 30 on Figure 9-082

1шт.
