Запчасти Case 921 (9-078) - CANOPY WINDSHIELD AND WIPER KIT (09) - CHASSIS/ATTACHMENTS

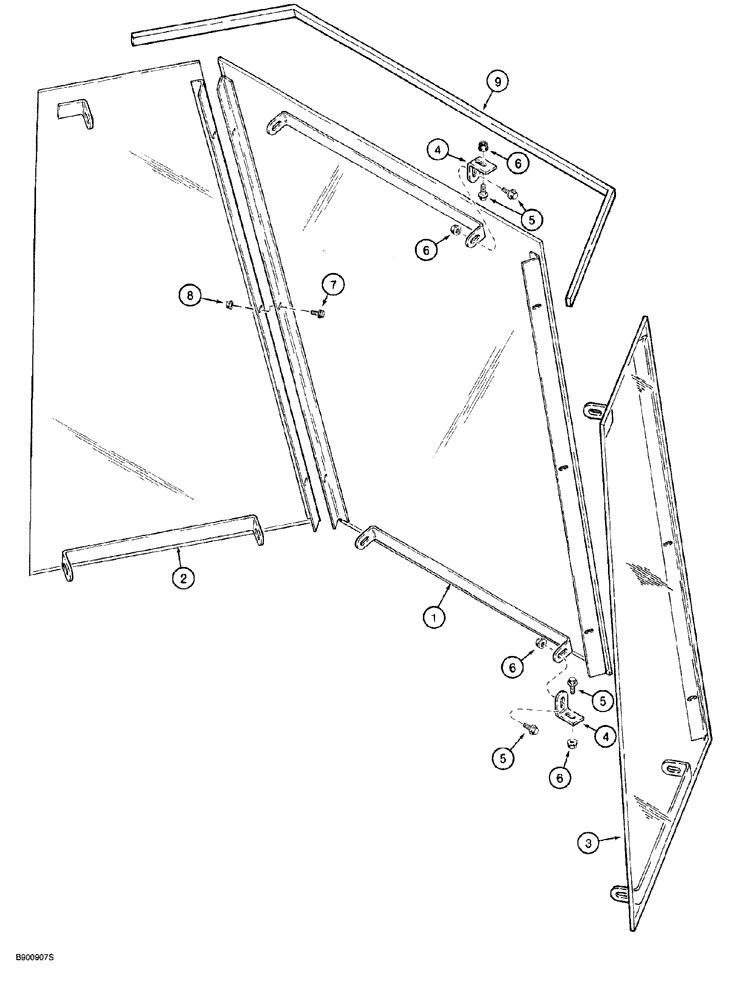

Схема запчастей Case 921 - (9-078) - CANOPY WINDSHIELD AND WIPER KIT (09) - CHASSIS/ATTACHMENTS
5
7
6
5
6
2
9
6
1
4
3
5
4
8
6

Артикул

Название

Примечание

Количество

L36339

SET

KIT windshield and wiper, Includes: Ref. 1 - 12 and an instruction sheet, also includes Ref. 1 - 18, 20 - 24 on Figure 4-048

1шт.

1

1344155C1

SHIELD

WIND canopy, includes brackets

1шт.

2

1344156C1

GLASS

includes brackets, side, left-hand

1шт.

3

1344157C1

GLASS

includes brackets, side, right-hand

1шт.

4

1344152C1

ANGLE

BRACKET

10шт.

5

409-7612

BOLT,3/8"-16 x 1.09" OAL

20шт.

6

231-5146

FLANGE NUT,3/8"-16

20шт.

7

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

6шт.

8

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

9

1344330C1

SEAL, GLASS

adhesive-backed, 58 inch (1475 mm) long, cut from 1983809C1 bulk seal, see below

1шт.

10

A187621

SWITCH

SWITCH - rocker, front wiper, illustrated on Figure 4-026

1шт.

11

3231781R1

IDEOGRAM

DECAL front wiper switch, illustrated on Figure 9-082

1шт.

12

A149800

FUSE,10 Amp

red, 10 ampere, illustrated on Figure 4-010

1шт.

1983809C1

SEAL

bulk, adhesive backed, 600 inch (15240 mm) long

1шт.

Выбрано товаров: 14
