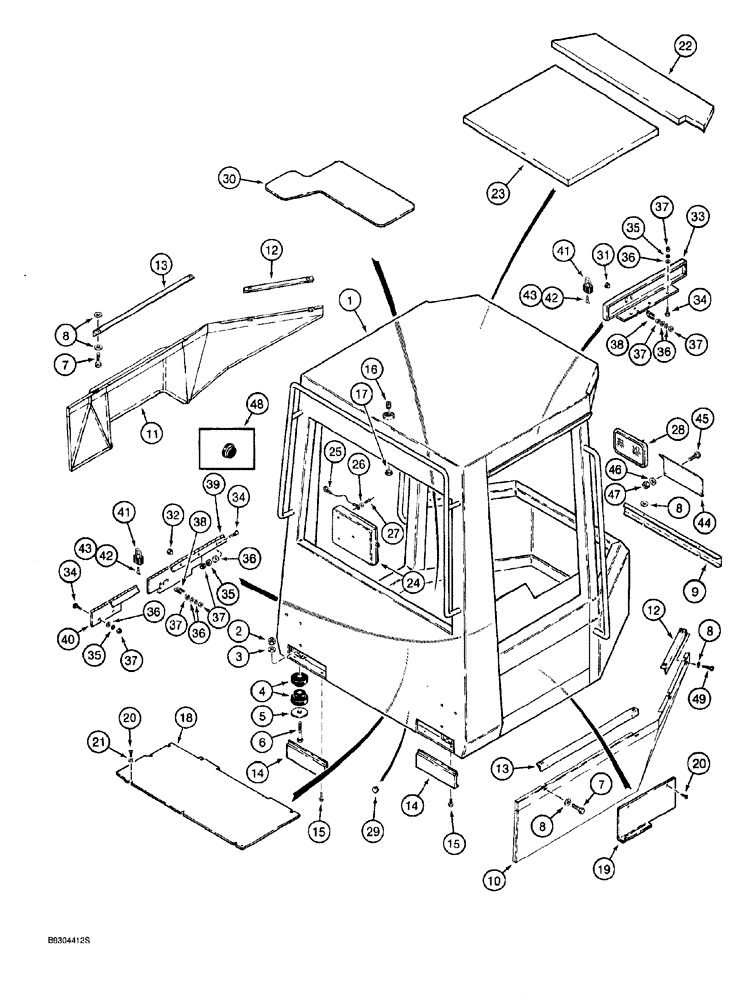

Запчасти Case 921 (9-076) - CANOPY (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CANOPY, ROPS, machinery item, order from Machinery Price List

1шт.

1

197815A1

PROTECTION

CANOPY shell, service replacement

1шт.

2

329-1014

NUT,7/8"-9, G8

4шт.

3

27914R1

WASHER,15/16" x 2 1/4" x .219", HDN

flat, hardened, 15/16 x 1-3/4 x 7/32 inch

4шт.

4

R54331

HITCH DAMPER

MOUNT rubber, canopy support

8шт.

5

1332154C1

WASHER,23mm ID x 95.3mm OD x 12.7mm Thk

WASHER spacer, special, canopy mounting

4шт.

6

326-1488

BOLT,Hex, 7/8" - 9 x 5-1/2", Gr 8

4шт.

7

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

14шт.

8

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

22шт.

9

L129571

ANGLE BAR

PANEL center, lower

1шт.

10

L129870

COVER

lower right-hand

1шт.

11

104733A1

GUARD ASSY.

COVER lower left-hand, Replaces: L129573

1шт.

12

L129563

ANGLE BAR

BRACKET cover mounting, front

2шт.

13

L129561

ANGLE BAR

BRACKET cover mounting, rear

2шт.

14

1339928C2

COVER

rear, mounting access

2шт.

15

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

16

221-846

PLUG,Hex Soc, 1"-11 1/2

hex socket, 1 inch PT

1шт.

17

353-591

PLUG,2

recessed head, inch 2

1шт.

18

1973523C3

COVER

rear, seat support

1шт.

19

1973535C3

COVER

access, right hand

1шт.

20

1276051C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1"

pan Phillips, special, 1/4 NC x 1 inch

11шт.

21

1990503C1

WASHER

flat, special

7шт.

22

97381C2

PADDING

HEADLINER canopy, front

1шт.

23

1973533C2

PADDING

HEADLINER vinyl, center

1шт.

24

R46464

CASE

BOX operators manual

1шт.

25

D126821

CABLE

CORD manual retaining, Replaces: R46465

1шт.

26

495-31022

WASHER,#10

3шт.

27

151-544

RIVET,Pop, 3/16" x .515"

break mandrel, 3/16 x 1/2 inch

3шт.

28

A177462

MIRROR

rearview, includes mounting hardware, Replaces: L74714

1шт.

29

353-411

PLUG,Dome, 1.000" hole, Nylon

Canopy frame

1шт.

30

L126989

FLOOR MAT

canopy, self-adhesive, non-skid

1шт.

31

353-402

PLUG,Dome, .375" hole, Nylon

6шт.

32

353-404

PLUG,Dome, .500" hole, Nylon

1шт.

33

1977796C2

COVER

gauge panel, overhead

1шт.

34

412-410

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 5/8", Gr 2

carriage, 1/4 NC x 5/8 inch, grade 2

8шт.

35

492-11025

LOCK WASHER,1/4"

8шт.

36

495-21031

WASHER,1/4"

flat, 5/16 x 3/4 x 1/16 inch

24шт.

37

425-144

JAM NUT,Jam, 1/4"-20, G5

24шт.

38

1977938C1

U-BOLT,1/4" - 20 x 1 7/16", Carbon Steel

BOLT "U" cover

4шт.

39

1977787C1

PANEL ASSY.

COVER instrument panel, right-hand console

1шт.

40

1977792C1

COVER ASSY

control panel, right-hand console

1шт.

41

D93753

PADLOCK

includes keys, if used, Includes: Ref. 42, 43

2шт.

42

D93751

SET OF 2 KEYS

for Yale padlock only, if used

2шт.

43

R29555

KEY

for Master padlock only, , if used

2шт.

44

1977996C1

COVER

front panel, models without windshield and wiper kit

1шт.

45

1276051C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1"

pan Phillips, special, 1/4 NC x 1 inch

4шт.

46

495-21031

WASHER,1/4"

flat, 5/16 x 3/4 x 1/16 inch

4шт.

47

425-104

NUT,1/4"-20, Cl 5

4шт.

48

353-408

PLUG,Dome, .750" hole, Nylon

button, 3/4 inch, floor

4шт.

48

353-409

PLUG,Dome, .812" hole, Nylon

button, canopy floor, inside canopy door

1шт.

48

353-411

PLUG,Dome, 1.000" hole, Nylon

Upper RH front and seat pedestal, LH side

2шт.

49

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

hex, 5/16 NC x 1/2 inch

4шт.

R46463

SCREW,0.18" x 0.75"

manual retention, two-piece

1шт.
