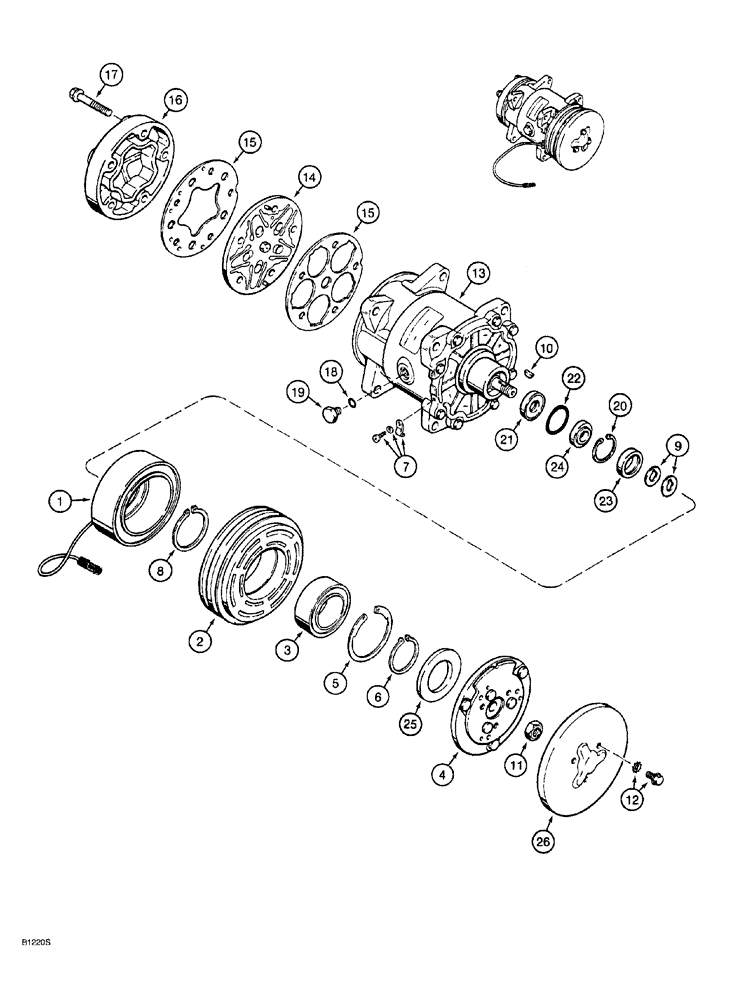

Запчасти Case 921 (9-074) - AIR CONDITIONING COMPRESSOR ASSEMBLY, PRIOR TO P.I.N. JEE0040380 (09) - CHASSIS/ATTACHMENTS

97179C2

COMPRESSOR

ASSY., air conditioning, Includes: Ref. 1 - 26

1шт.

1977652C1

CLUTCH

ASSY., compressor, component parts not serviced separately, Includes: Ref. 1 - 24

1шт.

1

NSS

NOT SOLD SEPARAT

COIL ASSY., field, 24 volt, complete

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY ASSY., drive, two-groove, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

BEARING pulley

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE front

1шт.

5

NSS

NOT SOLD SEPARAT

RING snap

1шт.

A49673

KIT

accessory, clutch, Includes: Ref. 6 - 12

1шт.

6

NSS

NOT SOLD SEPARAT

RING snap, pulley

1шт.

7

NSS

NOT SOLD SEPARAT

CLAMP lead wire, includes hardware

1шт.

8

NSS

NOT SOLD SEPARAT

RING snap, clutch

1шт.

9

NSS

NOT SOLD SEPARAT

SHIM clulch

1шт.

10

NSS

NOT SOLD SEPARAT

KEY clutch drive

1шт.

11

NSS

NOT SOLD SEPARAT

NUT retainer

1шт.

12

NSS

NOT SOLD SEPARAT

BOLT hex flange, includes external tooth lockwasher

1шт.

13

NSS

NOT SOLD SEPARAT

BLOCK compressor

1шт.

14

NSS

NOT SOLD SEPARAT

PLATE ASSY., valve, Includes: Ref. 15

1шт.

15

A49668

GASKET KIT

valve plate, set of two

1шт.

16

1958959C1

COVER

HEAD cylinder, Includes: Ref. 15

1шт.

17

NSS

NOT SOLD SEPARAT

BOLT hex flange head

5шт.

18

A49666

O-RING

rubber

3шт.

19

A49667

PLUG

hex, filler

1шт.

A49665

SEAL KIT

seal, compressor, Includes: Ref. 20 - 23

1шт.

20

A49664

CIRCLIP

RING snap

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL shaft

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING housing

1шт.

23

NSS

NOT SOLD SEPARAT

RING felt

1шт.

24

NSS

NOT SOLD SEPARAT

SEAT seal, shaft

1шт.

25

A49674

BEARING COVER,36 mm ID x 62 mm OD x 1.2, 4.2 mm

dust, bearing

1шт.

26

1958961C1

COVER

dust, clutch

1шт.
