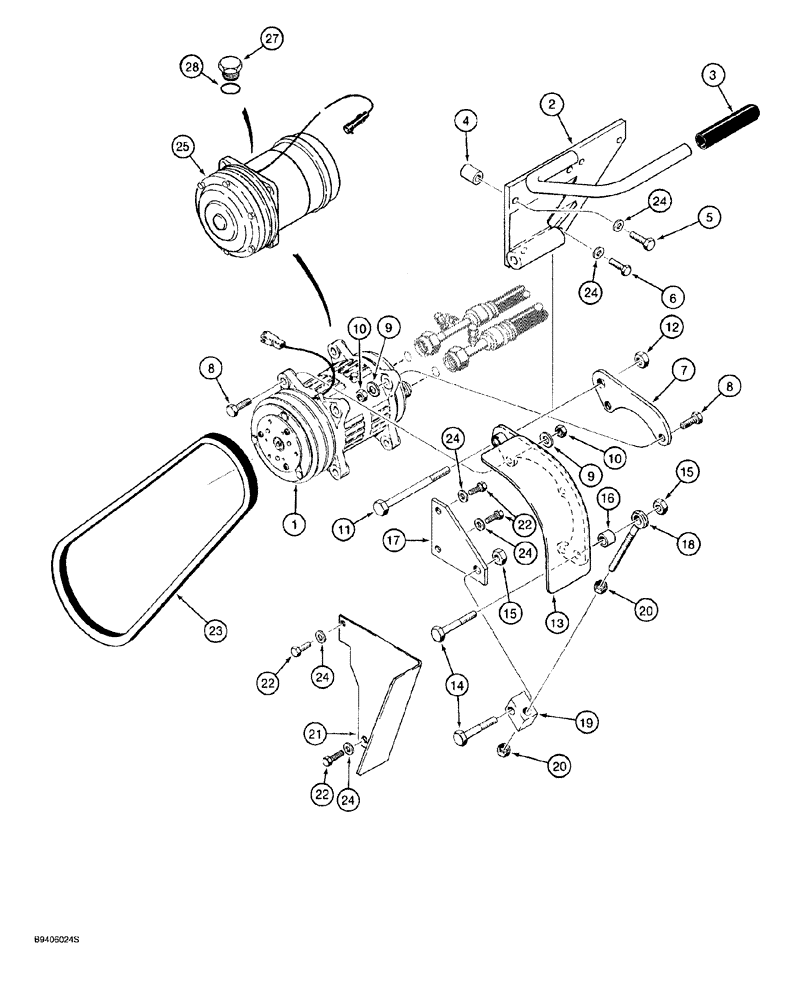

Запчасти Case 921 (9-072) - AIR CONDITIONING COMPRESSOR MOUNTING, WITH ROD COMPRESSOR BELT TENSIONER (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
97179C2
COMPRESSOR
ASSY., air conditioning, see Figure 9-074, Serial Range: -JEE0040380
1шт.
2
90-7337T3
BRACKET
MOUNT compressor, Replaces: 90-7337T2, no longer available, order 90-7737T1, Ref. 5A shown on Figure 9-073A
1шт.
3
70-5846T1
GRIP
handle, if used
1шт.
4
90-7181T1
SPACER
compressor mount
2шт.
5
814-10080
BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8
2шт.
6
614-10040
BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd
2шт.
7
90-3554T1
SUPPORT
BRACKET compressor, front
1шт.
8
614-10035
BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd
4-5шт.
9
495-21044
WASHER,3/8"
(flat, 7/16 x 1 x 5/64 inch)
4-5шт.
10
825-1410
NUT,M10, Cl 8
4-5шт.
11
814-12140
BOLT,Hex, M12 x 1.75 x 140mm, Cl 8.8
1шт.
12
832-10412
NUT,M12 x 1.75, Cl 8
1шт.
13
90-7323T2
SUPPORT
BRACKET compressor mounting, rear
1шт.
14
413-840
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5
hex, 1/2 NC x 2-1/2 inch
2шт.
15
231-4218
LOCK NUT,1/2"-13, GB
hex, self-locking, 1/2 inch NC
2шт.
16
90-7188T1
SPACER
adjusting rod
1шт.
17
90-7186T1
PLATE
adjusting block
1шт.
18
22-1086T1
ROD
EYEBOLT compressor belt adjusting
1шт.
19
1-6899T1
BLOCK
compressor belt adjusting
1шт.
20
425-118
NUT,1/2"-20, G5
2шт.
21
90-7311T1
PROTECTOR
GUARD compressor belt
1шт.
22
614-10020
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd
4шт.
24
496-21041
WASHER,13/32" x 13/16" x .089", HDN
8шт.
1990760C1
COMPRESSOR
ASSY., air conditioning, Includes: Ref. 25 - 28, Start Serial: JEE0040380
1шт.
86983967R
REMAN-COMPRESSOR,24V, W/ Clutch, W/ Pulley
921 Start Serial JEE0040380, Reman for new P/N 1990760C1
1шт.
86983967C
CORE-COMPRESSOR
Return Number
1шт.
25
NSS
NOT SOLD SEPARAT
COMPRESSOR air conditioning, components not serviced separately, order 1990760C1
1шт.
26
138886A1
CLUTCH
compessor, not shown
1шт.
27
A49667
PLUG
hex, oil filler
1шт.
Выбрано товаров: 31
