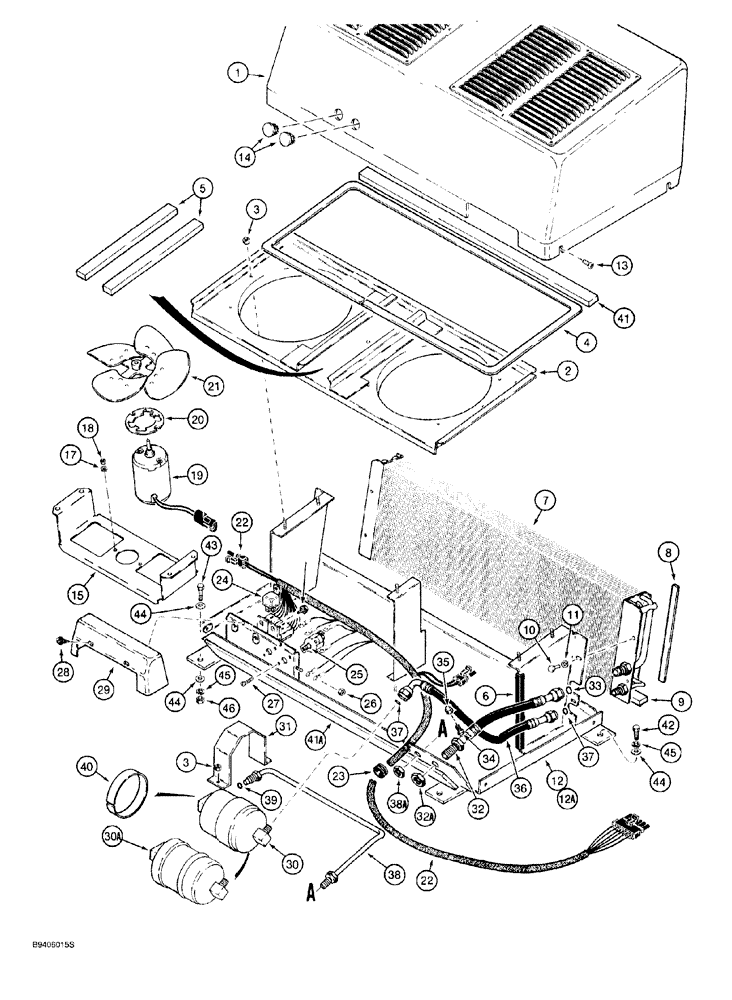

Запчасти Case 921 (9-071A) - AIR CONDITIONING CONDENSER AND MOUNTING, CONDENSER HARNESS WITH TWO RELAYS (09) - CHASSIS/ATTACHMENTS

97182C6

CAPACITOR

CONDENSER ASSY., air conditioning, Includes: Ref. 1 - 41A, Replaces: 97182C4, 97182C5 (Case part number stamped on vendor ID plate)

1шт.

1

1977874C1

COVER ASSY

condenser unit

1шт.

2

1974863C2

PROTECTOR

SHROUD fan

1шт.

3

425-104

NUT,1/4"-20, Cl 5

15шт.

4

1977898C1

SEAL

SEAL 80 inch (2032 mm) long, cut from 198573C1 bulk seal, shroud perimeter, see below

1шт.

5

1977899C1

SEAL

SEAL 41-1/8 inch (1045 mm) long, cut from 198573C1 bulk seal, shroud baffle, see below

2шт.

6

1327979C1

MOLDING

TRIM edge, 6 inch (152 mm) long, cut from 1330108CX bulk trim, see below

1шт.

7

97213C1

CAPACITOR

CONDENSER air conditioning, used on 97182C5, Serial Range: -JEE0040380

1шт.

7a

97213C2

CONDENSER

air conditioning, used on 97182C6, Start Serial: JEE0040380

1шт.

8

1977901C1

SEAL

SEAL 9 inch (227 mm) long, cut from 198573C1 bulk seal, condenser flange, see below

2шт.

9

1977900C1

SEAL

SEAL 31 inch (787 mm) long, cut from 1977902CX bulk seal, condenser, lower, see below

1шт.

10

463-1258

SCREW,Hex Hd, 1/4"-20 x 1/2"

4шт.

11

492-11025

LOCK WASHER,1/4"

4шт.

12

138583A1

SUPPORT

PLATE used on 97182C5 condenser, Serial Range: -JEE0040380

1шт.

12a

178468A1

LARGE PLATE

PLATE, LARGE support, used on 97182C6 condenser, Start Serial: JEE0040380

1шт.

13

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

4шт.

14

H435478

HOLE PLUG BUTTON,1"

button, 1 inch

2шт.

15

137511A1

GUARD

MOUNT fan motor

2шт.

17

492-11010

LOCK WASHER,#10

4шт.

18

225-14210

NUT,#10-32

4шт.

19

1977427C2

MOTOR, ELECTRIC

fan, 24 volt

2шт.

19

1977427C2R

REMAN-ELECTRIC MOTOR

921

2шт.

19

1977427C2C

CORE-ELECTRIC MOTOR

Return Number

2шт.

20

138897A1

SPACER

SHIM motor

2шт.

21

1977731C1

FAN

BLADE, 9 inch diameter

2шт.

22

137333A1

HARNESS

condenser

1шт.

23

248-1243

GROMMET,1/2" ID x 13/16" Groove Dia, Diag Cut

1шт.

24

A186288

RELAY

mini, 24 volt

2шт.

25

A187825

RELAY

BREAKER circuit, 10 ampere

2шт.

26

225-14210

NUT,#10-32

1шт.

27

440-10812

SCREW,Cross Pan Hd, #8-32 x 3/4"

4шт.

28

459-1108

SCREW,Slotted Pan Hd, #10-32 x 1/2"

4шт.

29

1977847C1

COVER

relay

1шт.

30

143469C2

RESERVOIR

RECEIVER-DRIER air conditioning system, used on 97185C5 condenser, Serial Range: -JEE0040380

1шт.

30a

1990758C2

RECEIVER-DRYER

air conditioning, used on 97185C6 condenser, Start Serial: JEE0040380

1шт.

31

1974861C1

SUPPORT

BRACKET receiver-drier

1шт.

32

1954630C4

HOSE

15 inch (380 mm) long, supply, attaches to compressor hose, Includes: Ref. 32A - 34

1шт.

32a

NSS

NOT SOLD SEPARAT

NUT special, included with hose

1шт.

33

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

34

1250594C1

CORE

VALVE hose

1шт.

35

178460A1

PLUG

CAP valve, Replaces: 222-981

1шт.

36

1954627C2

HOSE

19-11/16 inch (500 mm) long, condenser to receiver-drier, Includes: Ref. 37

1шт.

37

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

2шт.

38

1954628C3

TUBE

TUBE return, Includes: Ref. 38A, 39

1шт.

38a

425-1510

JAM NUT,Jam, 5/8"-18, G5

Hex

1шт.

39

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

40

180623C1

SEAL

SEAL 10-11/16 inch (271 mm) long, cut from 198530C1 bulk strip, see below

1шт.

41

1977897C1

SEAL

SEAL 29-1/2 inch (750 mm) long, cut from 1977902CX bulk seal, see below

1шт.

41a

NSS

NOT SOLD SEPARAT

FOAM urethane, support plate insulator, lower rear, cut from 1999409C1 bulk, see below

1шт.

42

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

43

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

44

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch)

6шт.

45

492-11038

LOCK WASHER,3/8"

4шт.

46

425-106

NUT,3/8"-16, Cl 5

2шт.

198530C1

SEAL

SEAL bulk, 7/8 (22) wide x 600 inch (15240 mm) long

1шт.

1999409C1

FOAM

urethane, 12 inch (305 mm) long

1шт.

1330108CX

SEAL,304.8mm L

TRIM bulk, edge, 600 inch (15240 mm) long

1шт.

198573C1

STRIP

SEAL bulk, 1/2 (13) wide x 600 inch (15240 mm) long

1шт.

1977902CX

SEAL

bulk, 1 (25) wide x 600 inch (15240 mm) long

1шт.
