Запчасти Case 921 (9-068) - AIR CONDITIONING CONDENSER AND MOUNTING, CONDENSER HARNESS WITH THREE RELAYS (09) - CHASSIS/ATTACHMENTS

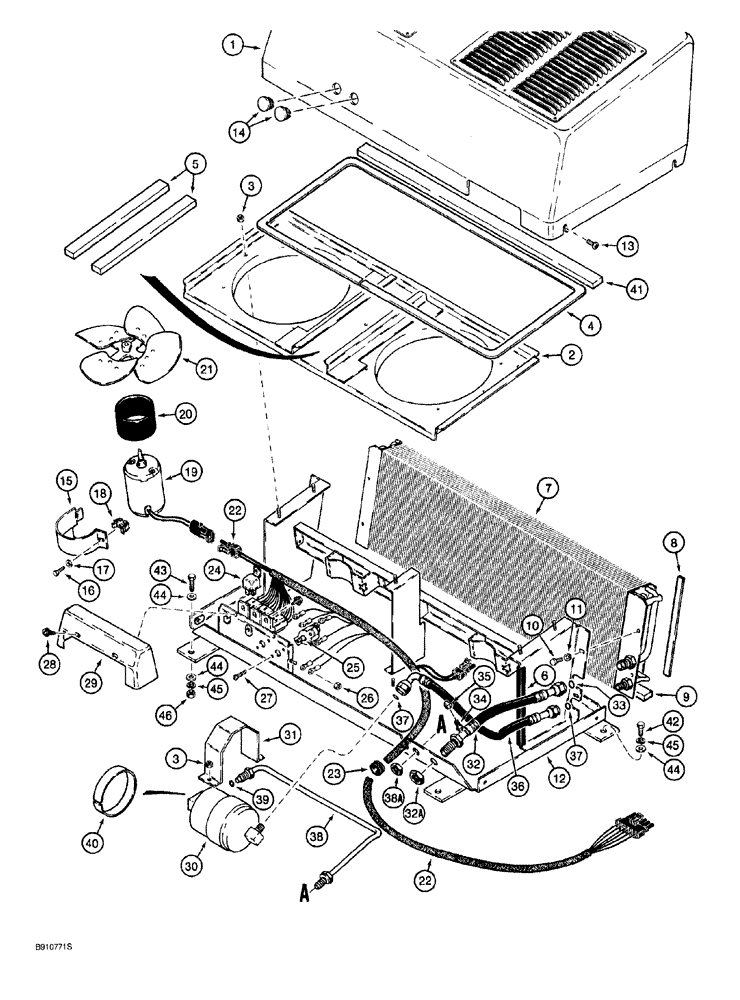

Схема запчастей Case 921 - (9-068) - AIR CONDITIONING CONDENSER AND MOUNTING, CONDENSER HARNESS WITH THREE RELAYS (09) - CHASSIS/ATTACHMENTS
42
37
30
1
2
6
36
43
35
45
38a
29
10
32a
20
3
26
14
44
37
22
33
3
25
13
44
31
4
32
44
19
40
17
45
16
22
18
7
8
5
12
15
38
23
39
9
27
46
21
28
24
41
34
11

Артикул

Название

Примечание

Количество

97182C4

CAPACITOR

CONDENSER ASSY., air conditioning, Includes: Ref. 1 - 41, no longer available, order 97182C6, see Figure 9-071A (Case part number stamped on vendor ID plate)

1шт.

1

1977874C1

COVER ASSY

condenser unit

1шт.

2

1974863C2

PROTECTOR

SHROUD fan, Replaces: 1974863C1

1шт.

3

425-104

NUT,1/4"-20, Cl 5

7шт.

4

1977898C1

SEAL

SEAL 80 inch (2032 mm) long, cut from 198573C1 bulk seal, see below, shroud perimeter

1шт.

5

1977899C1

SEAL

SEAL 41-1/8 inch (1045 mm) long, cut from 198573C1 bulk seal, see below, shroud baffle

2шт.

6

1327979C1

MOLDING

TRIM edge, 6 inch (152 mm) long, cut from 1330108CX bulk trim, see below

1шт.

7

97213C1

CAPACITOR

CONDENSER air conditioning

1шт.

8

1977901C1

SEAL

SEAL 9 inch (227 mm) long, cut from 198573C1 bulk seal, see below, condenser flange

2шт.

9

1977900C1

SEAL

SEAL 31 inch (787 mm) long, cut from 1977902CX bulk seal, see below, condenser, lower

2шт.

10

463-1258

SCREW,Hex Hd, 1/4"-20 x 1/2"

4шт.

11

492-11025

LOCK WASHER,1/4"

4шт.

12

1974859C1

SUPPORT

PLATE, no longer available, order 138583A1, Ref. 12, shown on Figure 9-071A

1шт.

13

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

4шт.

14

H435478

HOLE PLUG BUTTON,1"

button, 1 inch

2шт.

15

1975923C1

MOUNTING CLIP

BRACKET fan

2шт.

16

163-14

SCREW,Hex Wshr Hd, 1/4" - 20 x 1"

machine, hex washer head, 1/4 inch NC x 1 inch

2шт.

17

496-21028

WASHER,.281" x 5/8" x .075", HDN

flat, hardened, 9/32 x 5/8 x 5/64 inch

2шт.

18

131-852

SPRING NUT,Ret, 1/4"-20

Speed grip

2шт.

19

1977427C2

MOTOR, ELECTRIC

fan, 24 volt

2шт.

19

1977427C2R

REMAN-ELECTRIC MOTOR

921

2шт.

19

1977427C2C

CORE-ELECTRIC MOTOR

Return Number

2шт.

20

D83118

ISOLATOR

INSULATOR motor

2шт.

21

1977731C1

FAN

BLADE, 9 inch diameter, condenser

2шт.

22

137333A1

HARNESS

condenser, Replaces: A187775

1шт.

23

117963

GROMMET,1/2" ID x 1 1/16" x .062"

rubber, 1/2 x 1-1/16 x 5/16 inch

1шт.

24

A186288

RELAY

mini, 24 volt

3шт.

25

A187825

RELAY

BREAKER circuit, 10 ampere

2шт.

26

225-14210

NUT,#10-32

1шт.

27

340-10812

SCREW,Cross Pan Hd, #8-32 x 3/4"

machine, pan Phillips, No. 8 NC x 3/4 inch

4шт.

28

459-1108

SCREW,Slotted Pan Hd, #10-32 x 1/2"

4шт.

29

1977847C1

COVER

relay

1шт.

30

143469C2

RESERVOIR

RECEIVER-DRIER air conditioning system

1шт.

31

1974861C1

SUPPORT

BRACKET receiver-drier

1шт.

32

1954630C3

HOSE

15 inch (380 mm) long, supply, attaches to compressor hose, Includes: Ref. 32A - 35

1шт.

32a

NSS

NOT SOLD SEPARAT

NUT special, included with hose

1шт.

33

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

34

1250594C1

CORE

VALVE hose

1шт.

35

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

hex, 7/16-20 inch female 45° flare

1шт.

36

1954627C2

HOSE

19-11/16 inch (500 mm) long, condenser, to receiver-drier, Includes: Ref. 37

1шт.

37

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

2шт.

38

1954628C3

TUBE

TUBE return, Includes: Ref. 38A, 39

1шт.

38a

425-1510

JAM NUT,Jam, 5/8"-18, G5

Hex

1шт.

39

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

40

180623C1

SEAL

SEAL 10-11/16 inch (271 mm) long, cut from 198530C1 bulk strip, see below

1шт.

41

1977897C1

SEAL

SEAL 29-1/2 inch (750 mm) long, cut from 1977902CX bulk seal, see below

1шт.

42

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

43

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

44

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch)

6шт.

45

492-11038

LOCK WASHER,3/8"

4шт.

46

425-106

NUT,3/8"-16, Cl 5

2шт.

198530C1

SEAL

SEAL bulk, 7/8 (22) wide x 600 inch (15240 mm) long

1шт.

1330108CX

SEAL,304.8mm L

TRIM bulk, edge, 600 inch (15240 mm) long

1шт.

198573C1

STRIP

SEAL bulk, 1/2 (13) wide x 600 inch (15240 mm) long

1шт.

1977902CX

SEAL

bulk, 1 (25) wide x 600 inch (15240 mm) long

1шт.
