Запчасти Case 921 (9-067A) - AIR CONDITIONING SYSTEM, COMPRESSOR TO CONDENSER AND EVAPORATOR CORE, P.I.N. JEE0040380 AND AFTER (09) - CHASSIS/ATTACHMENTS

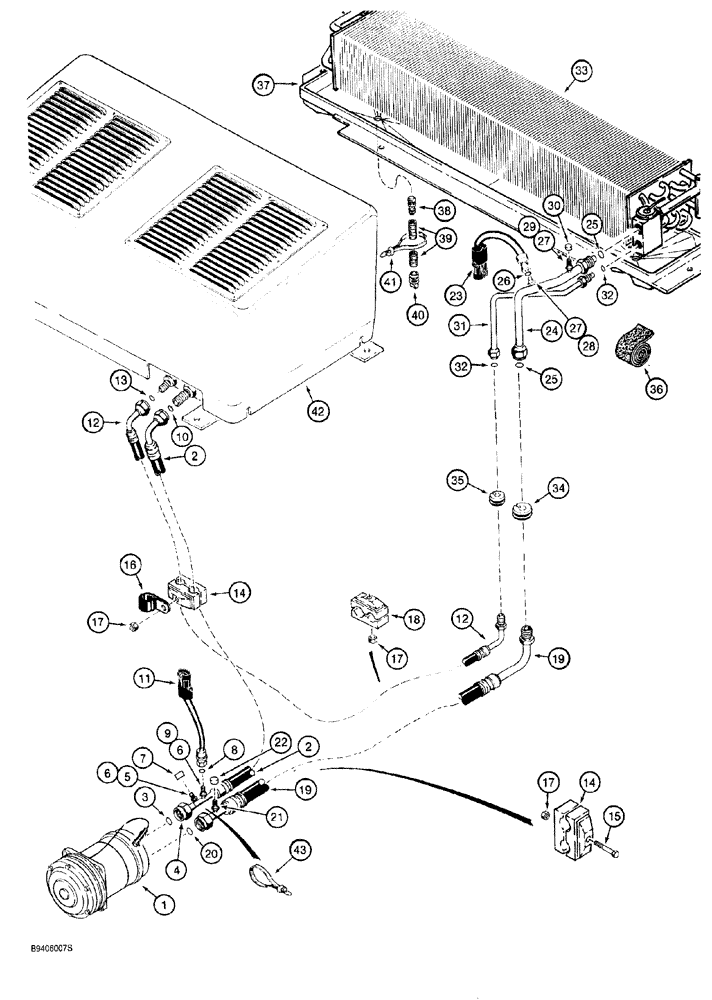

Схема запчастей Case 921 - (9-067A) - AIR CONDITIONING SYSTEM, COMPRESSOR TO CONDENSER AND EVAPORATOR CORE, P.I.N. JEE0040380 AND AFTER (09) - CHASSIS/ATTACHMENTS
5
32
43
36
31
2
17
28
25
6
10
21
7
20
34
23
8
17
3
18
14
22
37
33
42
15
41
9
12
1
12
27
35
11
24
6
17
40
16
25
39
19
26
27
30
38
4
13
2
32
29
14
19

Артикул

Название

Примечание

Количество

1

1990760C1

COMPRESSOR

ASSY., air conditioning, component parts not serviced separately, clutch repair kit shown on Figure 9-072

1шт.

86983967R

REMAN-COMPRESSOR,24V, W/ Clutch, W/ Pulley

921 LOADER AIR CONDITIONING SYSTEM, COMPRESSOR TO CONDENSER AND EVAPORATOR CORE, P.I.N. JEE0040380 AND AFTER, Reman for new P/N 1990760C1

1шт.

86983967C

CORE-COMPRESSOR

Return Number

1шт.

2

134458A1

HOSE ASSY.

62 inch (1575 mm) long, supply, compressor to condenser, Includes: Ref. 3 - 10

1шт.

3

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

14 ID x 1.78 mm wide, at compressor outlet port

1шт.

4

NSS

NOT SOLD SEPARAT

NUT special, compressor fitting

1шт.

5

NSS

NOT SOLD SEPARAT

FITTING special, high side charge port

1шт.

6

1250594C1

CORE

VALVE hose

2шт.

7

122554A1

CAP

Sealing, high side charge port

1шт.

8

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

7.65 ID x 1.78 mm wide

1шт.

9

NSS

NOT SOLD SEPARAT

FITTING special, pressure switch

1шт.

10

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

10.82 ID x 1.78 mm wide, at condenser inlet port

1шт.

11

1999925C1

INDICATOR

SWITCH high pressure, air conditioning

1шт.

12

1954642C2

HOSE

52-5/32 inch (1325 mm) long, return, condenser to evaporator core, Includes: Ref. 13

1шт.

13

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

Hose, at condenser

1шт.

14

L115095

CLAMP

double, includes both halves and metal top plate, lower clamp mounts to Ref. 47, L130040 bracket, Figure 3-006

2шт.

15

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

1шт.

16

49838

CLAMP

P-type, 1/2 inch ID, hose

1шт.

17

231-1445

NUT,5/16"-18, GB

3шт.

18

L126403

FIXING BRACKET

CLAMP includes both halves and metal top plates

1шт.

19

134459A1

HOSE ASSY.

61-1/4 inch (1555 mm) long, evaporator core to compressor inlet port, Includes: Ref. 20 - 22

1шт.

20

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

14 ID x 1.78 mm wide, at compressor inlet port

1шт.

21

1250594C1

CORE

VALVE hose

1шт.

22

122553A1

CAP

sealing, valve

1шт.

23

122579A1

SWITCH, A/C LOW PRES

Low

1шт.

24

133506A1

TUBE

TUBE cab suction, upper, Includes: Ref. 25 - 30

1шт.

25

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

14 ID x 1.78 mm wide

2шт.

26

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

7.65 ID x 1.78 mm wide

1шт.

27

1250594C1

CORE

VALVE hose

2шт.

28

NSS

NOT SOLD SEPARAT

FITTING special, pressure switch

1шт.

29

NSS

NOT SOLD SEPARAT

FITTING special, low side service port

1шт.

30

122553A1

CAP

sealing, low side service port

1шт.

31

97141C3

PIPE

TUBE lower, return, condenser to evaporator core, Includes: Ref. 32

1шт.

32

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

7.65 ID x 1.78 mm wide

2шт.

33

1990757C1

EVAPORATOR

ASSY., air conditioning and heater, see Figure 9-060

1шт.

34

248-2376

GROMMET,5/8" ID x 1 1/4" Groove Dia, Str Cut

Rubber, Upper tube

1шт.

35

248-2399

GROMMET,3/8" ID x 1" Groove Dia, Str Cut

Rubber, Lower tube

1шт.

36

83822C1

TAPE

24 inch (610 mm) long, cut from 1954475C1 bulk tape, rubber, insulation, see below, air conditioning core tubes, valve and hoses

5шт.

37

1339577C3

PAN

drip, condensation, see Figure 9-060 for seals and mounting

1шт.

38

1250522C3

FITTING

straight, special, drain, Serial Range: hose-housing

2шт.

39

106603A1

HOSE,13.00 mm ID x 1219.00 mm

Cut From 198091C1 Bulk Hose, See Below, Drain, From Condensation Pan

2шт.

40

109239C2

CHECK VALVE

2шт.

41

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP

4шт.

42

97182C6

CAPACITOR

CONDENSER ASSY., air conditioning, see Figure 9-071A

1шт.

43

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, pressure switch connectors

2шт.

1954475C1

ROLL

TAPE bulk, 2-1/2 (63.5) wide x 360 (9150) long x 1/8 inch (3 mm) thick

1шт.

198091C1

HOSE,12.95mm ID x 15240mm L

bulk, 1/2 (13) ID x 600 inch (15240 mm) long

1шт.

Выбрано товаров: 47
