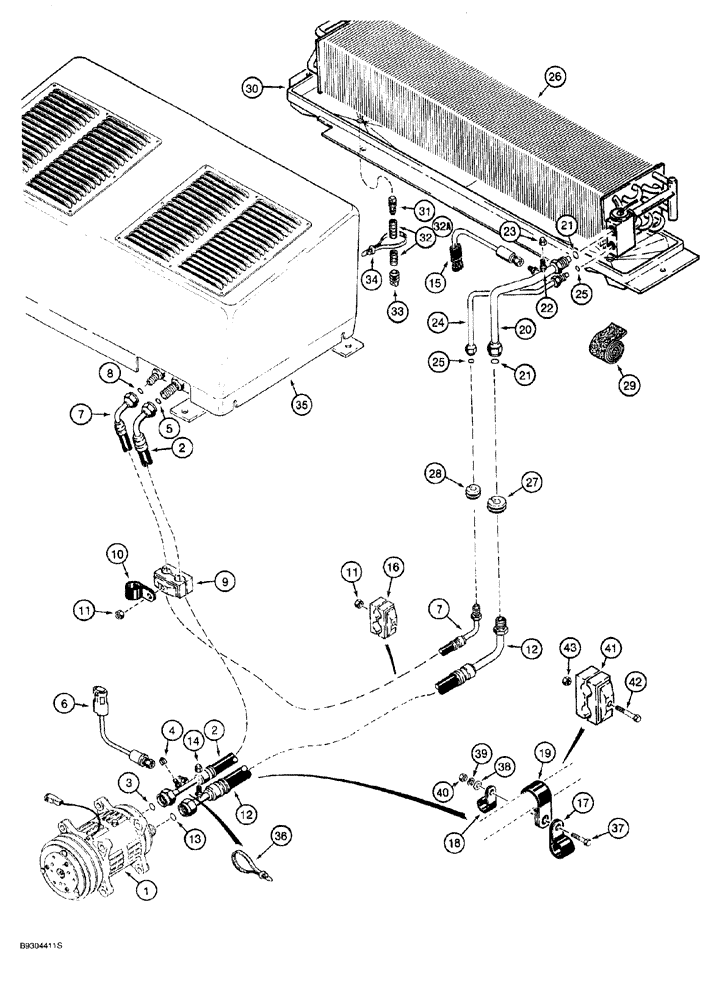

Запчасти Case 921 (9-064) - AIR CONDITIONING SYSTEM, COMPRESSOR TO CONDENSER AND EVAPORATOR CORE, PRIOR TO P.I.N. JEE0040380 (09) - CHASSIS/ATTACHMENTS

1

97179C2

COMPRESSOR

ASSY., air conditioning, see Figure 9-074

1шт.

2

1344493C1

HOSE ASSY.

66-9/16 inch (1690 mm) long, supply, compressor to condenser, Includes: Ref. 3 - 5

1шт.

3

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

At compressor outlet port

1шт.

4

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

hex, 7/16-20 inch female 45° flare, only 1 cap used

2шт.

5

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

At condenser

1шт.

6

92038C1

SWITCH, A/C HIGH PRE

SWITCH air conditioning, high pressure

1шт.

7

1954642C2

HOSE

52-5/32 inch (1325 mm) long, return, condenser to evaporator core, Replaces: 1954642C1, Includes: Ref. 8

1шт.

8

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

Hose, at condenser

1шт.

9

L115095

CLAMP

double, includes both halves and metal top plate

1шт.

10

49838

CLAMP

P-type, 1/2 inch ID, hose

1шт.

11

231-1445

NUT,5/16"-18, GB

2шт.

12

1344492C1

HOSE ASSY.

64-9/16 inch (1640 mm) long, evaporator core, to compressor inlet port, Includes: Ref. 13, 14

1шт.

13

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

Hose, at compressor

1шт.

14

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

hex, 7/16-20 inch female 45° flare, only 1 cap used

2шт.

15

92153C1

SWITCH

low pressure, attaches to engine harness

1шт.

16

L126403

FIXING BRACKET

CLAMP includes both halves and metal top plates, can be located either at the side or the bottom of the hydraulic tank

1шт.

17

R11405

CLAMP

P-type, 1 inch ID, right-hand hose

1шт.

18

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

P-type, LH hose

1шт.

19

515-25381

CLAMP,1 1/2", Insul, 1/2" Bolt

P-type, Used as support, air conditioning hose clamps to aspirator tube, Figure 2-004, used on models with Ref. 27, L128565, bracket, Figure 3-006

1шт.

20

97140C5

PIPE

TUBE pressure, evaporator core to compressor inlet hose, Includes: Ref. 21 - 23

1шт.

21

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

2шт.

22

1250594C1

CORE

VALVE hose

1шт.

23

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

hex, 7/16-20 inch female 45° flare

1шт.

24

97141C2

PIPE

TUBE return, condenser to evaporator core, Includes: Ref. 25

1шт.

25

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

2шт.

26

98369C3

RADIATOR

CORE ASSY., air conditioning and heater, see Figure 9-060

1шт.

27

248-2399

GROMMET,3/8" ID x 1" Groove Dia, Str Cut

Rubber, Upper tube, Replaces L124504

1шт.

28

248-2376

GROMMET,5/8" ID x 1 1/4" Groove Dia, Str Cut

Rubber, Lower tube, Replaces: F37765

1шт.

29

83822C1

TAPE

24 inch (610 mm) long, cut from 1954475C1 bulk tape, rubber, insulation, see below, air conditioning core tubes, valve and hoses

5шт.

30

1339577C3

PAN

drip, condensation, see Figure 9-060 for seals and mounting

1шт.

31

1250522C3

FITTING

straight, special, drain, Serial Range: hose-housing

2шт.

32

1977334C1

HOSE

24 inch (610 mm) long, cut from 198091C1 bulk hose, see below, drain, from condensation pan, if used

2шт.

32a

106603A1

HOSE,13.00 mm ID x 1219.00 mm

Cut From 198091C1 Bulk Hose, See Below, Drain, From Condensation Pan, If Used

2шт.

33

109239C2

CHECK VALVE

2шт.

34

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP

4шт.

35

97182C4

CAPACITOR

CONDENSER ASSY., air conditioning, see Figure 9-071A, no longer available, order 97182C6

1шт.

35

97182C6

CAPACITOR

CONDENSER ASSY., air conditioning, see Figure 9-071A, Replaces: 97182C4, 97182C5

1шт.

36

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, pressure switch connectors

2шт.

37

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch, if used

1шт.

38

495-11034

WASHER,5/16", SAE

(Flat, 11/32 x 11/16 x 1/16"), If used

1шт.

39

492-11031

LOCK WASHER,5/16"

If used

1шт.

40

425-105

NUT,5/16"-18, G5

If Used

1шт.

41

L115095

CLAMP

double, air conditioning hose, mounts to Ref. 47, L130040 bracket, Figure 3-006

1шт.

42

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

1шт.

43

231-1445

NUT,5/16"-18, GB

1шт.

1954475C1

ROLL

TAPE bulk, 2-1/2 (63.5) wide x 360 (9150) long x 1/8 inch (3 mm) thick

1шт.

198091C1

HOSE,12.95mm ID x 15240mm L

bulk, 1/2 (13) ID x 600 inch (15240 mm) long

1шт.
