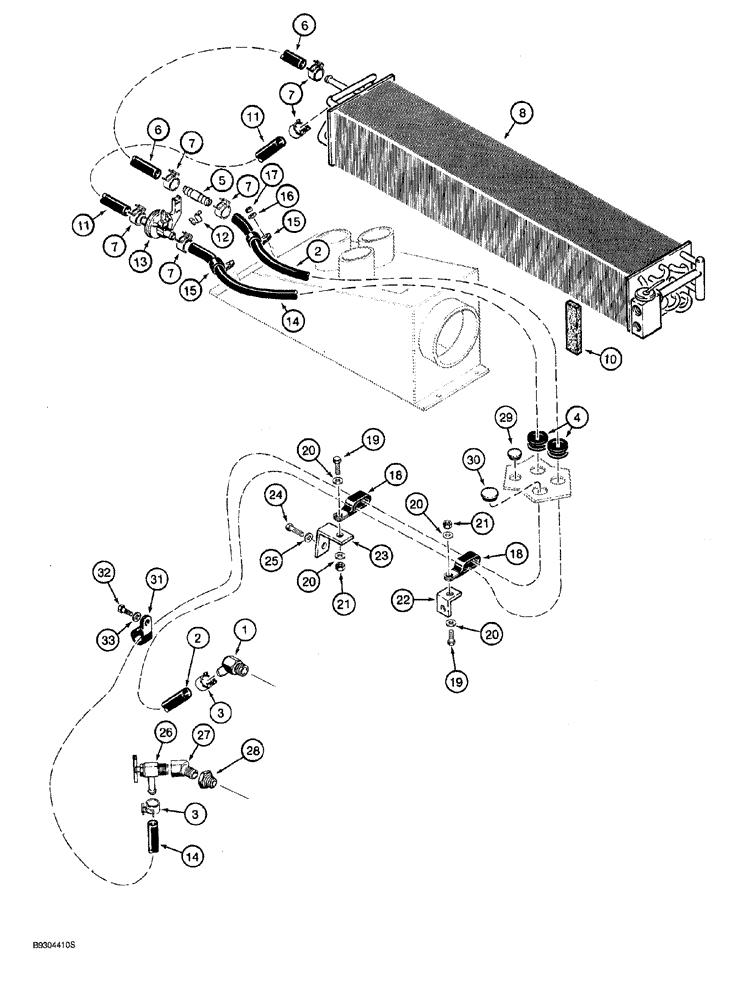

Запчасти Case 921 (9-062) - HEATING SYSTEM (09) - CHASSIS/ATTACHMENTS

1

217-144

45 ELBOW,45 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

1шт.

2

1327782C2

LARGE HOSE,15.50 mm ID x 3302.00 mm

HOSE,LARGE Cut from 97252CX bulk hose, Supply, See below

1шт.

3

1954736C1

HOSE CLAMP,#24

2шт.

4

L116914

GROMMET

heater hose

2шт.

5

1301342C1

FITTING

ADAPTER straight, special, heater hose

1шт.

6

1981958C1

HEATER HOSE,15.50 mm ID x 330.00 mm

Heater Supply

1шт.

7

1954736C1

HOSE CLAMP,#24

6шт.

8

98369C3

RADIATOR

CORE ASSY., air conditioning and heater, see Figure 9-060, Serial Range: -JEE0040380

1шт.

8

1990757C1

EVAPORATOR

ASSY., air conditioning and heater, see Figure 9-060, Start Serial: JEE0040380

1шт.

9

1331025C1

CORE

CORE heater, used on models with heater only, not shown

1шт.

10

1340075C2

SEAL

SEAL 1 (25) x 5-1/8 (130) x 1-1/2 inch (38 mm) thick, cut from 1999750C1 bulk seal, core ends, see below

4шт.

11

1977501C1

HEATER HOSE,15.50 mm ID x 610.00 mm

Return, At Core

1шт.

12

1954626C1

SPRING CLIP

CLIP retaining, heater cable

1шт.

13

1331087C1

HEATER VALVE

control, heater

1шт.

14

1974653C1

HEATER HOSE,15.50 mm ID x 3404.00 mm

Cut from 97252CX bulk hose, Heater Return, See below

1шт.

15

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type, Hose to plenum duct

2шт.

16

495-21031

WASHER,1/4"

flat, 5/16 x 3/4 x 1/16 inch

2шт.

17

425-104

NUT,1/4"-20, Cl 5

2шт.

18

L111928

CLAMP

double, hose

2шт.

19

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

20

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

4шт.

21

131-203

LOCK NUT,3/8"-16, GB, LH

light hex, self-locking, 3/8 inch NC

2шт.

22

L127754

SUPPORT

BRACKET mounting, right-hand, uses transmission torque converter hardware

1шт.

23

L129444

SUPPORT

BRACKET mounting, left-hand

1шт.

24

614-16025

BOLT,Hex, M16 x 2 x 25mm, Cl 8.8, Full Thd

Bolt, Hex, M16 x 25, 8.8, Full Thd

1шт.

25

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

Flat

1шт.

26

301803R1

SHUT-OFF VALVE

water

1шт.

27

217-1087

ELBOW,45 Degree, 3/8"-18 Female x 3/8"-18 Male

Street

1шт.

28

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

pipe, 1/2 male x 3/8 inch female

1шт.

29

353-411

PLUG,Dome, 1.000" hole, Nylon

Used on models with heating only

1шт.

30

192280

HOLE PLUG BUTTON,1 1/4"

1-1/4 inch ID, used on models with heating only

1шт.

31

D47782

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

hose

1шт.

32

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

33

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 21 x 2 mm

1шт.

97252CX

HOSE

bulk, 5/8 (16) x 1 (25) x 600 inch (15240 mm) long

1шт.

1999750C1

SEAL

bulk sheet, 1-1/2 (38) wide x 600 (15240) long x 1 inch (15 mm) thick

1шт.
