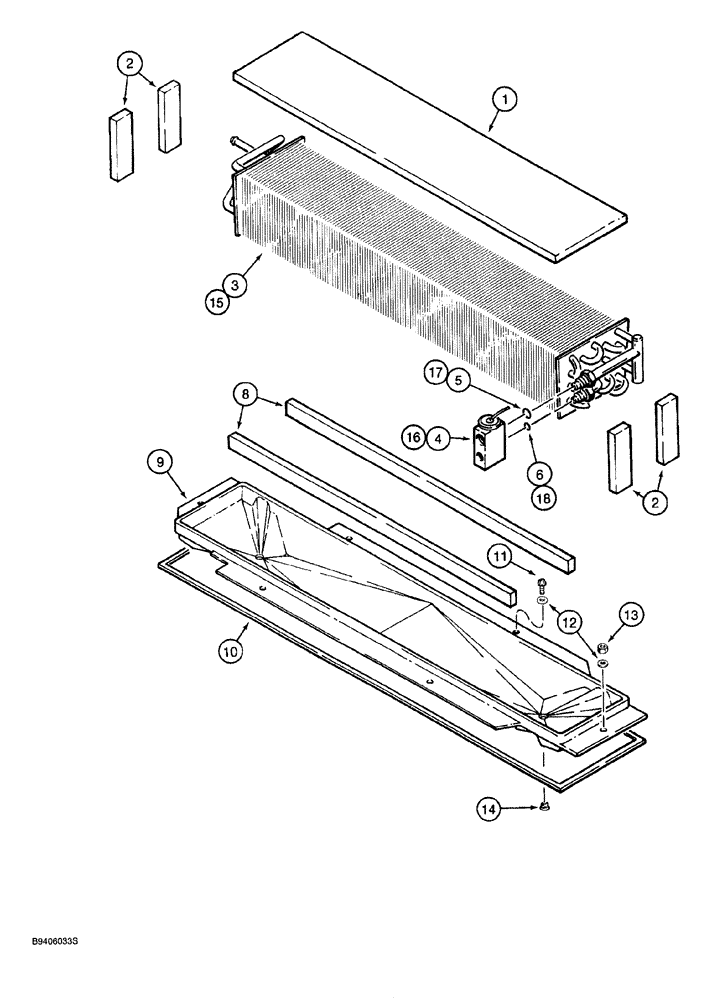

Запчасти Case 921 (9-060) - HEATING AND AIR CONDITIONING CORE (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
1276337C2
RUBBER INSULATOR
SEAL 10-1/2 (266) x 38-1/8 (970) x 1/2 inch (13 mm) thick, cut from 1327515C2 bulk seal, see below, core, upper
1шт.
2
1340075C2
SEAL
SEAL 1 (25) x 5-1/8 (130) x 1-1/2 inch (38 mm) thick, cut from 1999750C1 bulk seal, see below, core, end
4шт.
3
98369C3
RADIATOR
CORE ASSY., air conditioning and heater, Includes: Ref. 4 - 6, see Ref. 7 for core used on models with heater only, Serial Range: -JEE0040380
1шт.
4
98370C3
VALVE
expansion
1шт.
5
238-5015
O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro
1шт.
7
1331025C1
CORE
CORE heater, models with heater only, not shown
1шт.
8
98357C1
SEALING STRIP
1/2 (13) x 31-3/32 (790) x 1 inch (25 mm) thick, cut from 98390C1 seal, see below, attaches to bottom of drip pan
1шт.
9
1339577C3
PAN
drip, condensation
1шт.
10
1977907C1
SEAL
87-1/8 inch (2213 mm) long, cut from 187874C2 bulk seal, see below, attaches to floor under condensation pan
1шт.
11
281-18712
SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"
4шт.
12
495-21031
WASHER,1/4"
flat, 5/16 x 3/4 x 1/16 inch
6шт.
13
425-104
NUT,1/4"-20, Cl 5
2шт.
14
353-404
PLUG,Dome, .500" hole, Nylon
2шт.
15
1990757C1
EVAPORATOR
ASSY., air conditioning and heater, Includes: Ref. 16 - 18, see Ref. 7 for core used on models with heater only, Start Serial: JEE0040380
1шт.
16
1990756C1
VALVE
expansion
1шт.
17
128485A1
O-RING,1.78mm Thk x 14mm ID, 70 Duro
14 ID x 1.78 mm wide
1шт.
18
128484A1
O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro
10.82 ID x 1.78 mm wide
1шт.
1327515C2
INSULATOR
SEAL bulk sheet, 54 (1372) wide x 120 (3048) long x 1/2 inch (13 mm) thick
1шт.
1999750C1
SEAL
bulk sheet, 1-1/2 (38) wide x 600 (15240) long x 1 inch (15 mm) thick
1шт.
98390C1
SEALING STRIP
SEAL 1/2 inch (13 mm) wide x 37-7/16 (950 mm) long x 1 inch (25 mm) thick
1шт.
Выбрано товаров: 22
