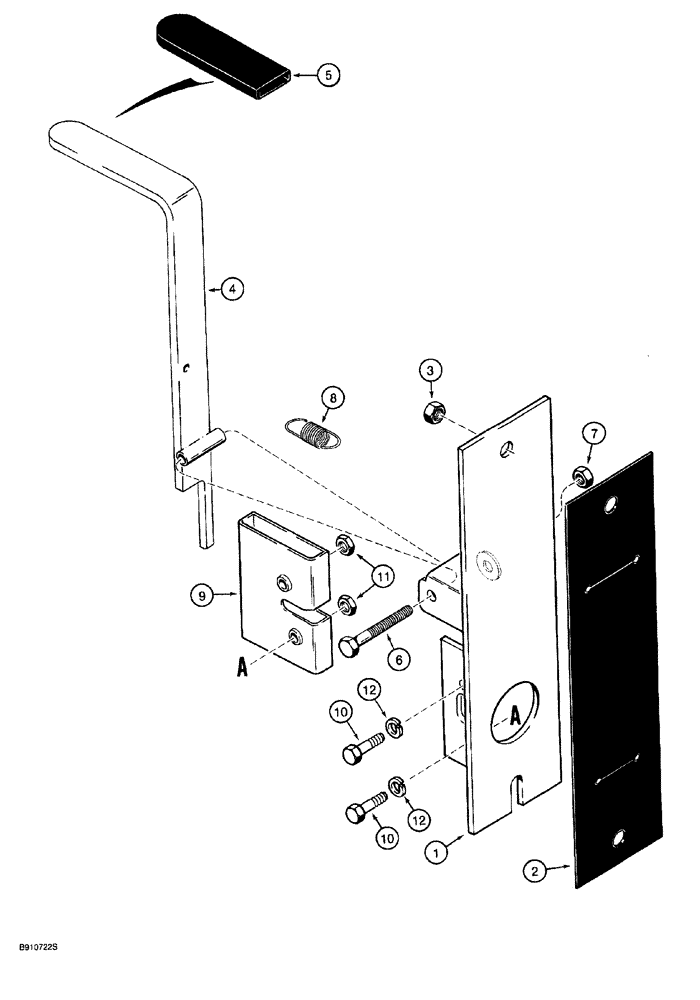

Запчасти Case 921 (9-056) - ROTARY WINDOW LOCK (09) - CHASSIS/ATTACHMENTS

1

1339604C2

SUPPORT

BRACKET lever mount

1шт.

2

1981892C1

SEAL

bracket

1шт.

3

425-106

NUT,3/8"-16, Cl 5

2шт.

4

1340189C1

HANDLE

release, open window retainer

1шт.

5

1339797C1

GRIP

release handle

1шт.

6

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1шт.

7

425-104

NUT,1/4"-20, Cl 5

1шт.

8

A163012

SPRING

return

1шт.

9

1340187C2

LATCH

CATCH female, open window retainer

1шт.

10

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

11

425-106

NUT,3/8"-16, Cl 5

If used

2шт.

12

492-11025

LOCK WASHER,1/4"

2шт.
