Запчасти Case 921 (9-054) - CAB DOOR WINDOW, WITH BOLT-ON HINGE (09) - CHASSIS/ATTACHMENTS

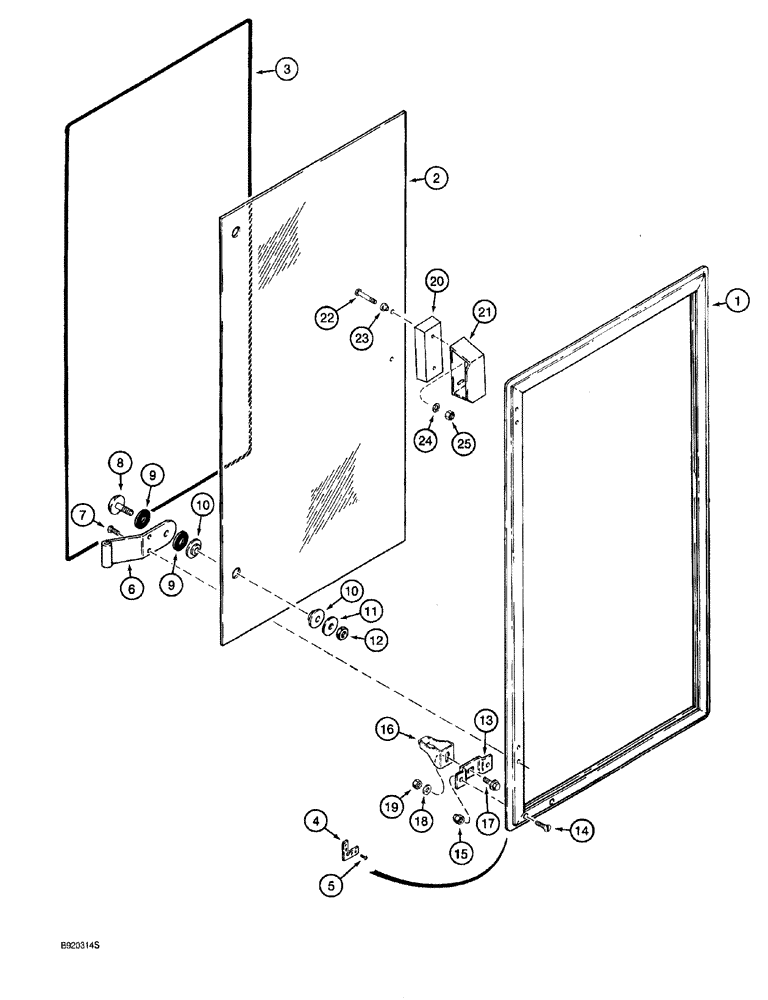

Схема запчастей Case 921 - (9-054) - CAB DOOR WINDOW, WITH BOLT-ON HINGE (09) - CHASSIS/ATTACHMENTS
14
19
7
23
18
10
2
21
9
6
3
24
5
25
15
13
8
16
20
11
4
10
12
1
17
22
9

Артикул

Название

Примечание

Количество

1344277C1

WINDOW ASSY

cab door, Includes: Ref. 1 - 5, no longer available, order 108195A1 shown on Figure 9-055A

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME window, cab door

1шт.

2

1989906C1

GLASS,CAB

window

1шт.

3

1977655C1

SEAL

120 inch (3048 mm) long

1шт.

4

1999981C1

KEY

ANGLE corner

4шт.

5

1999982C1

SCREW

special, No. 10 NF x 7/16 inch

16шт.

6

1339737C2

HINGE

window retaining

2шт.

7

1990973C2

SELF-TAP SCREW,Cross Pan Hd, #10-32 x 5/8"

pan head slotted, special, No. 10 NF x 5/8 inch

4шт.

8

1970077C1

BOLT

BOLT round head, special, 1/2 NF x 1 inch

2шт.

9

1970078C1

WASHER

SEAL rubber, 17/32 ID x 1-13/32 OD x 1/16 inch thick

4шт.

10

1970079C1

SEALING WASHER

SEAL glass bushing

4шт.

11

1970080C1

WASHER

flat, 17/32 x 1-13/32 x 3/32 inch

2шт.

12

1970081C1

NUT

hex, 1/2 inch NF

2шт.

13

1339736C1

SUPPORT

BRACKET mounting, window catch

1шт.

14

1999752C1

SELF-TAP SCREW,Sltd Flat Hd, 1/4"-20 x 7/8"

flat slotted head, special, 1/4 NC x 7/8 inch

2шт.

15

129-886

CROWN NUT,Crown, 1/4"-20

dome, 1/4 inch NC

2шт.

16

1981896C1

STOP

CATCH male, open window retainer

1шт.

17

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

18

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

1шт.

19

231-1446

NUT,3/8" - 16, Gr 5

1шт.

20

1340417C1

BLOCK ASSY.

BRACKET handle mounting

1шт.

21

97399C1

HANDLE

door window

1шт.

22

1990974C1

SELF-TAP SCREW

machine, oval Phillips, special, No. 10 NC x 1-3/4 inch

2шт.

23

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

Nylon, black, Serial Range: glass-bracket

2шт.

24

195-81029

WASHER,#10

(7/32 x 7/16 x 3/64")

2шт.

25

F45165

SPECIAL NUT,#10-24

hex, self-locking, special, No. 10 NC

2шт.

Выбрано товаров: 26
