Запчасти Case 921 (9-052) - CAB DOOR AND MOUNTING (09) - CHASSIS/ATTACHMENTS

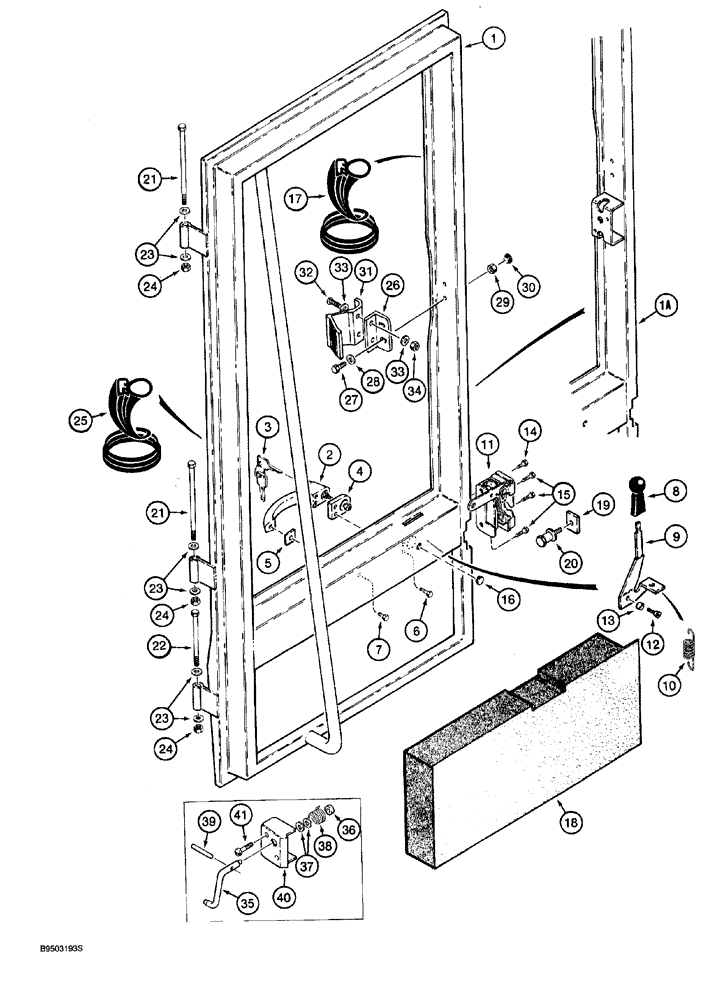

Схема запчастей Case 921 - (9-052) - CAB DOOR AND MOUNTING (09) - CHASSIS/ATTACHMENTS
32
39
37
27
4
5
22
24
1a
23
36
28
15
16
24
38
13
41
18
40
14
33
21
19
9
30
34
29
35
26
21
7
2
1
20
17
25
33
6
23
11
10
3
8
12
23
24
31

Артикул

Название

Примечание

Количество

1

1340450C3

DOOR

FRAME without window hold open latch, if used

1шт.

1a

115765A1

DOOR

FRAME with window hold open latch, used with Ref. 35 - 41, if used

1шт.

2

1339958C1

HANDLE

door, outer

1шт.

3

A77313

SET OF 2 KEYS

same as ignition key

1шт.

4

1969996C1

SUPPORT

SPACER handle, front

1шт.

5

1969997C1

SUPPORT

SPACER handle, rear

1шт.

6

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

7

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

1шт.

8

D135387

GRIP

KNOB lever, remote

1шт.

9

1969988C3

HANDLE

door, inner

1шт.

10

A163012

SPRING

handle, inner door

1шт.

11

1339959C1

LOCK ASSY

LATCH door striker

1шт.

12

61-33120

HEX SOC SCREW,5/16"-18 x 1 1/4"

hex socket, 5/16 NC x 1-1/4 inch

1шт.

13

1981767C1

SPACER

handle

1шт.

14

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

15

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

16

353-404

PLUG,Dome, .500" hole, Nylon

1шт.

17

1987254C1

DOOR SEAL

122 inch (3099 mm) long, window, door frame

1шт.

18

1339939C2

LINING

PAD interior cover, adhesive back, lower cab door

1шт.

19

1339560C1

LARGE PLATE

PLATE, LARGE striker

1шт.

20

R51754

STRIKER

STRIKER door latch

1шт.

21

413-6104

BOLT,Hex, 3/8" - 16 x 6-1/2", Gr 5

BOLT hex, 3/8 NC x 6-1/2 inch

2шт.

22

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

hex, 3/8 NC x 4-1/2 inch

1шт.

23

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

thrust, plastic, hinge

6шт.

24

131-203

LOCK NUT,3/8"-16, GB, LH

light hex, self-locking, 3/8 inch NC

3шт.

25

1987253C1

DOOR SEAL

165 inch (4191 mm) long, door

1шт.

26

1344258C1

ANGLE

BRACKET latch mounting

1шт.

27

113-66

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

28

195-81004

WASHER,0.31" ID x 0.75" OD x 0.07" Thk

flat, 5/16 x 3/4 x 1/16 inch

2шт.

29

231-1444

NUT,1/4"-20, GB

2шт.

30

353-251

PLUG,15/16"

button, 15/16 inch

2шт.

31

97398C1

LOCK ASSY

LATCH push-type, door window, plastic

1шт.

32

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

2шт.

33

195-81029

WASHER,#10

(7/32 x 7/16 x 3/64")

4шт.

34

F45165

SPECIAL NUT,#10-24

hex, self-locking, special, No. 10 NC

2шт.

35

113973A1

HANDLE

ROD latch, left-hand, if used

1шт.

36

117005A1

SPACER

spring, if used

1шт.

37

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16"), If used

2шт.

38

113974A1

SPRING

latch, left-hand, if used

1шт.

39

38-11028

LOCK PIN,5/32" x 1 3/4", Slotted

if used 5/32" x 1 3/4", Slotted

1шт.

40

116927A1

DOOR COVER

latch, left-hand, if used

1шт.

41

117067A1

SELF-TAP SCREW,Pan Hd, #10-24 x 3/4"

If used

2шт.

Выбрано товаров: 42
