Запчасти Case 921 (9-048) - CAB FILTERS, VENTS AND LOUVERS (09) - CHASSIS/ATTACHMENTS

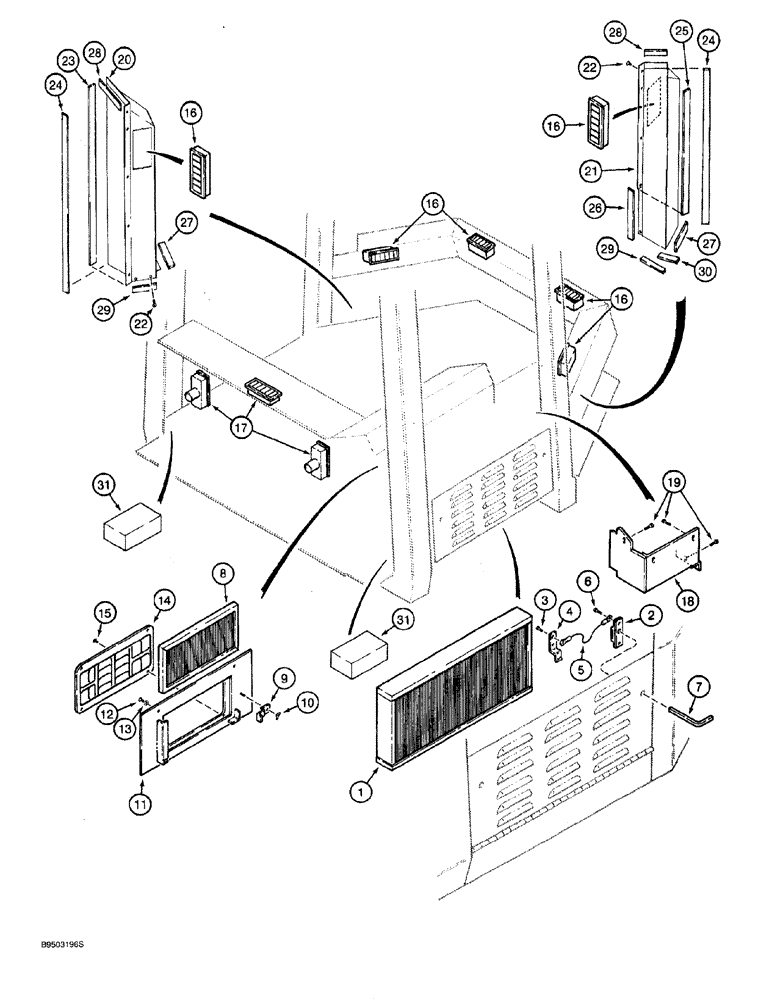

Схема запчастей Case 921 - (9-048) - CAB FILTERS, VENTS AND LOUVERS (09) - CHASSIS/ATTACHMENTS
7
17
21
3
29
19
28
31
11
10
20
13
27
27
9
22
24
23
14
22
16
12
4
29
8
28
6
31
26
16
16
1
16
2
30
5
18
25
15
24

Артикул

Название

Примечание

Количество

1

1970006C2

AIR CLEANER,Cab, 508mm L x 228.6mm W x 55.8mm Thk

Filter, Cab

1шт.

2

1339773C1

LOCK

LATCH filter door

2шт.

3

281-54712

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

Self tapping

4шт.

4

1339848C2

SUPPORT

CATCH filter door

2шт.

5

1339924C1

CABLE

filter door stop

1шт.

6

281-54712

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

Self tapping

4шт.

7

S115083

KEY

lock, access door

1шт.

The panel that this key goes through is 223667A1.

1шт.

8

1970098C1

FILTER

air, recirculating

1шт.

9

1977780C1

SUPPORT

BRACKET mounting, filter

1шт.

10

86627130

WING NUT,1/4"-20

1/4 inch NC

1шт.

11

1977783C2

SUPPORT

FRAME recirculation, filter and louver

1шт.

12

1276051C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1"

pan Phillips, special, 1/4 NC x 1 inch

2шт.

13

1990502C1

WASHER

flat, 17/64 x 13/16 x 5/64 inch

2шт.

14

1970073C1

ORIFICE RING

LOUVER air, recirculating

1шт.

15

265-18312

SELF-TAP SCREW,Cross Oval Hd, #6 x 3/4"

self-tapping, oval Phillips, No. 6-20 x 3/4 inch

4шт.

16

1990950C1

VENT

LOUVER bezel

6шт.

17

1971238C1

VENT

LOUVER cab, rear window

3шт.

18

1339900C5

PANEL

COVER seal, air recirculating

1шт.

19

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

4шт.

20

1344366C2

DUCT

VENT air, high rise, double louver, left-hand

1шт.

21

1344280C2

DUCT

VENT air, air high rise, double louver, right-hand

1шт.

22

143309C1

SELF-TAP SCREW,Cross Pan Hd, #10 - 16 x 1/2"

self-tapping, pan Phillips head, No. 10-16 x 1/2 inch

16шт.

23

1344322C1

SEAL

SEAL 21-11/16 inch (550 mm) long, cut from 195917C2 bulk seal, air vent

1шт.

24

1344323C1

SEAL

SEAL 21-1/4 inch (540 mm) long, cut from 195917C2 bulk seal, air vent

2шт.

25

1344324C1

SEAL

SEAL 13-3/4 inch (350 mm) long, cut from 195917C2 bulk seal, air vent

1шт.

26

1344325C1

SEAL

SEAL 6-11/16 inch (170 mm) long, cut from 195917C2 bulk seal, air vent

1шт.

27

1344326C1

SEAL

SEAL 3-3/4 inch (95 mm) long, cut from 195917C2 bulk seal, air vent

2шт.

28

1344327C1

SEAL

SEAL 3-3/8 inch (85 mm) long, cut from 195917C2 bulk seal, air vent

2шт.

29

1344328C1

SEAL

SEAL 2-3/8 inch (60 mm) long, cut from 195917C2 bulk seal, air vent

2шт.

30

1344329C1

SEAL

SEAL 2 inch (50 mm) long, cut from 195917C2 bulk seal, air vent

1шт.

31

1981764C1

FOAM

BLOCK 3 (75) x 2 (50) x 5 inch (125 mm), used on floor in rear corners of cab

2шт.

195917C2

SEAL

SEAL bulk, foam, adhesive backed, 600 inch (15240 mm) long

1шт.

Выбрано товаров: 33
