Запчасти Case 921 (9-044) - PEDESTAL AND COVERS (09) - CHASSIS/ATTACHMENTS

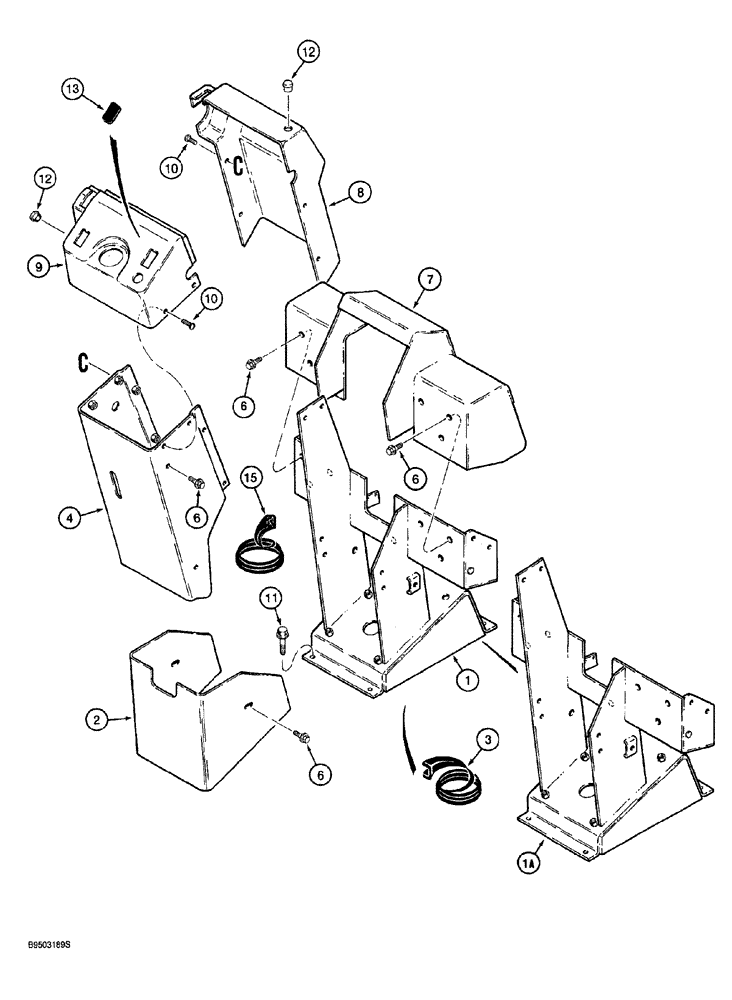

Схема запчастей Case 921 - (9-044) - PEDESTAL AND COVERS (09) - CHASSIS/ATTACHMENTS
6
7
2
8
6
4
13
3
15
9
6
10
10
11
1
12
6
1a
12

Артикул

Название

Примечание

Количество

1

1344296C4

PEDESTAL

BASE, used on models with cabs or canopies prior to P.I.N. JEE0041769 and all models with canopies

1шт.

1a

113656A1

PEDESTAL

BASE, used on models with cabs or canopies P.I.N. JEE0041769 and after

1шт.

2

1344318C2

COVER

pedestal, lower left-hand side

1шт.

3

1970021C1

GROMMET

pedestal

2шт.

4

1344080C4

COVER

pedestal, covers upper rear and right-hand and left-hand sides

1шт.

5

1327574C1

FLANGE BOLT,Hex Serr, 5/16" - 18 x 1/2", Gr 5

hex flange, polyseal, 5/16 NC x 1/2 inch

4шт.

6

100142A1

SELF-TAP SCREW,Hex Wshr Hd, 5/16" - 18 x 3/4", Gr 5

Special

6шт.

7

1344314C2

COVER

brake shaft

1шт.

8

1344379C1

COVER

pedestal, steering column, front

1шт.

9

1344380C1

COVER

steering column, rear, see Figure 4-004 for parking brake switch, warning lamp and transmission speed selector control

1шт.

10

1276117C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 3/4"

pan Phillips, special, 1/4 NC x 3/4 inch

8шт.

11

1327799C2

FLANGE BOLT,Hex, 3/8" - 16 x 1.25", Gr 5, Coated

BOLT hex washer head, special, 3/8 NC x 1-1/4 inch

4шт.

12

353-406

PLUG,Dome, .625" hole, Nylon

button, 5/8 inch, if used

2шт.

13

245918C1

LENS

PLUG rectangular, blanking, steering column cover, if used

1шт.

14

1321447C1

SELF-TAP SCREW,Cross Pan Hd, 1/4 -20 x 1/2" OAL

self-tapping, pan Phillips, 1/4 NC x 1/2 inch

4шт.

15

D38500

LINING

TRIM edge, 9-13/16 inch (249 mm) long, cut from F42827 bulk trim, see below

1шт.

F42827

TRIM,2946.4mm L

TRIM edge, bulk, 116 inch (2946 mm) long

1шт.

Выбрано товаров: 17
