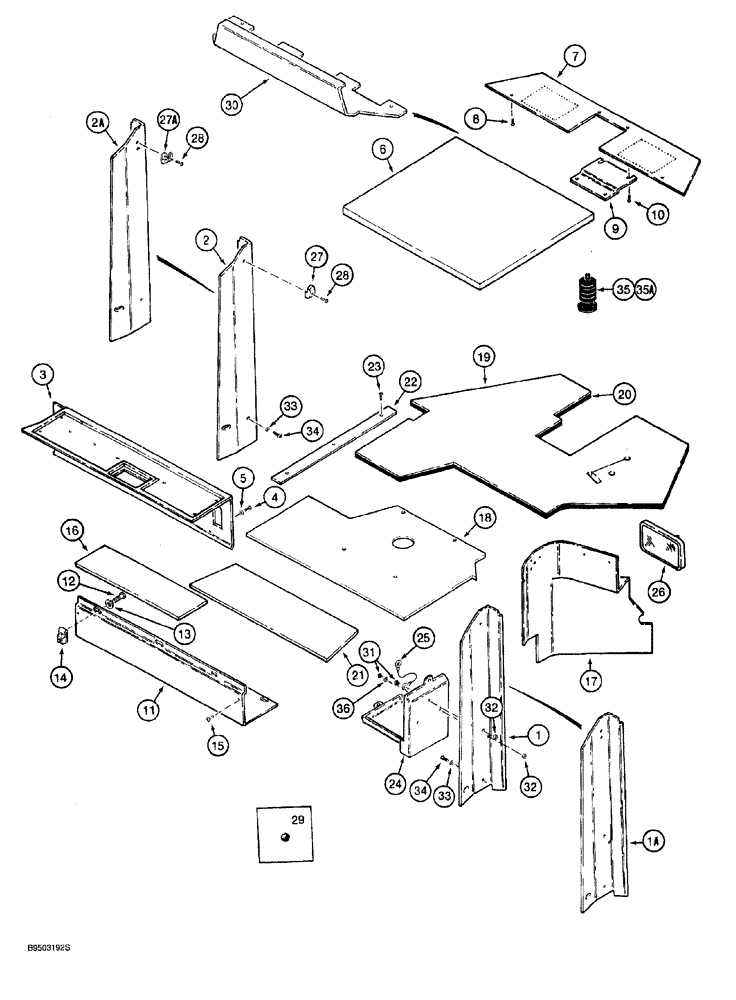

Запчасти Case 921 (9-042) - CAB INTERIOR (09) - CHASSIS/ATTACHMENTS

1

1977561C4

PADDING

COVER vinyl, right-hand rear, one mounting hole for Ref. 27

1шт.

1a

114919A1

COWL

COVER padded vinyl, right-hand rear, two mounting holes for Ref. 27A

1шт.

2

1977562C3

COVER

padded vinyl, left-hand rear, one mounting hole for Ref. 27

1шт.

2a

114920A1

COWL

COVER padded vinyl, left-hand rear, two mounting holes for Ref. 27A

1шт.

3

1999768C1

COVER

formed, rear deck

1шт.

4

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

self-tapping, special, No. 10-16 x 3/4 inch

9шт.

5

1990502C1

WASHER

flat, 17/64 x 13/16 x 5/64 inch

9шт.

6

1973533C2

PADDING

HEADLINER vinyl, center

1шт.

7

1339946C4

PADDING

HEADLINER vinyl, front

1шт.

8

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

self-tapping, special, No. 10-16 x 3/4 inch

2шт.

9

1339883C1

COVER

mounting, use on units without radio

1шт.

10

140-112

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

4шт.

11

1339895C4

COVER

rear enclosure, behind seat

1шт.

12

1276051C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1"

pan Phillips, special, 1/4 NC x 1 inch

3шт.

13

1990502C1

WASHER

flat, 17/64 x 13/16 x 5/64 inch

3шт.

14

131-143

SPRING NUT,Tinn, U, #10-24

3шт.

15

143309C1

SELF-TAP SCREW,Cross Pan Hd, #10 - 16 x 1/2"

self-tapping, pan Phillips head, No. 10-16 x 1/2 inch

2шт.

16

1339754C3

FOAM INSULATION

PAD insulation, rear panel

1шт.

17

1339941C3

PADDING

COVER vinyl, right-hand console

1шт.

18

1999639C1

CARPET

FLOORMAT seat support

1шт.

19

L129442

FLOOR MAT

cab

1шт.

20

L129443

PADDING

insulation, floormat

1шт.

21

1339755C4

NOISE PROTECTION

PAD insulation, rear floor

1шт.

22

1339790C1

COVER

seal channel

1шт.

23

140-112

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

3шт.

24

R46464

CASE

BOX operators manual

1шт.

25

D126821

CABLE

CORD manual retaining, Replaces: R46465

1шт.

26

A177462

MIRROR

rearview, includes mounting hardware, Replaces: L74714

1шт.

27

1339771C1

COAT HOOK

with one mounting hole, used with Ref. 1 or 2

2шт.

27a

114549A1

COAT HOOK

with two mounting holes, used with Ref. 1A or 2A

2шт.

28

261-13716

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1"

self-tapping, pan Phillips, 1/4 NC x 1 inch

2-4шт.

29

353-404

PLUG,Dome, .500" hole, Nylon

Upper RH panel above window

1шт.

29

353-409

PLUG,Dome, .812" hole, Nylon

button, cab floor, inside cab door

1шт.

29

353-411

PLUG,Dome, 1.000" hole, Nylon

Seat pedestal, LH side, If used

1шт.

30

1999753C1

PANEL

front insulation, fits in headliner area between Ref. 6 and 7

1шт.

31

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

Used with 225-14110

2шт.

31

1276051C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1"

pan Phillips, special, 1/4 NC x 1 inch, used with 495-11028

2шт.

32

225-14110

NUT,#10-24

If used

2шт.

33

1990502C1

WASHER

flat, 17/64 x 13/16 x 5/64 inch

2шт.

34

1276117C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 3/4"

pan Phillips, special, 1/4 NC x 3/4 inch

2шт.

35

1999521C1

BOOT

rubber, accelerator pedal rod, 1-1/8 ID x 2-3/8 inch OD at base, Serial Range: -JEE0041769

1шт.

35a

113833A1

BOOT

rubber, accelerator pedal rod, 1-9/16 ID x 2-3/4 inch OD at base, Start Serial: JEE0041769

1шт.

36

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

2шт.

R46463

SCREW,0.18" x 0.75"

manual retention, two-piece

1шт.
