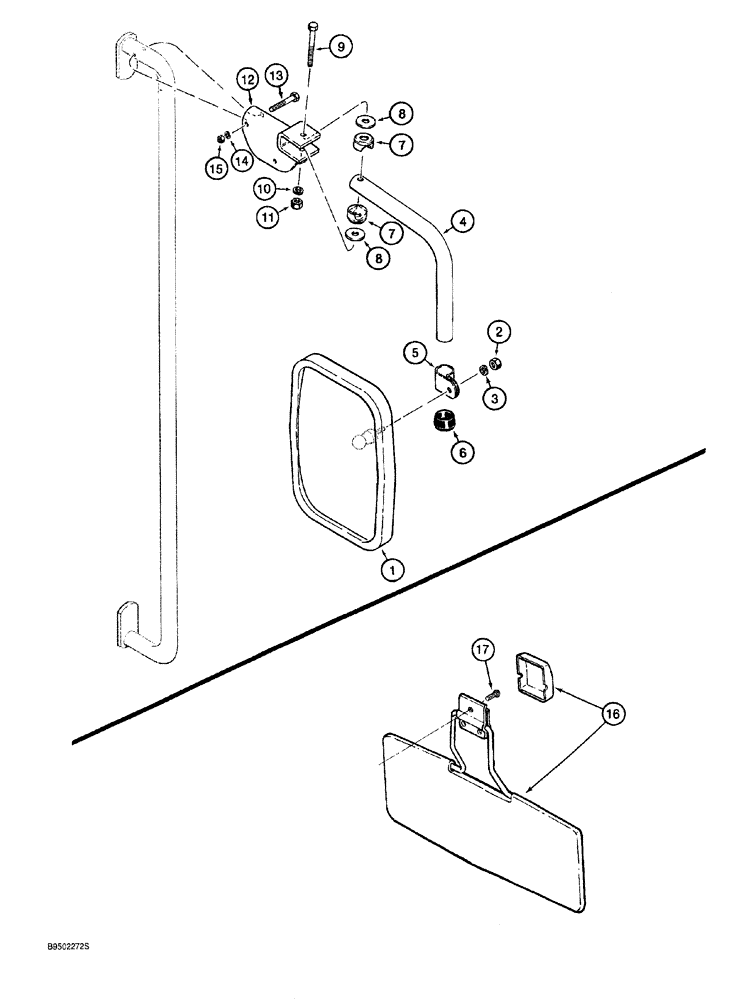

Запчасти Case 921 (9-040) - OUTER MIRROR AND SUNVISOR (09) - CHASSIS/ATTACHMENTS

1

1283403C1

MIRROR

rearview, right-hand

2шт.

2

825-1410

NUT,M10, Cl 8

2шт.

3

892-11010

LOCK WASHER,M10

2шт.

4

1977805C1

ARM

mirror mounting

2шт.

5

1977834C1

MOUNTING CLIP

CLAMP mirror

2шт.

6

1977833C1

CAP

plug

2шт.

7

1977831C1

MOUNTING CLIP

CLAMP mirror

4шт.

8

1977832C1

WASHER

brass, special

4шт.

9

113-2267

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

10

192-81003

LOCK WASHER,3/8"

2шт.

11

129-191

NUT,7/16"-14, G5

2шт.

12

1977802C1

SUPPORT

BRACKET mirror mounting

2шт.

13

113-70

BOLT,Hex, 1/4" - 20 x 2", Gr 5

4шт.

14

192-81007

LOCK WASHER,1/4"

4шт.

15

129-119

NUT,1/4"-20, G5

4шт.

16

E47027

VISOR, SUN

shade

1шт.

17

99997C1

SELF-TAP SCREW,Cross Pan Hd, #10-24 x 3/4"

pan head, No. 10 NC x 3/4 inch

3шт.
