Запчасти Case 921 (9-038) - CAB MOUNTING AND GLASS (09) - CHASSIS/ATTACHMENTS

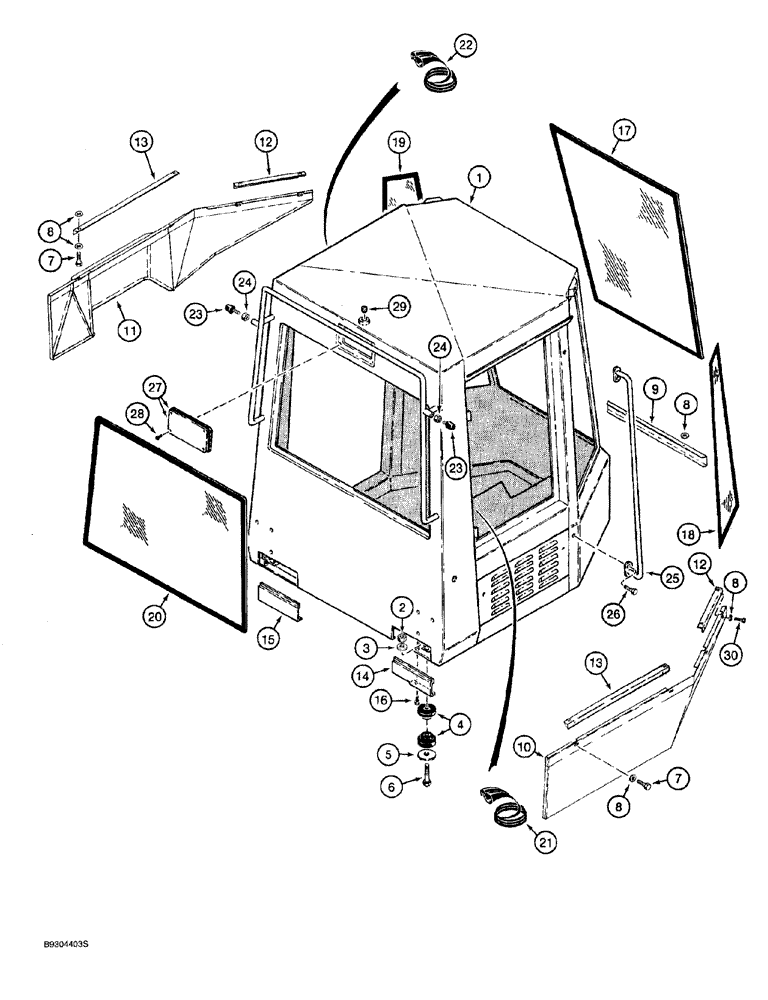

Схема запчастей Case 921 - (9-038) - CAB MOUNTING AND GLASS (09) - CHASSIS/ATTACHMENTS
24
8
14
4
7
28
15
13
30
23
27
16
22
21
10
12
2
9
5
3
20
29
6
8
1
23
25
26
24
8
8
17
19
18
12
11
13
7

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

CAB ASSY., ROPS, machinery item, order from Machinery Price List

1шт.

1a

197811A1

CAB

ASSY., shell, includes all glass, doors, window frames and latches with hold opens, left-hand and right-hand grab handles, dome lamp fixture, front wiper motor and center headliner, service replacement, not shown

1шт.

2

329-1014

NUT,7/8"-9, G8

4шт.

3

27914R1

WASHER,15/16" x 2 1/4" x .219", HDN

flat, hardened, 15/16 x 1-3/4 x 7/32 inch

4шт.

4

R54331

HITCH DAMPER

MOUNT rubber, cab support

8шт.

5

1332154C1

WASHER,23mm ID x 95.3mm OD x 12.7mm Thk

spacer, special, cab mounting

4шт.

6

326-1488

BOLT,Hex, 7/8" - 9 x 5-1/2", Gr 8

4шт.

7

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

14шт.

8

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

22шт.

9

L129571

ANGLE BAR

PANEL center, lower

1шт.

10

L129870

COVER

lower right-hand

1шт.

11

104733A1

GUARD ASSY.

COVER lower left-hand, Replaces: L129573

1шт.

12

L129563

ANGLE BAR

BRACKET cover mounting, front

2шт.

13

L129561

ANGLE BAR

BRACKET cover mounting, rear

2шт.

14

1977687C3

COVER

rear, mounting access, right-hand

1шт.

15

1339928C2

COVER

rear, mounting access, left-hand

1шт.

16

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

17

1340422C2

WINDSHIELD

GLASS front, center, used on models with cabs prior to P.I.N. JEE0041769

1шт.

For models with cabs P.I.N. JEE0041769 and after, order windshield glass, tape and sealant from the 921B Parts Catalog, Bur 8-9660.

1шт.

18

1340423C2

GLASS,CAB

front, right hand side, used on models with cabs prior to P.I.N. JEE0041769

1шт.

For models with cabs P.I.N. JEE0041769 and after, order windshield glass, tape and sealant from the 921B Parts Catalog, Bur 8-9660.

1шт.

19

1340421C2

GLASS,CAB

front, left hand side, used on models with cabs prior to P.I.N. JEE0041769

1шт.

For models with cabs P.I.N. JEE0041769 and after, order windshield glass, tape and sealant from the 921B Parts Catalog, Bur 8-9660.

1шт.

20

1340425C1

GLASS,CAB

rear

1шт.

21

1344165C1

SEAL

138-3/16 inch (3510 mm) long, window, cab, right-hand

1шт.

22

1987253C1

DOOR SEAL

165 inch (4191 mm) long, door, cab, left-hand

1шт.

23

N7673

BUMPER

BUMPER

2шт.

24

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

25

1339767C2

HANDLE

RAIL front

2шт.

26

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

27

1345260C1

PLATE

COVER rear wiper mounting hole, includes seal, use on units without rear wipers, Replaces: 1344260C1

1шт.

28

1276051C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1"

pan Phillips, special, 1/4 NC x 1 inch

4шт.

29

221-846

PLUG,Hex Soc, 1"-11 1/2

hex socket, 1 inch PT

1шт.

30

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

hex, 5/16 NC x 1/2 inch

4шт.

Выбрано товаров: 34
