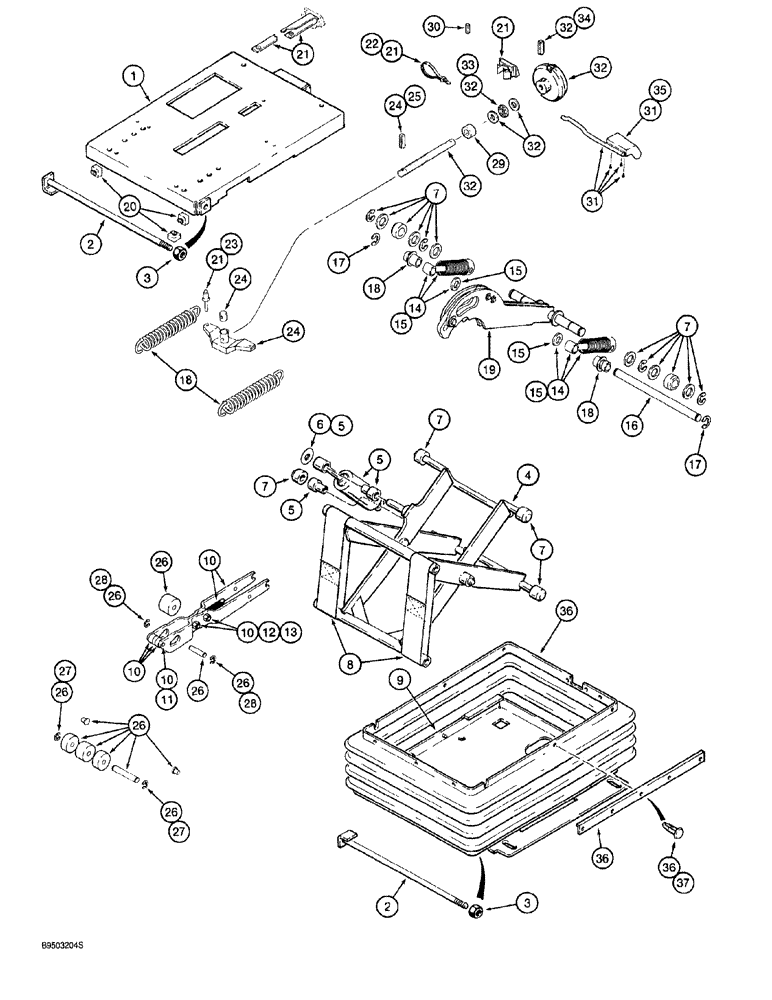

Запчасти Case 921 (9-036) - SUSPENSION SEATS (09) - CHASSIS/ATTACHMENTS

1546700C3

SEAT ASSY.

suspension, vinyl, complete, includes seat and suspension, Includes: Ref. 1 - 37 and parts on Figure 9-034

1шт.

1999448C3

SEAT ASSY.

suspension, cloth, complete, includes seat and suspension, Includes: Ref. 1 - 37 and parts on Figure 9-034

1шт.

1999739C1

SEAT SUPPORT

KIT suspension, heavy duty, Includes: Ref. 1 - 35

1шт.

1

124133A1

FRAME

HOUSING upper suspension

1шт.

2

124135A1

SHAFT

Bearing

2шт.

3

230-4216

LOCK NUT,3/8"-16, GA

Special

2шт.

4

124130A1

ARM

suspension

1шт.

5

1999737C1

SHOCK ABSORBER

KIT includes two bearings and push nut

1шт.

6

131-425

PUSH-ON NUT,Push, 1/2"

3шт.

7

124145A1

KIT

KIT roller and tube bearing

1шт.

8

124134A1

BELT

Tether

2шт.

9

124132A1

FRAME

HOUSING lower suspension

1шт.

10

124137A1

SLIDE

LINK ASSY., actuator, includes spring, rollers and hardware which is not serviced separately, to service bolt, nut and dowel pin, see Ref. 11 - 13

1шт.

11

37-1420

DOWEL,1/4" x 1 1/4"

dowel, hardened, 1/4 x 1-1/4 inch

1шт.

12

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT carriage, 1/4 NC x 3/4 inch

2шт.

13

231-1444

NUT,1/4"-20, GB

2шт.

14

124143A1

SET OF PARTS

KIT height adjustment spring

1шт.

15

124140A1

SPACER

bushing, spring guide

2шт.

16

124139A1

SHAFT

Spring

1шт.

17

NSS

NOT SOLD SEPARAT

E-RING shaft retainer

2шт.

18

124144A1

SET OF PARTS

KIT suspension spring, includes two bushings

1шт.

19

124138A1

CAM

ARM, includes hardware

1шт.

20

124136A1

STOP

BUMPER rubber, mounts to upper housing

3шт.

21

124147A1

SET OF PARTS

KIT weight adjustment guide, includes guide, tape, rivet and tie, to service tie and rivet, see Ref. 22, 23

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie

1шт.

23

151-507

RIVET,Pop, 1/8" x .575"

break mandrel, 1/8 x 1/2 inch

1шт.

24

124148A1

SET OF PARTS

KIT spring adjusting bar, to service roll pin, see Ref. 25

1шт.

25

38-21010

PIN,3.96mm OD x 15.88mm L, Coiled

1шт.

26

124142A1

SET OF PARTS

KIT cam follower, to service E-rings, see Ref. 27, 28

1шт.

27

100-3331

SNAP RING,#X31, .243" Dia, E-Type

2шт.

28

100-3337

SNAP RING,E-Type, 0.3" OD

2шт.

29

NSS

NOT SOLD SEPARAT

SPACER weight adjustment

1шт.

30

NSS

NOT SOLD SEPARAT

KEY lock

1шт.

31

124141A1

LEVER

KIT height adjusting arm, includes rod, upper and lower knobs and screws, to service knobs only order 1999738C1, Ref. 35

1шт.

32

124149A1

KIT

KIT weight adjusting knob, to service bearing and roll pin, see Ref. 33, 34

1шт.

33

F13537

THRUST BEARING

thrust

1шт.

34

38-31016

PIN,5/32" x 1", Coiled

1шт.

35

1999738C1

LEVER

KIT suspension knobs, upper and lower height adjusting knobs

1шт.

36

1999736C1

BELLOWS

BOOT ASSY., suspension, includes canoe clips, Ref. 37

1шт.

37

1999783C1

KIT

CLIP canoe, bag of 32

1шт.
