Запчасти Case 921 (9-034) - SUSPENSION SEATS (09) - CHASSIS/ATTACHMENTS

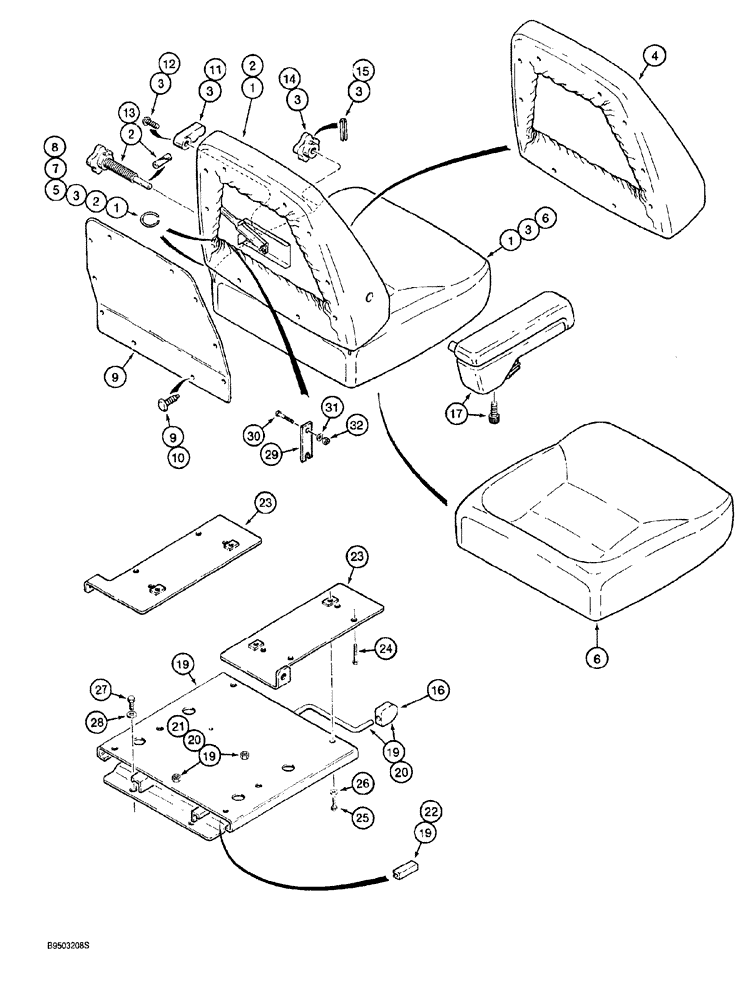

Схема запчастей Case 921 - (9-034) - SUSPENSION SEATS (09) - CHASSIS/ATTACHMENTS
12
21
29
19
4
5
20
19
3
3
1
11
24
9
8
19
20
10
25
6
31
32
22
3
14
28
3
2
2
23
15
3
13
23
2
7
30
1
9
16
27
1
6
3
17
19
26

Артикул

Название

Примечание

Количество

1546700C3

SEAT ASSY.

suspension, vinyl, complete, includes seat and suspension, Includes: Ref. 1 - 32 and parts on Figure 9-036

1шт.

1999448C3

SEAT ASSY.

suspension, cloth, complete, includes seat and suspension, Includes: Ref. 1 - 32 and parts on Figure 9-036

1шт.

1

1999733C2

SEAT ASSY.

KIT seat cushion and backrest, without suspension, vinyl

1шт.

1

1999730C2

SEAT ASSY.

KIT seat cushion and backrest, without suspension, cloth

1шт.

2

131857A1

FRAME

KIT backrest, vinyl, complete with lumbar knob, without armrest

1шт.

2

128888A2

FRAME

KIT backrest, cloth, complete with lumbar knob, without armrest

1шт.

3

131162A1

FRAME ASSY

KIT seat cushion, vinyl, complete with seat and back tilt knobs

1шт.

3

130666A2

FRAME

KIT seat cushion, cloth, complete with seat and back tilt knobs

1шт.

1999735C1

CUSHION

KIT backrest pad only, vinyl

1шт.

1999732C2

CUSHION

KIT backrest pad only, cloth, Includes: Ref. 4, 5

1шт.

4

NSS

NOT SOLD SEPARAT

PAD backrest

1шт.

5

NSS

NOT SOLD SEPARAT

RING fastener

25шт.

1999734C1

CUSHION

KIT seat cushion pad only, vinyl

1шт.

1999731C2

CUSHION

KIT seat cushion pad only, cloth, Includes: Ref. 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

PAD seat cushion

1шт.

7

NSS

NOT SOLD SEPARAT

RING fastener

1шт.

8

176091A1

PACKAGE,SERVICE

KIT retaining, hog ring, package of 50

2шт.

9

1974713C2

PACKAGE

KIT backrest cover and retainers

1шт.

10

1999693C1

KIT

CLIP Christmas tree, package of 14

1шт.

1999691C1

PACKAGE,SERVICE

KIT seat knob, Includes: Ref. 11 - 16

1шт.

11

NSS

NOT SOLD SEPARAT

HANDLE recliner and back tilt cover knob, two-piece

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW special

1шт.

13

NSS

NOT SOLD SEPARAT

KNOB lumbar adjustment

1шт.

14

NSS

NOT SOLD SEPARAT

KNOB seat cushion tilt

1шт.

15

NSS

NOT SOLD SEPARAT

PIN roll

2шт.

16

NSS

NOT SOLD SEPARAT

KNOB slide, fore/aft

1шт.

17

1999771C1

ARMREST ASSY.

seat, right-hand, adjustable

1шт.

18

1999770C1

ARMREST ASSY.

seat, left-hand, adjustable, not shown

1шт.

19

1999784C1

SLIDE

KIT seat assembly, heavy duty, complete

1шт.

20

1999960C1

KIT

slide latch, service, includes slide lever, knob, spring and hardware

1шт.

21

230-4216

LOCK NUT,3/8"-16, GA

2шт.

22

1999782C1

BLOCK

KIT slider, package of 4

1шт.

23

NSS

NOT SOLD SEPARAT

PLATE adapter

2шт.

24

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

25

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

26

495-81112

WASHER,.344" x 3/4" x .120"

flat, 11/32 x 3/4 x 7/64 inch

4шт.

27

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

28

495-81127

WASHER,0.39" ID x 0.75" OD x 0.07" Thk

flat, 25/64 x 3/4 x 1/16 inch

4шт.

29

141566A1

LARGE PLATE

PLATE, LARGE reinforcement, seat frame to backrest frame, left-hand

1шт.

30

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

31

495-11034

WASHER,5/16", SAE

(Flat, 11/32 x 11/16 x 1/16")

2шт.

32

231-1445

NUT,5/16"-18, GB

2шт.
