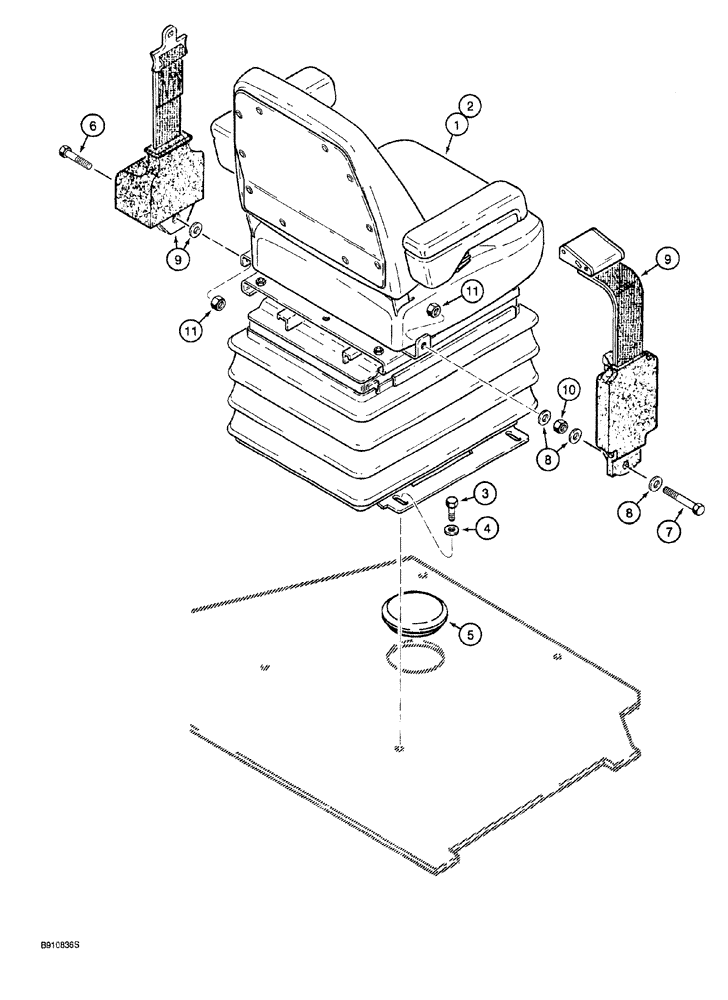

Запчасти Case 921 (9-032) - SEAT, MOUNTING PARTS AND SEAT BELT (09) - CHASSIS/ATTACHMENTS

1

1546700C3

SEAT ASSY.

suspension, vinyl, brown, mounting, Replaces: 1546700C2, see Figures 9-034, 9-036

1шт.

2

1999448C3

SEAT ASSY.

suspension, cloth, brown, mounting, Replaces: 1999448C2, see Figures 9-034, 9-036

1шт.

3

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

Seat mounting

4шт.

4

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

Seat mounting

4шт.

5

353-255

PLUG,3 1/2"

button, 3-1/2 inch, seat mounting

1шт.

6

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

3 inch (76 mm) wide seat belt and mounting parts

1шт.

7

414-728

BOLT,Hex, 7/16" - 20 x 1-3/4", Gr 5

BOLT hex, 7/16 NF x 1-3/4 inch, 3 inch (76 mm) wide seat belt and mounting parts

1шт.

8

495-21050

WASHER,7/16"

(Flat, 1/2 x 1-1/4 x 5/64"), 3 inch (76 mm) wide seat belt and mounting parts

3шт.

9

R58418

SAFETY BELT ,3.00" W

Retractable, Includes one washer and mounting parts

1шт.

10

425-107

NUT,7/16"-14, G5

3 inch (76 mm) wide seat belt and mounting parts

1шт.

11

231-4217

LOCK NUT,7/16"-14, GB

hex, self-locking, 7/16 inch NC, 3 inch (76 mm) wide seat belt and mounting parts

2шт.
