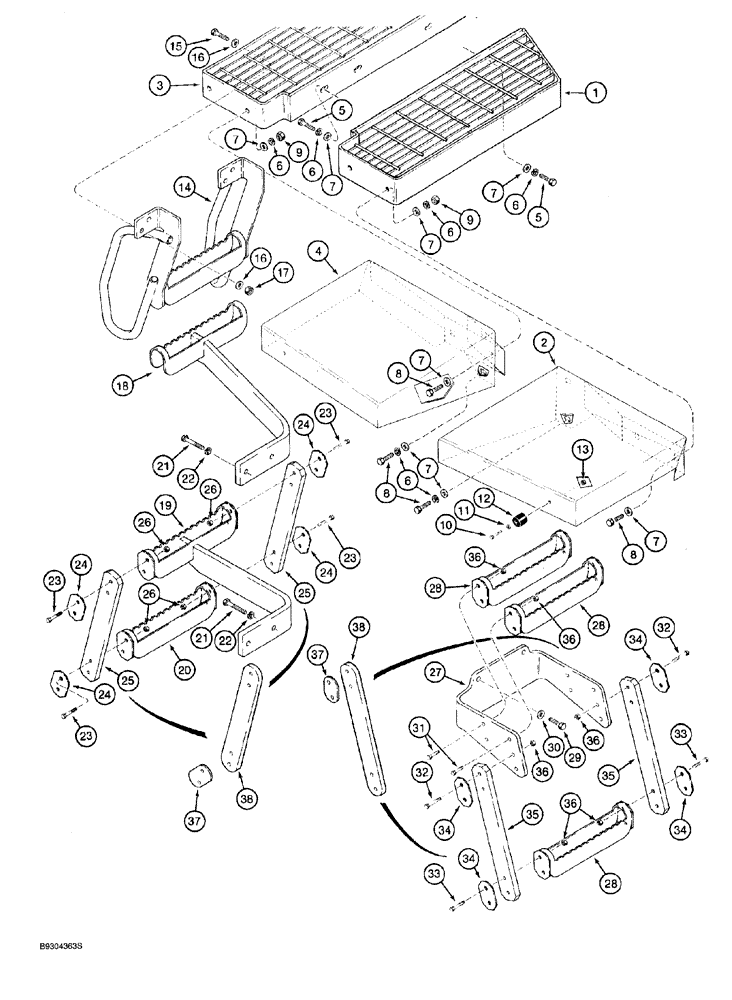

Запчасти Case 921 (9-028) - REAR FENDERS AND STEPS (09) - CHASSIS/ATTACHMENTS

1

L126892

GRATING

STEP platform, right-hand, operator's compartment

1шт.

2

L128831

FENDER

rear, right-hand

1шт.

3

L128365

STEP

platform, left-hand, operator's compartment

1шт.

4

L128832

FENDER

rear, left-hand

1шт.

5

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

6шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

14шт.

7

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

18шт.

8

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

9

425-108

NUT,1/2" - 13, Gr 5

4шт.

10

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

11

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

2шт.

12

L126483

BUMPER

rubber, door stop

2шт.

13

131-461

LOCK NUT,1/4"-20

Heavy hex

2шт.

14

L128383

STEP

top, with handrail

1шт.

15

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

4шт.

16

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

8шт.

17

231-1448

NUT,1/2"-13, GB

hex, self-locking, NC

4шт.

18

L128368

STEP

middle, rear frame

1шт.

19

L128367

STEP

lower, rear frame

1шт.

20

135822A1

STEP

bottom, rear frame, Replaces: L128543

1шт.

21

426-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8

4шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

23

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

8шт.

24

L119133

LARGE PLATE

PLATE, LARGE support, strap end, no longer available, order Ref. 37, 108753A1

4шт.

25

L126918

SUPPORT

STRAP step hanger, no longer available, order Ref. 38, 108751A1

2шт.

26

231-1446

NUT,3/8" - 16, Gr 5

8шт.

27

L130051

SUPPORT

BRACKET rear step

1шт.

28

135822A1

STEP

rear, upper and lower

3шт.

29

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

2шт.

30

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

2шт.

31

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

6шт.

32

326-632

BOLT,Hex, 3/8" - 16 x 2", Gr 8

4шт.

33

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

4шт.

34

L119133

LARGE PLATE

PLATE, LARGE support, strap end, no longer available, order Ref. 37, 108753A1

4шт.

35

L126918

SUPPORT

STRAP step hanger, no longer available, order Ref, 38, 108751A1

2шт.

36

231-1446

NUT,3/8" - 16, Gr 5

14шт.

37

108753A1

LARGE PLATE

PLATE, LARGE support, strap end

8шт.

38

108751A1

SUPPORT

STRAP step hanger

4шт.
